Views: 0 Author: Site Editor Publish Time: 2026-05-12 Origin: Site
Industrial fluid processing relies entirely on continuous operation. Plant managers and process engineers frequently face premature equipment failure. Inefficient blending often stems from mis-specified mixing equipment. Unexpected downtime destroys your production schedules and causes massive delays. Selecting reliable machinery requires moving beyond basic specifications. You must understand how individual parts impact process efficiency and maintenance intervals. Overlooking minor mechanical details easily leads to major operational headaches. We will deconstruct the core anatomy of a top entry mixer in detail. This engineering-focused evaluation framework helps buyers thoroughly assess component quality. It mitigates implementation risks and streamlines procurement decisions across your facility. You will learn exactly how to match specific drive units, shafts, and impellers to your unique fluid dynamics. Understanding these components ensures smoother operations, improves product quality, and extends overall equipment lifespan.
The longevity of a top entry mixer is largely dictated by the drive assembly's torque capacity and the gearbox's service factor.
Shaft design must account for critical speed and deflection limits to prevent catastrophic mechanical failures in high-viscosity applications.
Impeller selection (axial vs. radial) should strictly align with fluid rheology, tank geometry, and the desired process outcome (e.g., blending, solid suspension, gas dispersion).
Evaluating component availability, modularity, and adherence to industry standards (ASME, ATEX, FDA) is critical for long-term scalability and compliance.

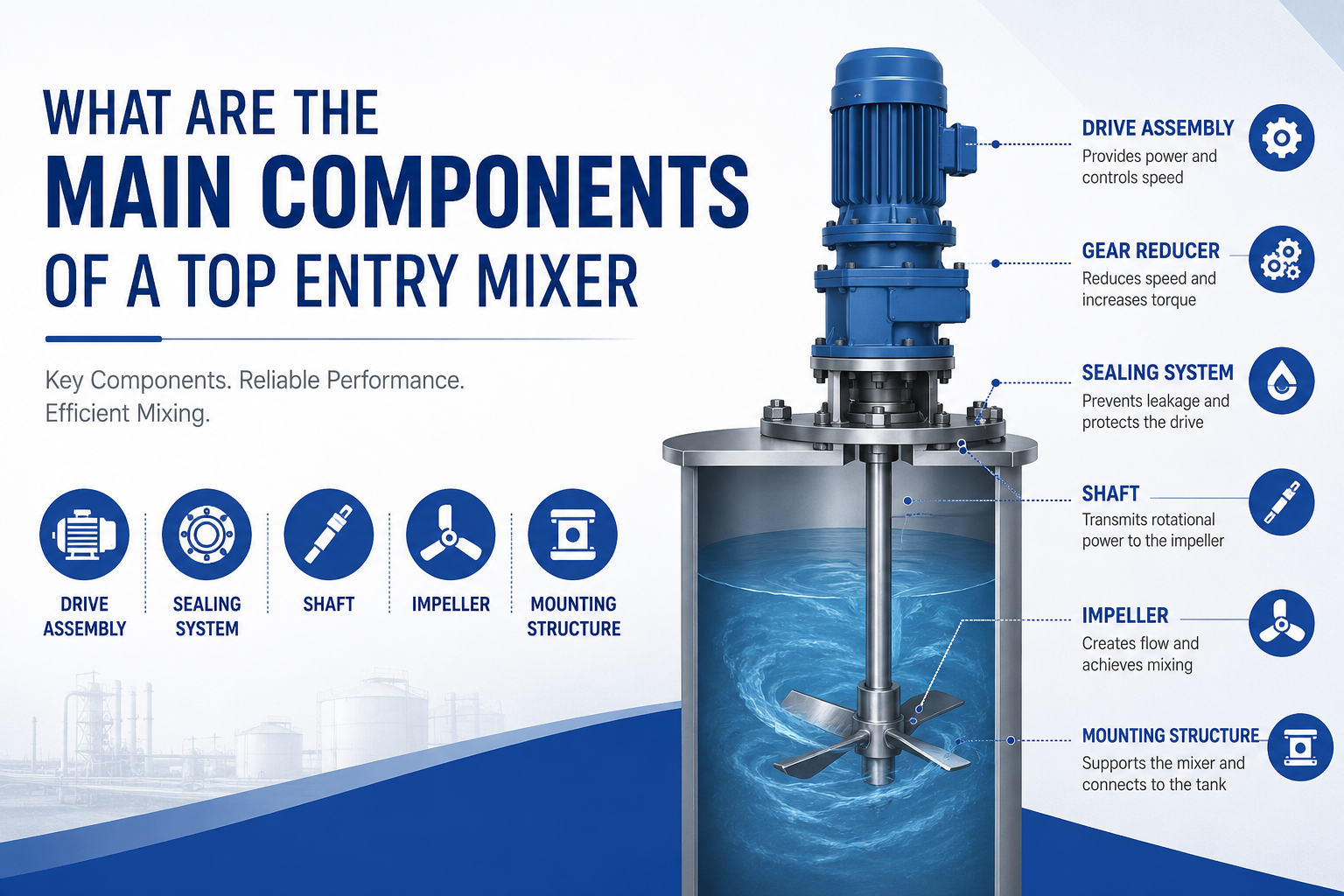

Powering a robust top entry agitator requires a precision-engineered drive unit. The drive assembly serves as the machine's heart. It converts electrical or pneumatic energy into mechanical rotational force. You must size this assembly correctly to avoid motor burnout or insufficient blending.
Motor selection dictates overall performance. Engineers evaluate horsepower (HP) and RPM requirements based on fluid specific gravity and viscosity. High-viscosity fluids demand higher torque. You must select a motor capable of handling these heavier loads without overheating.
Regulatory and environmental compliance shapes motor selection. You should choose the right enclosure type for your specific facility layout:
TEFC (Totally Enclosed Fan Cooled): The industry standard for safe, indoor industrial environments. They keep dust and moisture out of internal windings.
XP (Explosion Proof): Mandatory for hazardous environments processing volatile solvents. They prevent internal sparks from igniting external airborne gases.
Washdown-Duty: Essential for food and pharmaceutical applications. They feature smooth exteriors and epoxy coatings to withstand aggressive chemical cleaning.
Large-scale top entry tank mixer applications rely on gear reducers to multiply torque. A motor spinning at 1750 RPM cannot drive a massive impeller efficiently. The gearbox reduces this speed to a functional 30-100 RPM range while exponentially increasing rotational force.
You can bypass gearboxes entirely for low-viscosity, high-speed applications. Direct-drive mixers couple the motor directly to the shaft. They work beautifully for rapidly mixing thin fluids like water or light chemicals. However, heavy sludges and viscous polymers absolutely require gear-driven setups.
Engineers assess AGMA (American Gear Manufacturers Association) service factors rigorously. A gearbox rated at a 1.0 service factor operates precisely at its maximum capacity. Industrial environments present sudden shock loads during material additions. We strongly recommend specifying an AGMA service factor of 1.5 or higher. This buffer ensures durability and prevents catastrophic gear tooth failure under sudden stress.
A mixer generates immense dynamic forces. The mounting structure and sealing mechanisms must contain these forces safely. Improper mounting causes severe vessel damage, while poor sealing leads to hazardous leaks.
You must match the mount to the vessel design. Closed, pressurized tanks typically require ANSI-standard flange mounts. Flanges bolt securely directly to the vessel nozzle. Open tanks utilize heavy-duty plate or beam mounts. They bridge the open span and provide a rigid anchoring point.
Structural rigidity remains paramount. Rotating shafts generate dynamic bending moments. The mount must absorb these forces. Weak mounting structures transfer dangerous vibrations directly into the vessel walls. Over time, these vibrations cause structural fatigue, weld cracking, and severe equipment damage.
Sealing the shaft penetration point requires careful consideration. The right seal protects your environment and your product. We categorize sealing technologies based on application severity.
Lip Seals & Stuffing Boxes: These represent cost-effective options for low-pressure, non-hazardous environments. Stuffing boxes use braided packing material to compress against the shaft. They require frequent adjustments and tolerate slight leakage to stay lubricated.
Single Mechanical Seals: These utilize precision-lapped faces to prevent fluid escape. They work perfectly for moderately pressurized tanks containing non-toxic fluids.
Double Mechanical Seals: Essential for highly pressurized vessels, toxic chemicals, or sterile pharma applications. They use a barrier fluid between two seal faces. This design ensures zero process emissions and maintains strict FDA compliance.
Maintenance teams must evaluate seal cartridge accessibility. Replacing a seal often demands significant labor. Look for modular designs. Modern mixers allow maintenance crews to swap seal cartridges without removing the heavy gearbox. This feature minimizes costly production downtime.
The shaft transmits rotational force from the drive to the impellers. It operates under immense fluid resistance. Poor shaft design results in severe bending, extreme vibrations, or complete mechanical shearing.
Engineers calculate critical speed carefully. Every metal shaft has a natural resonant frequency. Operating at this frequency causes catastrophic vibration. Standard practice dictates operating at least 20% away from the shaft's critical speed. You typically run mixers well below this threshold.
High-viscosity applications push heavy fluid forces against the shaft. This pressure causes deflection or bending. Excessive deflection destroys mechanical seals prematurely. You prevent deflection by increasing the shaft diameter. A thicker shaft resists bending moments and extends seal life significantly.
Chemical compatibility dictates material choice. Standard industrial applications use 316 or 316L Stainless Steel as a reliable baseline. It offers excellent durability and moderate corrosion resistance.
Aggressive chemicals destroy standard stainless steel quickly. High-corrosion alternatives include exotic alloys like Hastelloy or Titanium. To save material costs, engineers often specify carbon steel shafts coated in specialized fluoropolymers. PTFE or PFA coatings provide supreme chemical resistance at a fraction of solid alloy prices.
Implementation reality sometimes forces compromises. Exceptionally long shafts might exceed safe deflection limits despite diameter increases. Engineers resolve this using steady bearings. These bottom bearings stabilize the lower shaft tip. However, they introduce submerged wear parts into the tank. Steady bearings create major cleaning challenges in sanitary applications.
Impellers translate raw motor power into targeted fluid movement. Choosing the wrong impeller wastes energy and ruins batch consistency. You must align impeller types strictly with your specific process goals.
Engineers divide impellers into two primary categories. Axial impellers push fluid parallel to the shaft. Radial impellers push fluid outward toward the tank walls.
Feature | Axial Flow Impellers | Radial Flow Impellers |
|---|---|---|
Design Types | Hydrofoils, Pitched Blade Turbines | Rushton Turbines, Flat Blade Turbines |
Primary Action | High pumping capacity, low shear | High shear, lower pumping capacity |
Best Applications | Liquid-liquid blending, solid suspension | Gas dispersion, emulsification, high viscosity |
Energy Efficiency | High (requires lower horsepower) | Low (draws significantly more power) |
Axial flow impellers excel in flow-driven processes. Pitched blade turbines offer a great balance of flow and shear. Hydrofoils provide maximum pumping action. They lift settled solids off the tank bottom using minimal energy. You should use hydrofoils for large-scale blending where shear damage to the product remains a concern.
Radial flow impellers dominate shear-driven processes. A Rushton turbine shatters gas bubbles into microscopic sizes for rapid absorption. Flat blade turbines tear apart tough emulsions. The performance trade-off involves power consumption. Radial impellers demand significantly higher horsepower to operate effectively compared to axial designs.
Determining the number of impellers requires assessing the tank geometry. Engineers examine the liquid level-to-tank diameter ratio. A ratio below 1.0 typically requires only a single impeller placed near the bottom. When the liquid level exceeds the tank diameter significantly, you must install dual or multiple tiers of impellers. Proper spacing prevents fluid stagnation in the upper regions of tall vessels.
Purchasing mixing equipment demands strict engineering oversight. You must evaluate the vendor's design philosophy and component sourcing. A cheap upfront price often masks subpar parts that fail early.
Assess whether the vendor uses proprietary components. Proprietary motors or custom-machined bearings lock you into the manufacturer's ecosystem. You will face excessively high aftermarket pricing and agonizing lead times during breakdowns. Insist on standard, off-the-shelf motors and commercial bearings. You can source standard parts locally to restore operations immediately.
Evaluate the machine's maintenance profile before purchasing. Use the following chart to benchmark proposed equipment against maintenance best practices.
Evaluation Metric | Poor Design | Optimized Design |
|---|---|---|
Seal Replacement | Requires complete gearbox removal | Features a split-cartridge or accessible spool piece |
Motor Mounting | Custom flange, hard to align | Standard C-Face or D-Flange, auto-aligning |
Impeller Attachment | Welded directly to the shaft | Hub and set-screw or bolted blades for easy swapping |
Lubrication Access | Hidden grease points requiring teardown | External, easily accessible grease zerks or auto-lubers |
Quality manufacturers provide rigorous engineering validation. Validate the vendor's use of Computational Fluid Dynamics (CFD). CFD software models how fluids move inside your specific tank. It proves the proposed impeller configuration will suspend your solids or blend your liquids perfectly.
Vendors should also utilize Finite Element Analysis (FEA) on mechanical parts. FEA maps stress concentrations on the shaft and mounting flanges. This data guarantees the selected components will easily withstand the dynamic loads. Always request these engineering reports to ensure the machine will meet your specific process guarantees.
A top entry mixer operates as a highly engineered system. The failure of a single under-specced component compromises your entire batch process. A weak gearbox, a vibrating shaft, or an inefficient impeller will bottleneck your facility's production capabilities. Selecting the right parts ensures smooth, reliable operations.
We advise procurement and engineering teams to act proactively. Define your fluid parameters clearly before engaging vendors. Document your exact viscosity, density, and tank volume. Encourage your teams to request comprehensive technical proposals. Scrutinize these documents thoroughly. Detail component origins, verify AGMA service factors, and demand clear warranty terms. This disciplined approach guarantees you acquire a robust, process-optimized machine.
A: Direct-drive mixers couple the motor directly to the shaft. They spin at high speeds and work best for low-viscosity, low-torque applications like water blending. Gear-driven models use a mechanical reducer to lower the output speed. This exponentially increases the torque, making them mandatory for mixing heavy, viscous fluids and slurries.
A: Yes, you can swap impellers if conditions allow. However, the new impeller’s power number and total weight must not exceed your existing motor's horsepower limits. It must also remain within the shaft's critical speed threshold. You should always have an engineer recalculate the loads before making physical changes.
A: Steady or bottom bearings are typically required when a shaft exceeds a specific length-to-diameter ratio. Exceptionally long shafts become prone to excessive deflection under heavy fluid forces. They might also operate dangerously close to their critical speed. A steady bearing anchors the bottom, preventing catastrophic bending and vibration.
A: The AGMA service factor indicates a gearbox's ability to handle operational overloads and shock-loading. A factor of 1.0 means it runs at its absolute maximum rating. A higher service factor, such as 1.5 or above, ensures heavy-duty reliability. It extends the equipment's lifespan under harsh, continuous industrial use.
