Drive assembly failures—specifically premature gearbox wear and motor burnout—are the leading causes of unplanned downtime in industrial mixing applications. Specifying a top entry mixer based solely on volume or generalized horsepower often ignores critical dynamic forces, such as fluid viscosity shifts, axial thrust, and radial bending moments caused by long overhung shafts. To ensure process reliability and prevent catastrophic mechanical failure, engineers must evaluate motor and gearbox specifications through a strict framework of fluid dynamics, mechanical load capacities, and environmental constraints. Relying on generic sizing charts leads to sheared gear teeth, blown seals, and contaminated batches. You need to look at the actual forces acting on the impeller and how those forces transfer up the shaft into the drive unit to build a system that survives continuous operation.
Torque Over Horsepower: Mixer performance is dictated by the gearbox's ability to deliver torque at the impeller, not just the motor's raw horsepower.
Load Management is Critical: Top entry mixer gearboxes must be explicitly designed to absorb severe axial and radial (bending) loads; standard off-the-shelf reducers frequently fail in these applications.
Service Factors Dictate Lifespan: Applying the correct American Gear Manufacturers Association (AGMA) service factor based on duty cycle and shock loads is non-negotiable for long-term reliability.
Contamination Prevention: Food, pharmaceutical, and chemical applications require specific gearbox housing designs (like dry-well construction) to prevent lubrication leaks into the mixing vessel.

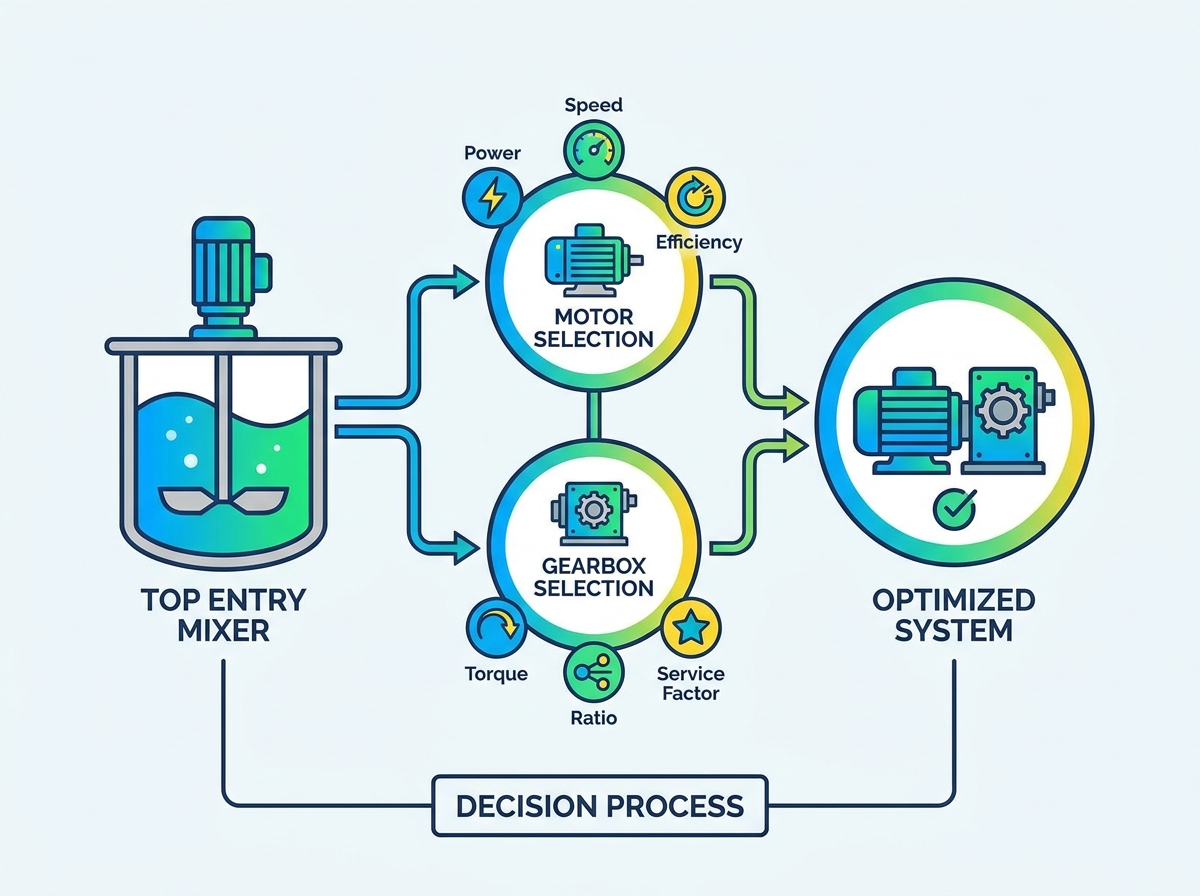

The relationship between the prime mover and the speed reducer forms the mechanical foundation of any mixing system. The motor dictates available power and input speed, while the gearbox converts that input speed into highly multiplied output torque to drive the shaft. This mechanical synergy determines whether the equipment can handle the physical demands of the process fluid. If the gearbox cannot handle the torque multiplication required by the impeller diameter and fluid viscosity, the motor will stall or the gear teeth will fail.
Top entry configurations present unique mechanical challenges due to the overhung load. Unlike inline pumps where the shaft is supported at both ends, top entry agitators feature long, unsupported shafts that act as levers. These shafts transfer immense dynamic forces directly back into the gearbox bearings. When fluid hits the impeller blades, it creates radial forces that try to bend the shaft. The gearbox output bearings must absorb this bending moment entirely. If the bearings are spaced too closely together or are undersized, the shaft will deflect, leading to rapid seal failure and bearing fatigue.
The physical weight and material density of the shaft and impeller assembly dynamically influence the starting torque and overall inertia of the drive system. A solid stainless steel shaft requires significantly more starting torque than a hollow pipe design. Engineers must account for the dead weight of these components when sizing the thrust bearings in the gearbox.
Material Type | Density (lb/in⊃3;) | Impact on Drive Inertia | Common Application |
|---|---|---|---|
316L Stainless Steel | 0.290 | Moderate to High | Sanitary, Food & Beverage, General Chemical |
Hastelloy C-276 | 0.321 | High | Highly Corrosive Acids, High-Chloride Environments |
Carbon Steel (Rubber Lined) | 0.284 (Base) | Very High (due to added lining weight) | Abrasive Slurries, Mining, Wastewater |
Titanium | 0.163 | Low | Specialty Chemicals, High Strength-to-Weight Needs |
Specific gravity and viscosity dictate power requirements at the impeller. Specific gravity directly impacts the horsepower required to move the fluid; a fluid with a specific gravity of 1.5 requires 50% more power to mix than water. Viscosity determines the resistance to flow. Non-Newtonian fluids, which exhibit shear-thinning or shear-thickening behaviors, drastically alter torque demand during different phases of the batch. For example, a shear-thickening fluid will cause a sudden spike in torque as the mixer speed increases, potentially overloading an improperly sized gearbox.
Different impellers generate different types of mechanical stress. Axial flow turbines, such as hydrofoils or pitched blade turbines, push fluid down or up, producing significant axial thrust that the gearbox thrust bearings must support. Radial flow impellers, like Rushton turbines, push fluid outward toward the tank walls, generating high shear and significant radial bending moments on the shaft. Tank baffles increase power draw and mechanical resistance by preventing the fluid from simply swirling in a solid body rotation, forcing the drive system to work harder to achieve actual mixing.
The duty cycle dictates specification requirements. Continuous 24/7 operation demands far more robust components, higher thermal ratings, and larger service factors than intermittent, short-batch processing. A mixer running for one hour a day can survive with a smaller gearbox than one running continuously for months at a time.
Essential data points needed before selecting drive components include:
Minimum and maximum fluid viscosity (cP) and specific gravity (SG) throughout the entire batch process.
Operating temperature and pressure of the vessel, which affects seal selection and thermal expansion.
Vessel dimensions, including diameter, straight side height, and bottom geometry (dished, flat, cone).
Liquid level variation, specifically identifying draw-down phases where the impeller crosses the liquid surface, causing severe shock loads.
Corrosive or hazardous nature of the vapors and atmosphere surrounding the drive unit.
The calculation framework for motor sizing requires determining the power required at the impeller and adding the mechanical losses in the gearbox and shaft seals. The power number (Np) of the specific impeller, fluid density, impeller diameter, and rotational speed are used to calculate the shaft horsepower. Once the shaft horsepower is known, you must account for the efficiency of the gearbox (typically 95% for helical gears) and the friction drag of the mechanical seal. The sum of these values equals the total motor HP required.
Engineers must distinguish between startup torque and running torque. Startup torque is necessary for overcoming the inertia of settled solids or high cold-start viscosity. If a slurry settles at the bottom of the tank during a power outage, the motor must have enough starting torque to break the impeller free from the packed solids. Aggressively oversizing motors is a common error. This practice leads to a poor power factor, wasted electrical energy, and potential mechanical damage. If an oversized motor drives a shaft that hits a solid obstruction, the motor will not stall; instead, it will twist and snap the shaft or shatter the gearbox internals.
Motor enclosures must match the operating environment to prevent premature failure. Totally Enclosed Fan Cooled (TEFC) motors are standard for general industrial environments, protecting the internal windings from dust and moisture. Explosion-Proof (XP) motors are mandatory for volatile chemical processing or environments with combustible dust. You must specify the exact Class, Division, and Group ratings based on the specific hazardous materials present in the facility. Washdown or stainless steel motors are necessary for sanitary applications, such as food and beverage or biopharma, to withstand high-pressure, caustic cleaning regimens without corroding or shorting out.
VFDs are essential for processes requiring variable shear rates, handling changing fluid levels during draw-down, or mitigating high starting torques. By ramping up the speed slowly, a VFD reduces the mechanical shock on the gearbox and shaft. When utilizing a VFD, inverter-duty rated motors are required. Standard motors rely on a shaft-mounted fan for cooling; at low speeds, this fan moves less air, causing the motor to overheat. Inverter-duty motors feature upgraded insulation (Class F or H) to handle the heat and voltage spikes associated with VFD operation, and may include separate constant-speed cooling fans.
Torque is the definitive metric for mixer gearboxes. A high-horsepower motor paired with an undersized gearbox will shear gear teeth or destroy bearings under heavy fluid resistance. Horsepower is simply a function of torque and speed. You can have a 10 HP motor running at 1750 RPM, but if you gear that down to 30 RPM at the mixer shaft, the torque multiplication is massive. Matching the gearbox output torque rating to the maximum anticipated torque demand of the impeller ensures reliable operation. Never size a mixer gearbox based solely on the motor horsepower rating.
Gearbox thrust bearings must support the dead weight of the shaft and impeller, plus the hydraulic thrust generated by fluid movement. Down-pumping impellers pull the shaft downward, adding to the dead weight. Up-pumping impellers push the shaft upward, potentially lifting the shaft if the thrust exceeds the dead weight. The bearings must handle forces in both directions.
Fluid forces against the impeller create bending moments on the shaft. Heavy-duty, widely spaced output bearings in the gearbox are required to absorb these radial forces without deflecting. Tapered roller bearings or spherical roller bearings are typically used on the output shaft to handle these combined axial and radial loads. Standard commercial gearboxes often use deep groove ball bearings, which will fail rapidly under the bending moments of a top entry mixer.
Thermal horsepower is the maximum power a gearbox can continuously transmit without overheating its oil bath. As gears mesh, they create friction and heat. If the heat cannot dissipate into the surrounding air fast enough, the oil degrades, losing its lubricating properties, which leads to rapid gear and bearing wear. Factors that limit heat dissipation in top entry applications include hot process vapors rising from the tank, high ambient temperatures in the plant, and enclosed mounting spaces. Mitigating these issues often requires specifying gearboxes with synthetic oil, adding cooling fans to the input shaft, or installing external oil coolers with circulation pumps.
Different gearbox designs offer distinct advantages and disadvantages for mixing applications. Helical and bevel-helical gearboxes offer high efficiency (typically 95-98%), exceptional durability, and are the standard for heavy-duty industrial mixing. They can be built with massive output shafts and widely spaced bearings to handle overhung loads.
Planetary gearboxes provide high torque density and a compact footprint, making them useful where space is limited. However, they often present trade-offs in thermal capacity due to their small surface area, and their internal bearing arrangements are sometimes less suited for massive bending moments unless specifically modified. Worm gears have a lower initial cost and provide right-angle configurations, but they suffer from lower mechanical efficiency (sometimes dropping below 70% at high ratios) and severe thermal limitations in continuous high-torque applications.
Specifying gearboxes based on AGMA standards for pitting resistance and bending strength ensures baseline durability. AGMA ratings provide a standardized method for calculating the mechanical rating of the gear teeth. Selecting the correct service factor is critical for adapting a baseline gearbox to the realities of a mixing application. A service factor of 1.0 means the gearbox can handle the exact rated load with no margin for error.
For industrial mixing, a minimum service factor of 1.25 to 1.5 is standard. Shock loads, such as adding solid chunks to a liquid, gas dispersion applications where the impeller hits gas pockets, and continuous 24/7 operation demand higher service factors (often 2.0 or higher). A higher service factor physically translates to larger gears, heavier shafts, and larger bearings, ensuring a 100,000+ hour L10 bearing life under actual operating conditions.
Sudden viscosity spikes or mechanical blockages can cause overload failures, shearing internal gear teeth instantly. More commonly, failure is a slow progression. Unmitigated shaft deflection leads to bearing fatigue, characterized by the progression of micro-pitting on bearing races. As the bearings wear, they allow more shaft movement. High radial forces cause shaft runout at the seal location. This runout destroys the lip of the main oil seal, causing rapid oil loss. Once the oil level drops below the bearings and gear meshes, lubrication starvation occurs, resulting in catastrophic failure within hours.
Standard gearbox output shaft seals can fail, leaking oil down the mixer shaft directly into the product. In many industries, this results in scrapping an entire batch, costing tens of thousands of dollars. A dry-well gearbox design eliminates this risk by incorporating a physical dam or tube around the output shaft inside the gearbox. The oil level is maintained below the top of this dam, meaning there is no liquid oil resting against the lower output seal. This design is mandatory for sanitary, food, pharmaceutical, or high-purity chemical applications where contamination is unacceptable.
Mounting a high-torque top entry mixer on a weak tank roof causes harmonic vibration. The tank roof must be structurally reinforced with gussets and channel iron to handle the dynamic loads of the mixer. If the mounting structure flexes, it causes vibration that travels back into the gearbox. This vibration leads to premature bearing and gear failure, regardless of how well the gearbox is sized.
Rigid flanged couplings are critical for maintaining axial alignment of the mixer shaft. The coupling must transmit torque while keeping the long mixer shaft perfectly plumb. Standard flexible couplings, often used on pumps, pose severe risks in high-bending-moment applications because they allow the shaft to pivot, increasing runout and destroying the mechanical seal on the vessel.
Evaluating the engineering capabilities of the mixer manufacturer is just as important as evaluating the hardware. You must partner with vendors who provide comprehensive engineering data to back up their equipment selection. This includes computational fluid dynamics (CFD) reports to verify mixing intensity and flow patterns, critical speed analysis of the shaft to ensure it does not operate near its natural resonant frequency, and verifiable load calculations for the gearbox bearings. A vendor who simply picks a drive unit from a catalog without running these calculations is putting your process at risk.
Selecting the right motor and gearbox for a top entry mixer requires prioritizing torque capacity, bearing life, thermal ratings, and structural load management over raw horsepower. Discard vendors who quote standard off-the-shelf reducers without requesting tank geometry, fluid rheology, and shaft length data.
Compile a comprehensive process data sheet including fluid viscosity, specific gravity, tank dimensions, and duty cycle before contacting vendors.
Consult with a specialized mixing engineer to verify load calculations, critical speed analysis, and thermal capacities for your specific application.
Ensure the selected gearbox features appropriate bearing spacing, a high AGMA service factor, and dry-well seal designs if contamination is a risk.
Verify the structural integrity of the tank mounting surface and reinforce it to prevent vibration-induced mechanical failures.
A: Torque measures the rotational force delivered to the impeller, which dictates the mixer's ability to overcome fluid resistance. A high-horsepower motor cannot compensate for a gearbox that lacks the physical torque capacity to handle heavy or viscous fluids. If the torque demand exceeds the gearbox rating, the internal components will fail mechanically.
A: A dry-well gearbox features a physical dam around the output shaft inside the housing, preventing lubricating oil from reaching the lower seal. This design ensures that even if the lower seal fails, oil cannot leak down the shaft and contaminate the product in the mixing vessel below.
A: Overhung loads from long, unsupported mixer shafts create severe radial bending moments. These forces act as a lever against the gearbox output bearings. If the bearings are not adequately sized and spaced far enough apart, the shaft will deflect, causing rapid bearing fatigue, seal failure, and oil leaks.
A: Variable Frequency Drives (VFDs) allow operators to adjust the mixer's rotational speed. This is crucial for handling changing fluid viscosities, managing draw-down phases where the liquid level drops, and controlling shear rates. VFDs also mitigate high starting torques, reducing mechanical stress on the drive components during startup.
A: The AGMA service factor acts as a mechanical safety margin, accounting for operational variables like continuous 24/7 duty cycles and shock loads. A higher service factor ensures the gearbox gears, shafts, and bearings are physically larger and robust enough to achieve a long operational lifespan under demanding industrial conditions.
