Views: 0 Author: Site Editor Publish Time: 2026-09-28 Origin: Site
Mixing abrasive, high-solid mining slurries carries massive operational stakes. Unplanned downtime, severe tank bridging, and compromised extraction yields can derail a facility's profitability overnight. When heavy particles settle, they solidify rapidly, causing irreversible equipment damage and dangerous blockages. Standard industrial agitators simply cannot survive these brutal environmental conditions. They fail rapidly under extreme viscosity, relentless material abrasion, and exceptionally high specific gravity. You need specialized mixing equipment designed for absolute mechanical resilience. This guide delivers a comprehensive, objective framework for process engineers and procurement teams. We will explore exactly how to evaluate and shortlist a mining slurry mixer effectively. You will learn to navigate crucial solids suspension metrics, mechanical reliability standards, and long-term operational efficiencies. By mastering these core principles, you can prevent catastrophic tank failures, maximize your extraction yields, and optimize your entire mineral processing workflow.
Achieving "off-bottom suspension" is the baseline metric for cement and ore slurry success; over-mixing wastes energy, while under-mixing causes catastrophic tank build-up.
Impeller selection (axial vs. radial flow) and gear drive durability are non-negotiable evaluation dimensions for high-specific-gravity applications.
A reliable heavy-duty top entry mixer must feature specialized abrasion-resistant coatings (e.g., rubber linings, hard-facing) to survive mineral processing environments.
Partnering with an experienced industrial tank mixer manufacturer that offers Computational Fluid Dynamics (CFD) modeling minimizes scale-up risks and prevents costly retrofits.
When slurry particles settle, disaster inevitably follows. The mechanics of failure in mineral processing are unforgiving. Particles drop out of the fluid suspension and accumulate heavily on the tank floor. This phenomenon, widely known as sanding out, creates immediate pipeline blockages. It also forms massive dead zones inside agitated tanks. Once solids accumulate, they harden into concrete-like masses. Resolving this requires manual dig-outs, which introduces severe worker safety risks and halts production lines entirely.
Inadequate suspension directly destroys process yields. Consider critical operations like acid leaching, solvent extraction, or Cemented Rock Fill (CRF) preparation. These processes require continuous, dynamic contact between solid particles and chemical reagents. If particles sit stagnant on the bottom, chemical reactants cannot reach their surface area. Consequently, mineral recovery rates plummet. You extract significantly less valuable ore while wasting expensive chemical reagents on an inefficient reaction.
To avoid these failures, process engineers must define strict success criteria before selecting equipment. A successful installation requires several critical baselines:
Maximizing Equipment Uptime: The agitator must run continuously without unexpected seal or bearing failures.
Minimizing Wear Rates: Wetted parts must resist aggressive abrasion to extend maintenance intervals.
Achieving Uniform Pump-Out Concentration: The fluid leaving the tank must maintain a consistent solid ratio to protect downstream pumps from cavitation.
Predictable Operational Continuity: The system must deliver stable performance metrics over a multi-year lifecycle without degrading.
Understanding how particles behave inside a stirred tank is the first step in equipment evaluation. Mixing heavily laden fluids is not about moving water; it involves suspending dense rocks, sands, and clays. Engineers categorize this behavior into specific states of suspension. Choosing the wrong target state either guarantees tank failure or wastes massive amounts of electrical power.
Suspension State | Flow Characteristic | Application Suitability |
|---|---|---|
On-Bottom Motion | Particles roll along the floor but do not lift. | Rarely acceptable; causes gradual, destructive buildup. |
Off-Bottom Suspension | All particles lift continuously off the tank floor. | The standard target for leaching, crystallization, and storage. |
Uniform Suspension | Particles distribute equally across the entire fluid height. | Wastes energy; rarely required for basic ore processing. |
Torque matters far more than rotational speed in mining applications. High torque and low rotational speeds excel for heavy slurries. High tip speeds generate excess fluid shear, which accelerates impeller blade degradation through aggressive abrasion. In contrast, high torque generates massive bulk flow. Bulk flow physically lifts heavy masses efficiently without sandblasting the metal components.
The impeller acts as the heart of your mixing system. Selecting the wrong geometry dooms the entire operation. High-efficiency axial flow impellers provide the best performance for bulk flow. They push fluid straight down toward the tank floor, creating an upward sweeping motion that lifts heavy solids effectively. Pitch blade turbines offer a different advantage. They balance axial flow and radial shear, making them highly useful in fluctuating viscosity environments, such as aggregate wash water or high-density thickeners.
Furthermore, mixer performance relies heavily on tank geometry integration. An agitator does not operate in a vacuum. Standard cylindrical tanks require properly sized baffles to prevent the fluid from swirling into a vortex. A vortex stops vertical mixing entirely. Aspect ratios also dictate success; overly tall tanks may require multiple impeller tiers. Finally, conical tank bottoms funnel solids directly into the impeller flow, making them vastly superior to flat-bottom designs for heavy slurries.

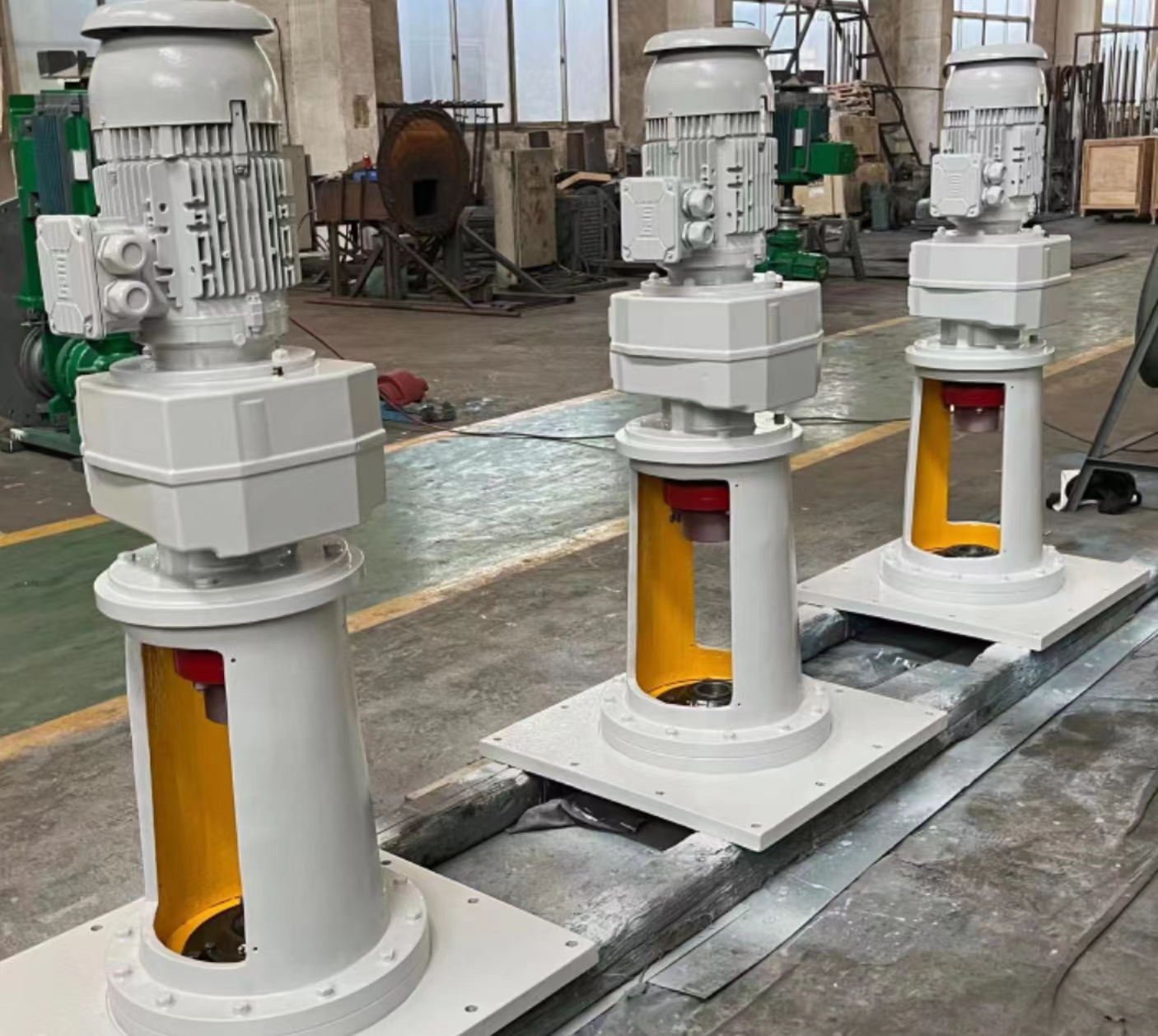

Large-scale mining operations rarely rely on portable or side-mounted equipment. A heavy-duty top entry mixer serves as the undisputed standard for large-scale mineral tanks. Top-entry configurations keep sensitive mechanical seals safely above the abrasive fluid line. They easily accommodate the massive gearboxes required to turn large impellers. Additionally, heavy steel bridge structures safely support the exceptionally long shaft lengths necessary for deep mining tanks.
Mechanical integrity separates standard chemical agitators from true mining equipment. You must scrutinize three primary mechanical components:
Gearbox Service Factors: Mining slurries do not behave like water. Falling solid clumps send massive shock loads upward through the shaft. Evaluating high AGMA service factors is essential. A minimum service factor of 1.5 to 2.0 ensures the gearbox can absorb sudden impacts without shattering internal gear teeth.
Shaft Design & Critical Speed: Sizing shafts correctly prevents catastrophic vibration. The shaft must operate safely below its first critical speed. If a long shaft deflects during operation, the resulting vibration destroys bearings, ruins mechanical seals, and eventually snaps the metal itself.
Bearing Spacing: Pushing thick sludge generates enormous radial loads. Robust bearing housings featuring wide bearing spacing counteract these forces. Proper alignment extends both seal and gear life substantially under continuous heavy duty.
Mineral processing environments aggressively attack metal. Moving slurry particles constantly strip passivating oxide layers from stainless steel surfaces. This mechanical stripping exposes bare metal to harsh chemicals, creating a devastating abrasion-corrosion synergy. In highly acidic environments, such as hydrometallurgy or gold cyanidation leaching, corrosion accelerates exponentially once the protective layer vanishes. You must implement robust material science defenses to ensure equipment survival.
Applying protective coatings and selecting advanced metallurgy mitigates these severe operational risks. Rubber linings and specialized polyurethane coatings offer excellent, cost-effective strategies. They absorb particle impacts beautifully in high-abrasion, low-temperature tanks. However, when processes involve high temperatures or sharp ores, you must specify hard-facing techniques. Welding hardened leading edges onto impeller blades extends their lifespan dramatically. For extreme chemical attacks, engineers often specify exotic alloys like Titanium or Duplex stainless steels.
You must also evaluate harsh maintenance realities before finalizing an equipment purchase. Underground mines and remote facilities lack extensive fabrication shops. Replacing impeller blades should be straightforward. Bolted impeller hubs allow technicians to swap worn blades quickly. Welded blades force you to replace the entire impeller assembly. Furthermore, you need accessible mechanical seals. Maintenance crews must have the ability to swap seals efficiently without utilizing heavy cranes to remove the entire drive unit.
Procuring capital equipment demands rigorous vendor evaluation. Not all fabricators understand the brutal physics of mineral extraction. You must demand empirical testing and scale-up validation. A credible industrial tank mixer manufacturer provides comprehensive Computational Fluid Dynamics (CFD) reports. These simulations prove mathematically that their proposed design achieves off-bottom suspension based precisely on your particle size distribution (PSD) and fluid specific gravity.
Integration support serves as another crucial vetting metric. The vendor must collaborate closely with your engineering team. They should provide exact specifications for tank baffle design to optimize flow. They must also calculate the dynamic loads the mixer will exert, ensuring your structural roof supports can handle the continuous vibration and weight.
Always scrutinize the warranty and post-sale support framework. Look for performance guarantees tied directly to process outcomes. A mechanical warranty only covers broken gears; it means nothing if the slurry still settles on the tank floor. Demand guaranteed suspension metrics.
As a next-step action, procurement teams must prepare a highly detailed data sheet before initiating any vendor consultations. Bring the following data to your first meeting:
Exact fluid density and dynamic viscosity.
Detailed particle size distribution (PSD).
The terminal settling velocity of your heaviest solids.
Precise tank dimensions, including bottom geometry and baffle configuration.
Specifying a slurry agitator requires meticulously balancing aggressive solid suspension needs with long-term mechanical survival. Standard industrial designs will fail under the crushing specific gravity and abrasive nature of mineral processing. You must implement solutions designed specifically for heavy-duty bulk flow. Emphasize prioritizing high torque generation, massive structural rigidity, and transparent vendor engineering over initial capital cost savings. Cutting corners on gearbox service factors or shaft thickness inevitably leads to premature failure and costly facility downtime. We highly encourage process engineers to request a custom CFD analysis or a complete mechanical audit of their current slurry tanks from a qualified engineering team today.
A: Minimum speed is entirely relative to your specific process parameters. Engineers use Zwietering’s equation to determine the "just-suspended speed" (Njs). This calculation factors in particle size, solid concentration, liquid density, and impeller geometry. There is no universal minimum speed. Instead, the focus remains on generating enough localized fluid velocity across the tank floor to lift the heaviest particles into the active stream.
A: Side-entry mixers carry significant risks in high-solid applications. Their mechanical seals sit completely submerged within the abrasive slurry, leading to rapid, catastrophic wear. They also struggle to project flow across massive tank diameters, frequently creating dead zones where solids settle and harden. A top-entry setup avoids these issues entirely by keeping seals out of the fluid and utilizing gravity-assisted axial flow.
A: Particle size distribution drastically alters power requirements. Larger, heavier particles require significantly more motor power and downward axial flow to prevent settling compared to fine sludges. If your PSD includes a high percentage of coarse rocks or heavy sand, the impeller must generate a much higher upward fluid velocity. Failing to account for coarse particles guarantees rapid sanding out.
A: Accurate sizing requires a highly comprehensive data sheet. You must provide exact tank dimensions, including the specific bottom geometry. Process data must include the slurry specific gravity, the solid percentage by weight, and the overall dynamic viscosity. Crucially, you must also provide the particle size distribution and the terminal settling velocity of your heaviest solids to ensure precise component selection.
