Managing an anoxic basin in wastewater treatment presents a fundamental engineering paradox. You must achieve homogeneous solid suspension but strictly avoid introducing dissolved oxygen (DO). If unwanted surface aeration occurs, the delicate biological denitrification process halts immediately. This failure quickly leads to regulatory compliance violations. It also forces operators into expensive chemical over-corrections. We know how frustrating this balancing act can be for plant managers and municipal operators. This guide exists to solve that exact issue. We provide facility engineers with a pragmatic, step-by-step evaluation framework. You will learn how to properly select, size, and implement the ideal mixing equipment for your plant. We detail everything from complex fluid hydrodynamics to actionable procurement strategies. By applying these insights, you can guarantee consistent nutrient contact while minimizing your long-term energy consumption.

Key Takeaways

  • Effective anoxic mixing requires high-flow, low-shear agitation to maintain Mixed Liquor Suspended Solids (MLSS) without surface vortexing.

  • The primary agitator configurations—submersible, top-entry, and large-bubble pneumatic—each present distinct Total Cost of Ownership (TCO) and maintenance trade-offs.

  • Validating vendor claims requires requiring Computational Fluid Dynamics (CFD) modeling to guarantee dead-zone elimination and optimal thrust-to-power ratios.

  • "Swing zones" require specialized mixing solutions capable of operating under both anoxic and aerobic conditions without equipment degradation.

The Engineering Challenge: Balancing MLSS Suspension and Zero Aeration

Operators face a unique biological puzzle during denitrification. You must keep heavy biomass constantly suspended in the fluid column. However, you cannot introduce atmospheric oxygen into the water. The biological process relies on specific bacteria stripping oxygen atoms directly from nitrate molecules. If dissolved oxygen enters the fluid, bacteria consume it instead. This immediately stops the critical denitrification process.

The primary job of a wastewater tank mixer in this zone involves kinetic energy transfer. It does not involve gas-liquid mass transfer. Equipment designed for aeration will destroy the anoxic state. You must move massive volumes of dense fluid gently. High-speed mixing creates aggressive surface vortexes. These spinning depressions pull atmospheric air directly into the liquor. This rapidly spikes dissolved oxygen levels. Off-center placement or incorrect impeller angles exacerbate this dangerous vortexing effect.

To evaluate system success, you should monitor specific baseline metrics. Plant managers typically look for several strict conditions to verify optimal performance. Meeting these criteria ensures your biological nutrient removal stays on track.

  1. Consistent Mixed Liquor Suspended Solids (MLSS) concentrations between 2,000 and 4,000 mg/L.

  2. A uniform velocity gradient sweeping across the entire basin floor.

  3. Active prevention of surface drafting or liquid surface breaking.

  4. Strict maintenance of dissolved oxygen levels below 0.2 mg/L at all times.

Achieving these parameters requires precise fluid dynamics engineering. It demands equipment built specifically for gentle, high-volume flow.

Evaluating the Main Categories of Anoxic Tank Agitators

Engineers can choose from three primary equipment configurations. Each category offers unique hydrodynamic benefits. They also bring specific installation requirements and maintenance trade-offs. We break down the realities of each design below.

Facilities frequently deploy submersible mixers in municipal settings. Their deep placement naturally prevents surface aeration. They offer highly modular installation options. Operators can easily retrofit them into existing basins using stainless steel guide rails. However, maintenance poses significant physical challenges. Technicians must hoist the entire unit out of the foul liquor for servicing. They also suffer from severe ragging unless you specify swept-back impeller designs.

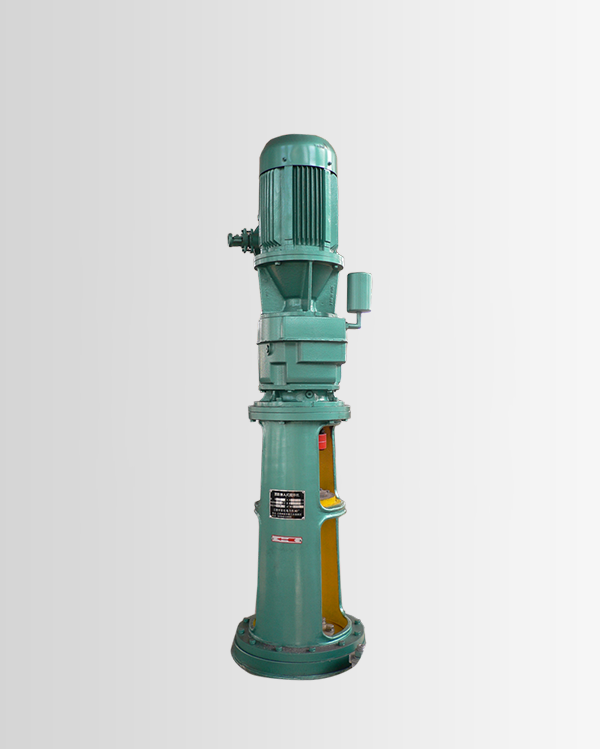

Many industrial plants prefer vertical top-entry configurations for severe-duty applications. The heavy motors and gearboxes remain safely above the fluid layer. This placement drastically simplifies routine maintenance. They deliver exceptional durability for continuous, year-round operation. Conversely, they demand a higher initial capital expenditure. Facilities must construct robust structural bridges to support the immense torque. Impellers require deep submergence to prevent unwanted surface drafting.

Some modern facilities utilize compressed gas pneumatic systems. These systems operate with remarkable energy efficiency. They mix effectively without placing any moving mechanical parts underwater. They adapt easily to swing zones transitioning between varying biological states. The downside involves infrastructure. Plants must install dedicated air compressor networks. Engineers must precisely calibrate the bubble size. They must use large, intermittent gas bursts rather than fine pores to prevent oxygen transfer.

Agitator Configuration Comparison

Configuration Type

Primary Advantage

Primary Disadvantage

Best Application Scenario

Submersible Mixer

Highly modular and simple to retrofit on guide rails.

Requires hoisting out of the fluid for any maintenance.

Municipal plants with standard rectangular or raceway basins.

Top-Entry (Vertical)

Drive components remain dry, simplifying long-term servicing.

Requires expensive structural mounting bridges.

Deep cylindrical tanks or heavy-duty industrial wastewater.

Large-Bubble Pneumatic

Zero moving mechanical parts located underwater.

Requires complex compressor and timing valve infrastructure.

Swing zones requiring rapid transition between environments.

Essential Evaluation Criteria for a Wastewater Treatment Agitator

When procuring new equipment, you must look beyond basic horsepower ratings. Sizing a wastewater treatment agitator demands a thorough understanding of applied fluid mechanics. We recommend focusing on specific engineering metrics to guarantee success.

Many buyers mistakenly select equipment based purely on raw motor horsepower. This approach often leads to massive operational energy waste. Instead, evaluate units based on their actual thrust-to-power ratio. You should measure the thrust generated (in Newtons) per kilowatt of electrical energy consumed. High thrust ensures adequate fluid velocity sweeps across the basin floor. Low power consumption keeps your monthly utility bills manageable. A superior unit maximizes axial flow while minimizing wasted rotational torque.

The impeller profile dictates the entire flow pattern inside the tank. You must require high-efficiency hydrofoil impellers. These specialized blades prioritize axial flow over radial shear. Axial flow pushes fluid smoothly toward the basin floor. This prevents floc shear and protects delicate bacterial clusters. Traditional pitched-blade turbines generate too much radial force. This wastes energy and destroys the biological floc necessary for downstream settling.

Many modern basins function as variable swing zones. These tanks alternate between anoxic and aerobic states depending on seasonal loads. Evaluating equipment for these dual-purpose tanks requires extra scrutiny. You must integrate variable frequency drives (VFDs). VFDs allow operators to reduce speeds during anoxic phases. They can then increase speeds during aerobic cycles. You also need exceptional material compatibility. The equipment faces fluctuating corrosive environments as oxygen levels constantly rise and fall.

Wastewater basins present incredibly harsh chemical environments. Baseline material standards prevent premature catastrophic failures. Submersible motors absolutely require Class H insulation to survive poor heat dissipation. Wetted parts must utilize 316-grade stainless steel or duplex stainless steel alloys. These specific metals resist constant exposure to chlorides, hydrogen sulfide, and aggressive biological byproducts.

Common Implementation Risks and How to Mitigate Them

Even the best equipment fails if installed incorrectly. We see several recurring implementation errors across the industry. You can avoid these expensive pitfalls through careful engineering pre-planning.

Poor equipment placement inevitably leads to dangerous solid accumulation. Heavy biological solids quickly settle into corner dead zones. This banked sludge rots and releases toxic hydrogen sulfide gas. It also reduces the effective biological volume of your tank. Never guess at placement angles or elevations. Demand localized Computational Fluid Dynamics (CFD) modeling from your vendor. The model must incorporate your exact tank geometry. Cylindrical, rectangular, and annular basins all require distinctly different positioning strategies.

Surface vortices destroy denitrification efforts incredibly fast. Poor baffling often causes this phenomenon. Off-center installation without proper mathematical calculations also creates spinning fluid columns. Establish extremely strict guidelines for submergence depth before installation. Industry standards dictate specific ratios between the impeller diameter and the fluid cover above it. Use angled shaft placements or strategic wall baffles to break up radial rotation effectively.

Fibrous materials constantly threaten rotational equipment. Hair, wipes, and industrial plastics bind tightly around spinning shafts. This fibrous mass destroys mechanical seals. It eventually burns out expensive electrical motors. Always evaluate self-cleaning impeller profiles during the selection process. Swept-back blades shed debris naturally during rotation. Additionally, install advanced overload-protection drives. These smart drives detect torque spikes instantly. They can reverse the motor direction to clear fouling automatically.

Shortlisting Logic and Procurement Next Steps

Selecting the final equipment requires a balanced financial and technical review. You must align upfront capital costs against long-term operational realities. We recommend a methodical approach to procurement.

Smart buyers calculate total expenses over a 10-to-15-year operational lifecycle. Avoid making decisions solely on the initial purchase price. Submersible units generally require lower capital expenditure upfront. However, they often incur much higher maintenance expenses over time. Renting cranes and pulling units for seal replacements consumes massive labor hours. Conversely, top-entry systems demand higher upfront investments for structural supports. Yet, they typically offer significantly lower long-term operational costs. Evaluate your internal maintenance capabilities before committing to a specific design.

Do not accept marketing claims at face value. Protect your facility by demanding rigorous proof of performance. Use this validation checklist when interviewing potential suppliers:

  • Demand legally binding performance guarantees regarding solid suspension metrics.

  • Request verifiable CFD reports mapped precisely to your specific tank dimensions.

  • Ask for real-world case studies featuring identical basin geometries and municipal sludge types.

  • Confirm the existence of an accessible, localized service and replacement parts network.

Before approving full-scale plant retrofits, take measured incremental steps. We strongly recommend initiating a small-scale pilot study. A pilot proves the technology works on your specific biological sludge. If a physical pilot proves impossible, request a comprehensive fluid mixing analysis. This detailed engineering study verifies exact velocity gradients. Do this before you spend any capital funds.

Conclusion

Managing biological nutrient removal requires precision fluid engineering. The ideal anoxic tank agitator balances high thrust with zero surface disturbance. This delicate balance heavily impacts your plant's overall treatment efficiency. It directly controls your monthly energy bills. Proper equipment selection prevents sludge banking and eliminates dangerous vortexing. It protects the delicate bacterial floc necessary for clean discharge. Do not leave your tank hydrodynamics to chance or guesswork. Contact a qualified applications engineer to discuss your exact basin geometry today. Request a custom CFD evaluation or a site-specific equipment sizing quote. Taking these proactive steps ensures regulatory compliance and long-term operational efficiency.

FAQ

Q: What is the difference between mixing in anoxic, anaerobic, and aerobic tanks?

A: Aerobic mixing focuses heavily on oxygen transfer and rapid aeration. Anoxic and anaerobic environments strictly require gentle blending and solid suspension. They must operate without introducing atmospheric oxygen. Anoxic zones support denitrification, while anaerobic zones support phosphorus release or digestion.

Q: Can I use the same wastewater tank mixer for a swing zone?

A: Yes, you can use the same equipment for swing zones. However, you must implement specific operational adjustments. We highly recommend installing Variable Frequency Drives (VFDs). VFDs allow you to lower mixing speeds during anoxic phases and increase agitation during aerobic phases.

Q: How do you prevent vortexing in an anoxic tank?

A: You prevent vortexing by maintaining strict submergence depth ratios. The impeller must stay deep beneath the fluid surface. You should also utilize proper wall baffling. Angling the mixer shaft or placing it slightly off-center disrupts the radial flow that causes vortexing.

A: Industry standards recommend maintaining a bulk fluid velocity of approximately 0.3 meters per second. This equals roughly 1 foot per second. This specific velocity provides enough kinetic energy to keep heavy biomass suspended without shearing floc or breaking the fluid surface.
