In dairy and food processing, mixer selection is a contamination and compliance decision first. Fluid dynamics take a secondary role to strict sanitation requirements. You face rigorous regulations demanding flawless hygiene every single day. Improper mixer specification causes severe financial and operational damage. Facilities suffer substantial losses from spoiled batches. You also face inefficient Clean-In-Place (CIP) cycles and failed safety audits. These painful failures stem directly from inadequate equipment design rather than operator error. Choosing a robust hygienic tank mixer fundamentally protects your brand reputation. This guide provides a structured evaluation framework for your processing facility. We will move beyond basic capacity requirements and volume calculations. You will learn how to specify precise sanitary equipment to ensure uncompromising safety, regulatory alignment, and operational efficiency.
Strict adherence to 3-A SSI and EHEDG standards is non-negotiable for mitigating microbial growth.
Fluid rheology dictates impeller choice; shear-sensitive dairy products require highly specific flow patterns.
Mounting configurations (like utilizing a top entry mixer) directly impact mechanical seal maintenance and cross-contamination risks.
Understanding regulatory baselines is your first step in equipment selection. Many manufacturers vaguely claim their equipment is sanitary. However, verifiable standards separate true hygienic equipment from standard industrial variants. You must distinguish between FDA-compliant materials, 3-A Sanitary Standards used in the US, and EHEDG guidelines prominent in Europe. FDA compliance merely dictates material safety for food contact. It does not dictate structural geometry. In contrast, 3-A and EHEDG standards mandate strict structural rules. They completely eliminate bacterial harborage points through precise engineering.
Surface finish and metallurgy directly dictate cleanability. We demand 316L stainless steel for all wetted components. Standard 304 industrial stainless steel is insufficient for highly corrosive CIP chemicals. You must specify a maximum surface roughness (Ra) of 32 µin (0.8 µm). This smooth finish prevents microscopic bacteria from clinging to the metal. You should actively evaluate when to upgrade to electropolishing. High-risk dairy applications often require an Ra below 15 µin. Electropolishing utilizes anodic dissolution to chemically remove microscopic surface peaks. It creates a passive, mirror-like finish. This advanced finish resists aggressive chemicals and fundamentally prevents biofilm formation.
Eliminating dead legs represents another critical structural requirement. Dead legs are stagnant piping zones where fluid barely moves. CIP and SIP (Sterilize-In-Place) fluids must contact 100% of all wetted surfaces. You must ensure all interior welds are entirely crevice-free. Weld seams require careful grinding and mechanical polishing. Furthermore, the equipment must feature self-draining geometries. Any horizontal surface must possess a slight slope. This geometry ensures cleaning solutions drain completely by gravity. Pooling water breeds bacteria rapidly. A true sanitary design leaves zero residual liquid after a wash cycle concludes.
Fluid rheology completely dictates your impeller choice. You cannot use a generic mixing blade for complex food matrices. You must map specific impeller profiles to specific products. Viscosity and desired flow patterns determine operational success. Axial flow impellers push fluid up and down efficiently. They are perfect for raw milk blending and light beverages. Radial flow impellers push fluid outward against the tank walls. They excel in high-viscosity environments like yogurt fermentation or heavy cheese vats.
Managing shear rates is exceptionally critical in dairy processing. Excessive shear causes irreversible product damage. You must meticulously assess the risk of protein degradation. High shear forces can also destroy delicate fat globules. This destruction ruins the final texture of creams and sauces. Yogurt, for example, is a thixotropic fluid. Its viscosity decreases rapidly under shear stress. A high-shear blade destroys the delicate gel structure. This destruction causes severe whey separation (syneresis). You must compare low-shear hydrofoil impellers with high-shear dispersers carefully. Hydrofoils feature cambered blades to gently fold the product. Dispersers aggressively rip apart powder agglomerations. Your final product texture requirements absolutely dictate this choice.
Batch variance further complicates your impeller selection. Viscosity rarely remains static during food processing. You must factor in dynamic viscosity changes. Heating and cooling cycles alter fluid resistance significantly. Fermentation cycles transform thin liquids into thick, stubborn gels. Your chosen impeller must handle the maximum viscosity peak seamlessly. It must also maintain effective mixing during low-viscosity phases without causing vortexing. We highly recommend utilizing variable frequency drives (VFDs). These drives help manage dynamic shifts by adjusting rotational speeds on the fly.
Impeller Type |
Primary Flow Direction |
Shear Profile |
Ideal Food Application |
|---|---|---|---|
Hydrofoil |
Axial (Vertical) |
Very Low |
Raw milk blending, delicate sauces |
Pitched Blade Turbine |
Mixed Flow |
Medium |
Juice reconstitution, light syrups |
Rushton Turbine |
Radial (Horizontal) |
High |
Gas dispersion, fermentation tanks |
Anchor/Scraper |
Tangential |
Low |
High-viscosity yogurt, cheese curds |

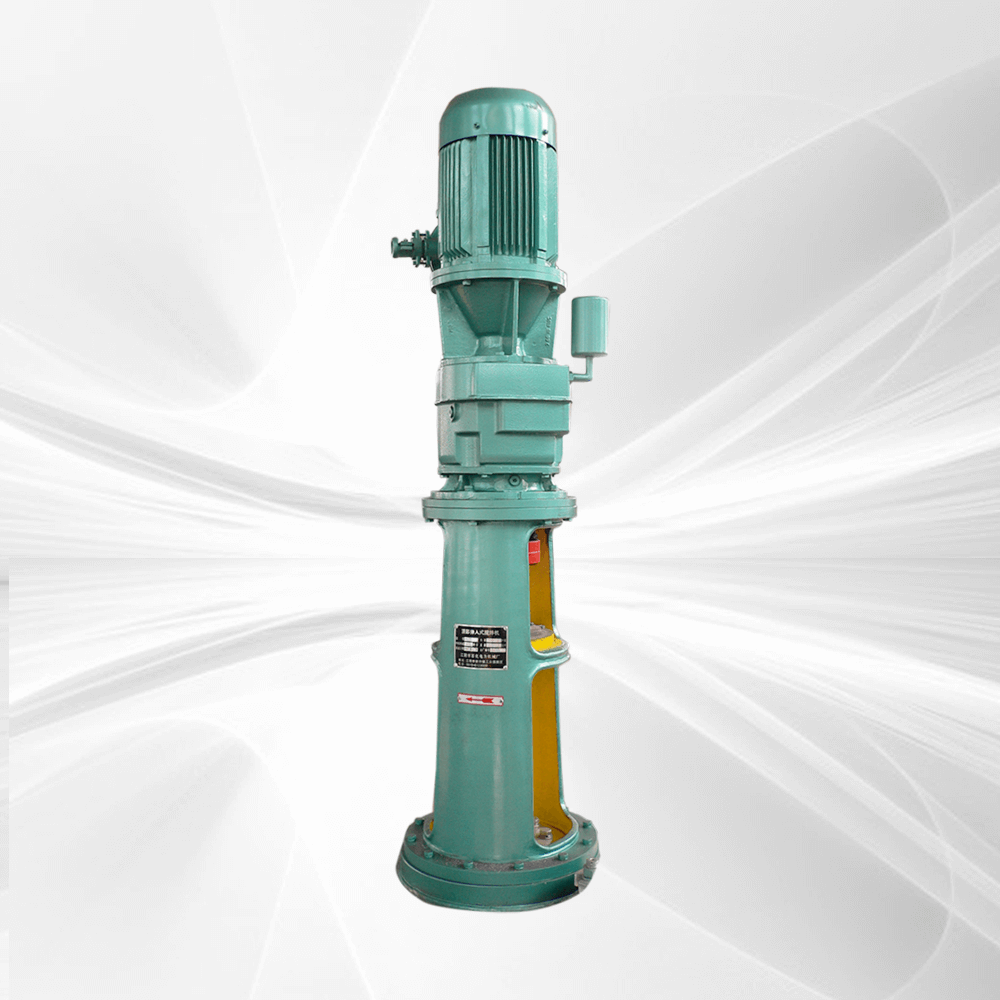

Your chosen mounting configuration directly influences daily contamination risks. We consider the top entry mixer to be the definitive hygienic standard. This vertical orientation keeps critical mechanical components away from the fluid matrix. Mechanical seals, gearboxes, and bearings remain safely above the product zone. Gravity actively prevents the product from entering the seal housing. This physical separation drastically reduces component wear. It fundamentally prevents catastrophic cross-contamination incidents during production runs.
However, top-mounted systems introduce specific structural challenges. You must address facility constraints carefully during the design phase. Headroom limitations often complicate long vertical shaft installations. Additionally, heavy motors require significant structural reinforcement. Thin-walled tank domes cannot support massive drives safely. You must engineer proper mounting flanges and internal gussets. This structural engineering prevents nozzle loads and bending moments. A wobbly shaft destroys mechanical seals rapidly. Rigid stability during vigorous mixing operations is absolutely mandatory.
Bottom and side-entry alternatives present unique hygienic challenges. We identify very narrow use-cases for these specific configurations. Massive silo blending often utilizes side-entry models. In these enormous tanks, vertical shafts become impractically long and mechanically unstable. But submerged shafts carry inherent, unavoidable risks. They require elevated maintenance protocols. Aseptic seal requirements become extremely stringent. You must mitigate leak and contamination risks proactively. Submerged seals face constant hydrostatic pressure. If they fail, entire batches suffer immediate microbial contamination. We strongly recommend double mechanical seals for any submerged application. These seals utilize a sterile, pressurized barrier fluid to ensure absolute aseptic conditions.
Precision engineering separates successful installations from costly failures. You must carefully calculate the tank geometry versus mixer output. Industry standards dictate strict engineering ratio requirements. The mathematical ratio between tank diameter, liquid depth, and impeller diameter matters immensely. A tiny impeller in a massive tank creates localized shear zones. The outer edges of the tank will remain completely stagnant. Conversely, a massive impeller in a small tank requires excessive electrical power. It also causes destructive surface vortexing and incorporates unwanted air into the product.
Hygienic baffling represents another non-negotiable requirement. Baffles physically prevent solid body rotation inside the vessel. Without baffles, the entire fluid mass simply spins in a uniform circle. This vortexing completely eliminates actual mixing action. However, traditional industrial baffles trap bacteria easily. You must understand the necessity of sanitary standoffs. Baffle plates must sit a specific distance away from the tank wall. This critical clearance allows CIP fluids to wash behind the plates effectively. Solidly welded baffles create severe dead legs. They guarantee failed hygiene audits and rapid bacterial proliferation.
Motor and drive specifications require equal engineering attention. Standard cast-iron motors have no place in a sanitary cleanroom. You must outline IP69K-rated washdown motors for your equipment specifications. These sealed motors withstand high-pressure, high-temperature chemical sprays daily. You must avoid painted housings entirely. Paint inevitably chips over time. Those paint flakes will fall directly into the open product. Furthermore, gearboxes must utilize certified food-grade lubricants exclusively. Standard industrial oils introduce unacceptable toxicity risks if a mechanical seal fails. Stainless steel motor shrouds provide an excellent additional layer of environmental protection.
Selecting the right vendor mitigates long-term operational risks significantly. You must evaluate operational performance metrics closely. Focus heavily on energy draw during peak viscosity phases. Examine the mechanical seal replacement frequency closely. Analyze the estimated CIP cycle times provided by the manufacturer. An inefficient washer design increases water and chemical usage daily. These operational performance metrics dictate the true value of the mixing equipment. A cheaper initial purchase often results in massive operational inefficiencies over time.
Validation and testing provide concrete proof of mechanical performance. Never purchase highly specialized equipment based on verbal promises alone. We strongly recommend requiring CFD (Computational Fluid Dynamics) modeling upfront. CFD software simulates fluid behavior inside your specific tank geometry. It maps velocity vectors and shear profiles accurately. This highlights potential dead zones before actual manufacturing begins. You should also demand FAT (Factory Acceptance Testing) documentation. FAT proves the equipment meets all structural criteria. We advise running Riboflavin dye tests during FAT. This proves the equipment's cleanability visually before it ever leaves the vendor's facility.
Use a strict vendor vetting checklist during your procurement phase. A reliable manufacturer will eagerly provide documentation.
Verify proof of active 3-A or EHEDG certifications. Avoid vendors who claim their equipment is merely "designed to" standards without actual certification.
Confirm the availability of localized spare parts. OEM mechanical seals must arrive quickly to minimize unexpected downtime.
Demand complete material test reports (MTRs). MTRs guarantee full metallurgical traceability for all wetted components.
Review documented pilot testing results for rheologically similar products.
Assess the vendor's ability to provide customized CIP spray ball mapping for your specific tank geometry.
A properly specified mixer acts as the critical control point for both product quality and food safety. The wrong choice invites rampant microbial growth. It compromises product texture and wastes valuable operational resources. Proper metallurgical selection, precise impeller design, and rigorous mechanical seal configurations guarantee optimal performance. Protecting your process requires moving beyond basic volume calculations to embrace true hygienic engineering principles.
Technical buyers must compile their process parameters meticulously. Gather your specific gravity data, dynamic viscosity ranges, and exact tank dimensions. Detail your existing CIP protocols clearly. Take these precise metrics and request verifiable case studies from shortlisted manufacturers. Demand small-scale pilot testing for complex food matrices. Rigorous upfront engineering protects your facility from devastating operational failures downstream.
A: The terms are often used interchangeably, but "hygienic" implies verifiable design methodologies. "Sanitary" is frequently used as a generic marketing term. True hygienic mixers possess active certifications from 3-A SSI or EHEDG. They feature specific surface roughness limits, self-draining geometries, and crevice-free welds. You should always demand official certification rather than trusting standard marketing claims.
A: Vertical shafts are inherently self-draining. Gravity naturally pulls CIP solutions and rinse water down the shaft efficiently. This eliminates the pooling risks commonly found in horizontal side-entry systems. Additionally, vertical shafts do not obstruct spray ball coverage as severely. The unobstructed fluid flow ensures faster, more efficient cleaning cycles, reducing total downtime and daily chemical usage.
A: No. Retrofitting standard equipment is structurally impossible and highly unsafe. Standard mixers utilize exposed threads, hollow shafts, and unpolished structural welds. These features create microscopic bacterial harborage points immediately. You cannot simply polish a standard industrial weld to meet rigorous 3-A standards. True hygienic equipment is engineered entirely from the ground up to eliminate all dead legs.
A: Top-mounted applications often utilize single dry-running seals, keeping moving parts safely above the product. However, submerged side-entry or bottom-entry applications absolutely require double mechanical seals. These double seals utilize a sterile, pressurized food-grade barrier fluid. The barrier fluid prevents bacteria from traversing the seal faces, ensuring absolute aseptic conditions during highly sensitive processing runs.
