In various industrial sectors, precise fluid mixing is a foundational part of the production process. From chemical blending to food homogenization and wastewater treatment, industrial mixers ensure that materials are uniformly distributed, reactions occur evenly, and operational efficiency is maintained. Among the different mixer types available, the top entry mixer is widely used for its powerful axial flow, excellent dispersion capabilities, and ease of maintenance.
This guide provides a comprehensive, step-by-step overview of how to properly install a top entry mixer, ensuring optimal performance and long-term reliability. Whether you're upgrading equipment or commissioning a new tank system, a well-installed mixer is essential for your production success.
To learn more about high-performance top entry mixers, including selection and customization, visit www.kehengmixing.com, a global supplier of industrial mixing solutions.

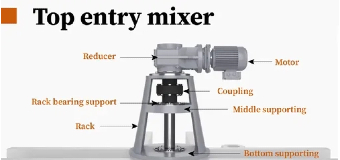

A top entry mixer is mounted vertically on the top of a tank or vessel. It typically features a motor, shaft, and impeller assembly that extends downward into the tank, where it stirs the liquid from above. This design creates a vertical mixing pattern (axial flow), which helps with bulk fluid movement and rapid homogenization.
Top entry mixers are used across industries for processes such as chemical reaction support, blending ingredients, dispersing solids, temperature uniformity, and preventing stratification. These mixers are particularly beneficial in tanks with high fluid levels or large volumes, where consistent bottom-to-top circulation is necessary.
They are commonly found in the following industries:
Chemical processing
Food and beverage production
Pharmaceutical manufacturing
Water and wastewater treatment
Paints, coatings, and adhesives
Energy and petrochemical operations
Top entry mixers are preferred in these industries due to their structural simplicity, efficiency, and adaptability to various tank designs and process requirements.
There are several reasons why top entry mixers are selected over other configurations:
They offer excellent mixing depth in tall or deep tanks
They are easy to access and maintain from the tank top
They are highly effective in handling high-viscosity fluids
They support a wide range of impeller types for different mixing actions
They can be customized with variable speed motors or explosion-proof components
They offer flexibility in batch and continuous processes
When you choose a high-quality top entry mixer from a reputable supplier like Keheng Industrial, you gain access to reliable, long-lasting equipment that enhances your productivity.
Before starting the installation process, several important steps should be completed to ensure smooth setup and reliable operation:
Confirm that the tank structure can support the weight and torque of the mixer
Ensure that the mounting location is clean, level, and properly reinforced
Double-check the electrical supply and make sure it matches the motor specifications
Review the shaft length, impeller type, and design compatibility with the tank
Have all tools, fasteners, and safety equipment ready for use
Verify that all installation personnel understand safety protocols
Proper preparation helps avoid costly mistakes and prevents damage to the mixer during installation. If you are unsure about the technical specifications or compatibility, the team at KEHENG is available to assist with pre-installation support.
For a successful installation, make sure you have access to the following:
Crane or hoist for lifting the mixer
Torque wrench and alignment tools
Wrenches and fasteners
Electrical wiring tools and connectors
Sealant and anti-vibration pads if required
Personal protective equipment including gloves, helmet, and harness
Clean the tank's top flange or platform where the mixer will be installed. Ensure it is level and structurally capable of supporting the mixer's weight and operational load.
Using a crane or hoist, carefully lift the top entry mixer and align it with the mounting hole on the tank. Avoid sudden movements or impacts that could damage the motor or shaft.
Slowly lower the shaft into the tank. The impeller should be positioned at the correct depth for effective fluid agitation—typically one-third to one-half the tank height, depending on the process. Ensure the shaft is straight and centered to avoid wobble or vibration.
Use bolts and lock washers to fasten the mixer base to the tank flange. Tighten each bolt in a crisscross pattern to ensure even pressure and stability. An anti-vibration pad can be added between the base and the tank surface if needed.
Connect the motor to the electrical system following the manufacturer's wiring diagram. Use proper cable protection and grounding to ensure safe operation. Explosion-proof or corrosion-resistant enclosures may be required in hazardous environments.
Use dial indicators or laser alignment tools to verify that the shaft is vertically aligned and not bent. Misalignment can lead to mechanical seal damage and increased power consumption.
If the mixer is fitted with a mechanical seal or stuffing box, inspect the components carefully and ensure they are installed according to the instructions. Check that couplings are secure and properly torqued.
Perform a dry run before adding any fluid to the tank. Start the motor and observe the shaft rotation and noise levels. Check for excessive vibration, heat, or unusual sounds. This test ensures the mixer is functioning correctly before use.
Fill the tank with the process liquid and start the mixer under normal operating conditions. Monitor motor current, temperature, and flow patterns. Make adjustments if necessary, especially if a variable frequency drive (VFD) is installed.
Install any required guards, label safety warnings, and document operating parameters. Confirm that all tools and lifting equipment are cleared from the area.
Regular inspection and maintenance will maximize the service life of your top entry mixer. Some best practices include:
Lubricate bearings and gearboxes according to the manufacturer's schedule
Check seal integrity periodically to avoid leaks
Inspect motor temperature and current draw during operation
Clean the shaft and impeller regularly to prevent buildup
Tighten bolts and check alignment during scheduled shutdowns
KEHENG provides detailed manuals and spare parts support to ensure that your top entry mixer remains in top condition. Their support team is available for technical assistance and troubleshooting.
KEHENG is a professional manufacturer specializing in industrial mixing technology. Their top entry mixers are designed for performance, safety, and adaptability. Whether your application involves aggressive chemicals, high-viscosity fluids, or sanitary requirements, KEHENG offers tailored solutions to meet your operational needs.
Benefits of choosing KEHENG include:
Custom mixer design for tank size and process conditions
High-efficiency impellers and shaft options
Energy-saving motors and VFD compatibility
Explosion-proof and food-grade models available
Global shipping and after-sales service
To find the ideal top entry mixer for your application, or to request a quote or consultation, contact them today.
Proper installation of a top entry mixer is essential for achieving consistent mixing, efficient energy use, and long-term equipment reliability. From selecting the right shaft and impeller to ensuring safe electrical connections and accurate alignment, each step matters. Following this installation guide will help you avoid common pitfalls and get the most out of your mixer investment.
If you're looking for high quality products with professional support, explore the top entry mixers offered by KEHENG. Their expertise and product range make them a reliable partner for all your industrial mixing requirements.
