In industrial processing, inadequate mixing leads to off-spec batches, excessive cycle times, and scaled-up operational losses. Selecting the right agitation configuration is a critical risk-management decision. Substandard blending equipment rapidly erodes your operational profit margins. Side-entry and submersible mixers certainly have specific niche applications. However, top-mounted configurations remain the industry standard for most complex fluid processing tasks. Process engineers rely on them heavily to maintain consistent product quality. They handle challenging rheologies efficiently across highly variable batch sizes. This guide outlines the precise engineering logic behind specifying a top entry mixer. We detail the core drivers for adoption and compare alternative agitation methods. We also explore the mechanical realities of structural implementation. You will learn the correct framework for evaluating various vendor solutions. This ensures you select the best mechanical design for your facility requirements.
Top entry configurations isolate critical mechanical components (seals, motors, gearboxes) from the fluid, heavily reducing maintenance downtime and cross-contamination risks.
They are the optimal choice for multi-phase mixing, high-viscosity fluids, and varying batch levels where side-entry mixers would fail or cause air entrainment.
Successful implementation requires strict attention to tank geometry, baffling requirements, and shaft deflection limits.
Vendor selection should prioritize manufacturers offering Computational Fluid Dynamics (CFD) modeling and guaranteed scale-up performance over purely off-the-shelf catalog purchasing.
Process engineers face immense pressure to optimize production. You must achieve uniform blending, solid suspension, or gas dispersion. Furthermore, you cannot compromise long-term equipment lifespan. Finding this balance requires robust mechanical solutions.

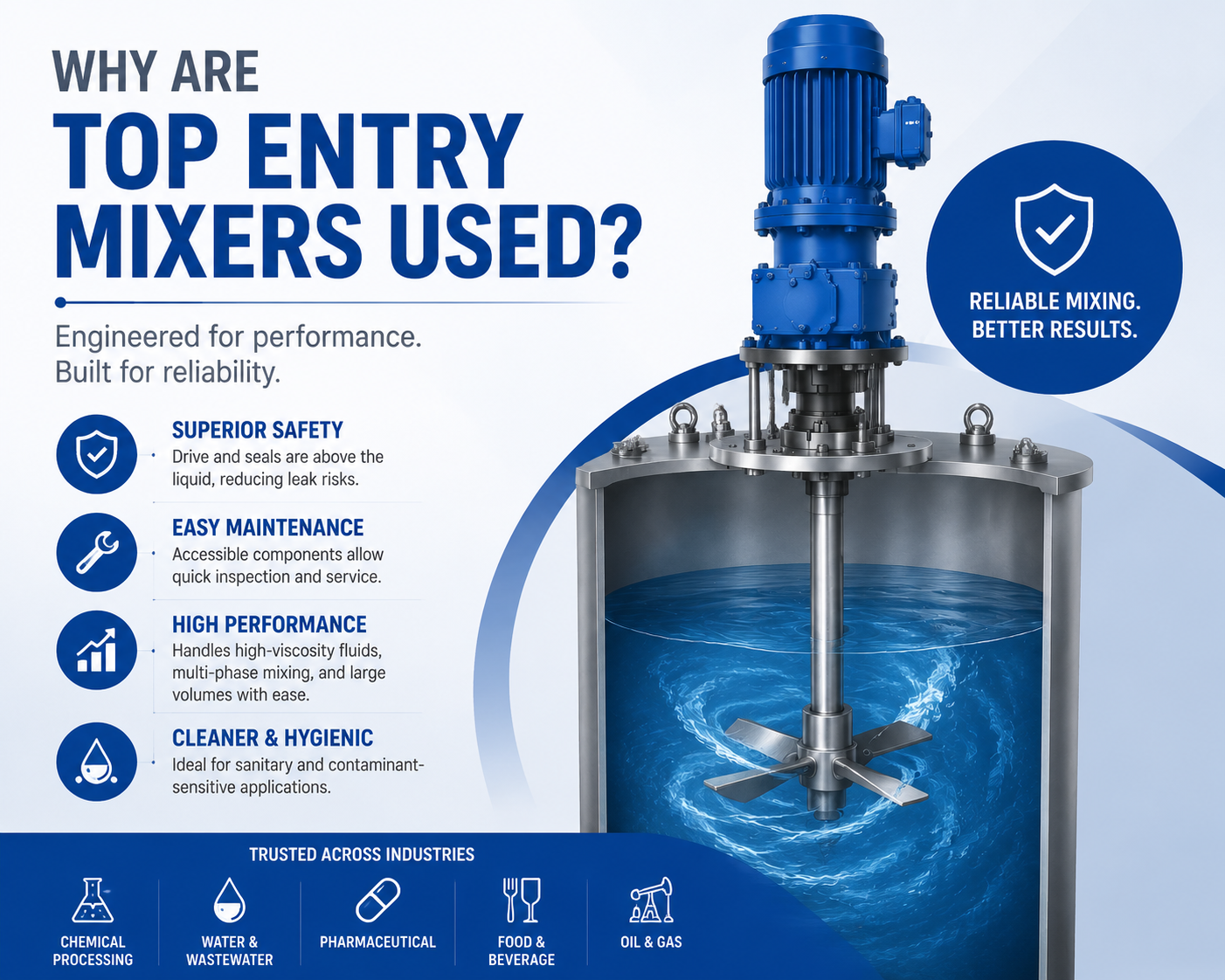

Mechanical isolation provides a primary engineering advantage. By mounting the drive system above the liquid level, operators eliminate submerged seal wear. Side-entry and submersible models inherently suffer from continuous liquid contact. This submerged contact causes frequent seal degradation. The overhead placement minimizes catastrophic leak risks substantially. It also simplifies standard maintenance access. Maintenance teams can easily service motors or gearboxes. They perform this work without draining the massive processing tank. This advantage saves countless hours of operational downtime.
Variable volume handling presents another significant operational driver. Side-entry models require a minimum fluid level constantly. If the fluid level drops too low, operators face problems. The impellers cause heavy splashing or catastrophic seal failure. Top-mounted systems resolve this issue entirely. Operators can process variable batch sizes safely and predictably. We achieve this capability by utilizing multiple impeller tiers. The shaft supports several mixing blades at different elevations. As the liquid level drops, lower impellers continue mixing seamlessly.
Handling extreme rheology demands immense mechanical power. Thick liquids require heavy-duty engineering. Top-mounted systems easily accommodate massive industrial gearboxes. These robust gearboxes deliver the high torque necessary for complex jobs. They easily agitate non-Newtonian, high-viscosity fluids. Heavy mineral slurries and dense synthetic polymers demand this immense force. Lesser mixing systems simply stall or burn out under such intense loads.
Selecting mixing equipment requires comparing mechanical tradeoffs. Engineers must evaluate capital expenditure against lifetime maintenance demands.
Let us first compare top-mounted systems against side-entry models. Side entry requires a lower initial capital cost. They also require significantly less overhead headroom. Facilities often prefer them for massive bulk storage tanks. Petroleum blending facilities utilize them heavily. However, they carry a highly elevated risk of mechanical seal failure. When a side seal fails, the consequences are severe. You must drain the entire tank to execute repairs. This causes massive production delays. Conversely, overhead systems require higher initial CAPEX. You must build structural mounting bridges. Yet, they drastically lower long-term maintenance costs. They also offer superior hydrodynamic performance for complex dispersion.
Next, we evaluate overhead systems against submersible alternatives. Submersible equipment proves useful in open wastewater basins. Mounting infrastructure is often impossible in these sprawling outdoor environments. However, top-mounted systems are strictly required for sanitary applications. The pharmaceutical and food processing industries demand uncompromising hygiene. Submerged motors create unacceptable cleaning-in-place (CIP) blind spots. Bacteria gather in these hidden submerged crevices rapidly. Overhead mixing systems remove the motor from the product zone. This ensures full compliance with stringent 3-A sanitary standards.
Mixer Configuration | Initial CAPEX | Maintenance Downtime | Sanitary Compliance | Best Application Fit |
|---|---|---|---|---|
Top Entry | High | Very Low | Excellent | Complex dispersions, variable batches |
Side Entry | Low | High (Requires tank draining) | Poor | Massive petroleum storage |
Submersible | Medium | Medium | Unacceptable | Open wastewater basins |
Proper sizing prevents premature mechanical failure. You must follow a disciplined engineering approach. Relying on guesswork guarantees inefficient production cycles.
Evaluation must always start by analyzing liquid properties. Fluid rheology and specific gravity dictate the entire design. Viscosity ultimately determines your required flow pattern. Low-viscosity applications require highly efficient axial flow. We specify marine propellers or hydrofoils for these thin fluids. High-viscosity fluids necessitate strong radial or tangential flow. You will need durable turbines or anchor impellers to move thick pastes.
Tank geometry impacts fluid dynamics heavily. A 1:1 to 1.5:1 height-to-diameter ratio serves as the industry standard. Taller tanks disrupt this ideal proportion. They require a much longer mixing shaft. You must install multiple impellers to prevent fluid stratification. Unfortunately, longer shafts increase the risk of dangerous mechanical deflection.
Simplified Flow Matrix Chart | ||
Fluid Viscosity (cP) | Optimal Flow Type | Recommended Impeller |
|---|---|---|
< 500 cP | Axial Flow | High-efficiency Hydrofoil |
500 - 50,000 cP | Radial Flow | Pitched Blade Turbine |
> 50,000 cP | Tangential Flow | Anchor or Helix |
You must correlate the impeller type directly to your operational outcome. Every process demands a specific shear rate. High-shear blades prove essential for rapid chemical emulsification. Low-shear hydrofoils suit delicate biological flocculation perfectly. Choosing the wrong blade destroys delicate product structures.
Assess gearbox service factor ratings rigorously. High continuous torque demands stress mechanical gears heavily. A heavily loaded top entry tank mixer requires a minimum service factor of 1.5. Many engineers specify 2.0 for highly fluctuating loads. This conservative rating prevents premature gear failure. It guarantees reliable operation under unpredictable dynamic stresses.
Theoretical designs often clash against physical installation realities. Engineers must mitigate structural risks before fabrication begins.
Center-mounted configurations in unbaffled cylindrical tanks create immediate problems. They induce solid-body rotation rapidly. The entire fluid mass spins as a single unit. A deep central vortex forms shortly afterward. This phenomenon results in zero actual mixing. It also causes severe air entrainment, destroying product purity. You must disrupt this circular flow pattern. Standard implementation requires three to four standard wall baffles. These vertical plates convert circular motion into vertical turnover.
Offset mounting offers a practical workaround for smaller vessels. Sometimes installing baffles proves entirely impractical. Small pharmaceutical tanks often lack interior space. You must calculate angle-offset mounting precisely. You tilt the shaft off the vertical axis. This disrupts the circular flow pattern effectively. However, it must not cause damaging asynchronous shaft vibrations. Incorrect offset angles destroy bearings within weeks.
Long overhung shafts remain highly susceptible to resonance. This presents a critical structural vulnerability.
Critical Speed Calculations: Engineering evaluations must rigorously identify the shaft's first critical speed. This is the RPM where violent resonance occurs.
Operating Margins: Ensure the operating speed remains safely below 80% of this critical threshold. Alternatively, keep it firmly above the threshold.
Vibration Control: Operating too close to critical speed causes catastrophic mechanical failure. The shaft bends, destroying seals and shattering gearboxes.
Choosing the right manufacturing partner ensures long-term project success. A poorly engineered system creates decades of operational headaches.
Implement a strict vendor evaluation matrix. Require vendors to provide CFD (Computational Fluid Dynamics) simulations. These visual reports prove dead-zone elimination for your specific tank geometry. Demand complete transparency on shaft runout tolerances. Request bearing L10 lifespan calculations clearly in their proposal. High-quality manufacturers proudly share these engineering documents.
Avoid manufacturers who force-fit pre-built catalog options. Every fluid process possesses unique hydrodynamic requirements. The right vendor engineers a top entry agitator around your specific process parameters. They do not restrict you to their current warehouse inventory. Custom engineering prevents massive energy waste.
Define your exact tank dimensions, including bottom shape and baffling.
Record accurate fluid properties across all expected temperature ranges.
Determine your daily duty cycle and baseline mixing goals.
Compile this data into a comprehensive RFQ sheet before initiating vendor contact.
This structured approach guarantees apples-to-apples quoting. It protects you from under-engineered equipment proposals.
Top-mounted systems remain the definitive baseline for rigorous industrial processing. They provide unmatched versatility across varying operational demands. They handle complex fluid dynamics effortlessly. Facilities rely on them to eliminate dead zones safely. The upfront engineering and CAPEX of a top-mounted system yield superior long-term financial returns when specified correctly. By isolating critical mechanical components from corrosive fluids, you drastically reduce maintenance downtime. You must prioritize accurate tank geometry assessment and precise impeller selection. Engage an experienced application engineer early in your facility design project. Model your tank geometry and fluid properties accurately. Define your specific performance goals clearly to custom-spec your next successful mixing system.
A: Generally, yes, if center-mounted in a cylindrical tank. Without baffles, the fluid simply spins in a vortex, resulting in poor blending. Offset or angled mounting can sometimes eliminate the need for baffles in smaller volumes by artificially disrupting the circular flow pattern.
A: While technically limited only by facility ceiling height and budget, shafts exceeding 20 to 25 feet face severe dynamic challenges. They often require steady bearings anchored at the bottom of the tank. This prevents excessive deflection and destructive harmonic vibration.
A: Air entrainment is typically caused by severe vortexing from a lack of baffling. It also occurs when operating the impeller too close to the fluid surface. Proper impeller placement, typically one to one-and-a-half impeller diameters off the bottom, combined with VFD speed control, resolves this issue.
