Selecting an industrial mixer is only half the engineering challenge. How you interface this critical equipment with your vessel ultimately determines your long-term operational viability. Simply placing a powerful motor on a tank will never guarantee success. Improper mounting infrastructure routinely causes severe shaft deflection, premature bearing failure, and severely compromised fluid dynamics. Engineers often underestimate the sheer physical forces at play during active blending cycles. These common oversights result in costly downtime, catastrophic mechanical damage, and completely ruined product batches. Evaluating mounts and stands requires looking beyond simple static weight limits. You must carefully account for dynamic loads, operational torque, and strict facility compliance standards. This guide will walk you through exact mounting types, stand configurations, and critical safety considerations to fully protect your infrastructure.
Mount selection is dictated by vessel design (open vs. closed, pressurized) and the specific torque generated by the industrial mixer.
Portable stands offer flexibility for multi-vessel operations but introduce height and structural resonance constraints.
Sanitary applications require specialized mounting (e.g., Tri-Clamp) to eliminate dead legs and support CIP/SIP protocols.
Off-center and angled mounting configurations can eliminate the need for tank baffles, directly impacting the mounting style required.
Equipment mounts act as the primary bridge between mechanical power and process fluid. They do much more than just hold machinery in place. They manage complex physical forces. If you ignore these forces, you risk severe operational failures.
Mixers generate immense rotational energy. As blades spin through dense liquids, they create powerful lateral forces. Fluid resistance pushes back against the impeller. This resistance travels up the shaft and directly into the mount. A weak mount cannot absorb these dynamic loads. It will vibrate excessively. This vibration transfers into the supporting floor or vessel roof. Over time, these unchecked forces cause severe structural fatigue. You must engineer your mounting infrastructure to absorb active torque, not just the static weight of the machine.
Rigid mounts directly extend equipment longevity. Properly aligned infrastructure prevents harmful shaft runout. Shaft runout occurs when the shaft deviates from its true center axis. This deviation puts immense stress on mechanical seals. It degrades bearings prematurely. It also forces the gearbox to handle sudden, violent shock loads. A secure mount keeps the shaft perfectly plumb. This alignment protects internal components. It ensures your machine operates smoothly over thousands of batch cycles.
Improper mounts create severe safety hazards. Structural failures can cause heavy machinery to collapse. Flexible or weak mounts also compromise vessel seals. Broken seals allow toxic fumes to escape. They also let external contaminants enter your high-value batches. Furthermore, shifting equipment alters the original mixing angle. This shift creates dead zones inside the tank. Fluids fail to blend properly. You end up wasting raw materials and losing valuable product yield.

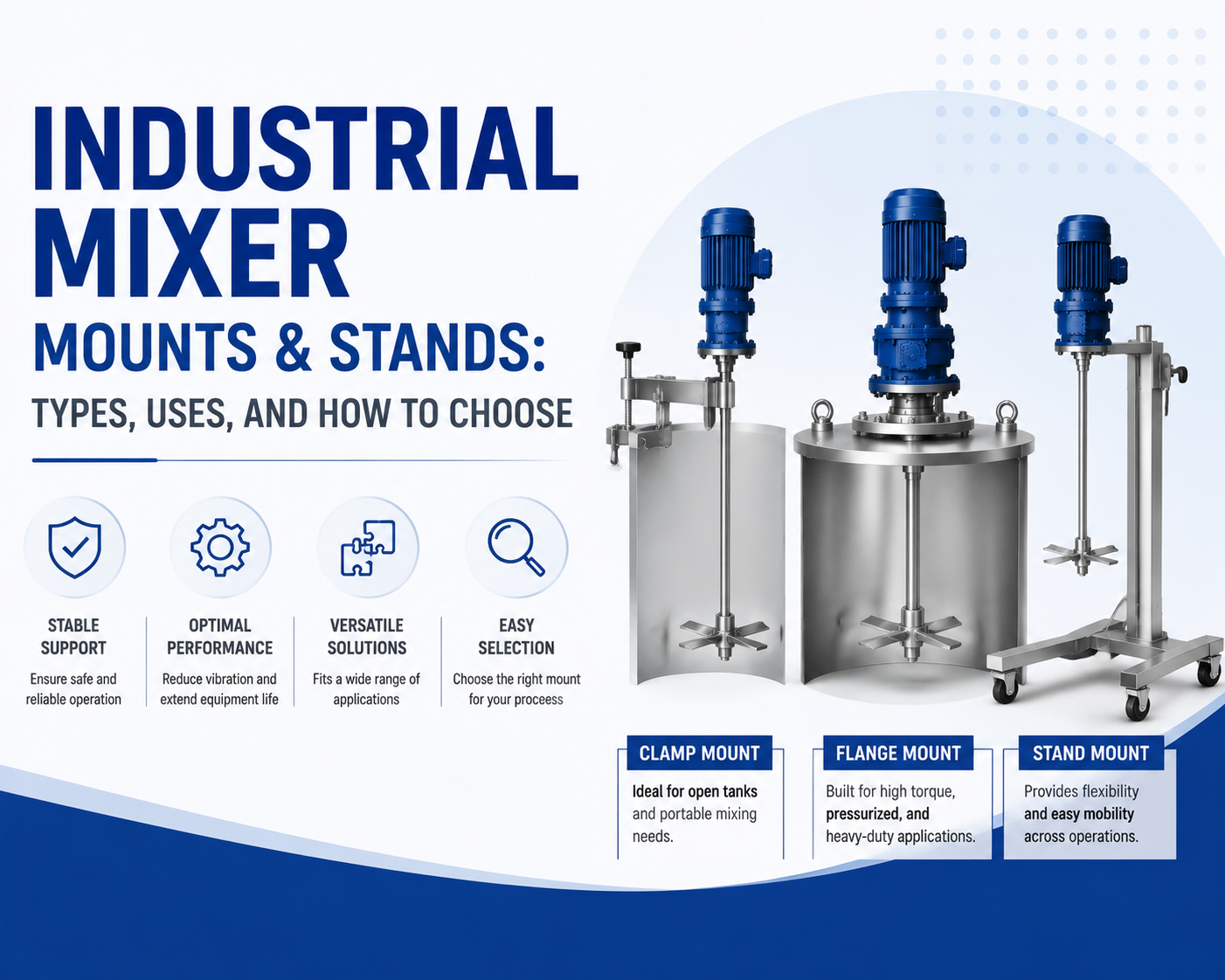

Matching the correct mount to your vessel architecture is essential. Different industries require vastly different mounting strategies. We categorize these mounts into three primary groups.
Clamp mounts offer ultimate portability. They use heavy-duty threaded clamps to grip the side of a tank.
Best for: Smaller, top-entering mixers. They work perfectly on open tanks, drums, and small mixing totes.
Evaluation: These mounts provide high flexibility. They carry a very low upfront cost. Operators can easily adjust the mixing angle by loosening the clamp. However, they possess strict limitations. You cannot use them in pressurized environments. They are also restricted to lower torque applications. High-viscosity fluids can easily tear a clamp mount off a thin-walled vessel.
Flange mounts represent the industry standard for rigid, permanent installations. Engineers bolt them directly to a matching flange on the vessel lid.
Best for: Heavy-duty applications. They dominate closed vessels, high-pressure reactors, and high-temperature environments.
Evaluation: Flanges provide maximum structural rigidity. They enable absolute vapor-tight sealing capabilities. You can utilize high-pressure mechanical seals within the flange housing. However, they require precise vessel engineering. You cannot easily move the machine once bolted down. Installation demands strict alignment to prevent shaft binding.
Sanitary environments prohibit standard threads or exposed bolts. Sanitary mounts use smooth, crevice-free connections.
Best for: Food, beverage, pharmaceutical, and cosmetic manufacturing facilities.
Evaluation: Tri-Clamp mounts offer rapid quick-disconnect capabilities. Operators can easily remove the unit for inspection. Engineers specifically design them to eliminate dead legs. They prevent bacterial pooling. They also withstand highly corrosive Clean-In-Place (CIP) and Steam-In-Place (SIP) chemical agents.
Mounting Style | Torque Capacity | Vessel Pressure | Sanitary Compliance | Mobility Level |
|---|---|---|---|---|
Clamp Mount | Low to Medium | Atmospheric Only | Poor | Very High |
ANSI/DIN Flange | Extremely High | High Pressure / Vacuum | Moderate (Depends on seal) | Permanent Fixed |
Tri-Clamp / Ferrule | Medium to High | Low to Moderate | Excellent (FDA/3-A) | Moderate (Quick Release) |
When tanks cannot support top-mounted equipment, external stands become mandatory. Choosing between floor and wall configurations depends heavily on your facility layout.
Mobile stands sit on heavy-duty casters. They feature a vertical lift column to raise and lower the equipment.
Uses: Multi-drum or tote mixing. Facilities use them when one industrial mixer must service multiple batches across different stations.
Evaluation Criteria: Look closely at the base footprint. A U-shape base slides perfectly around standard drums. An H-shape base offers broader stability for heavier loads. Evaluate the lift mechanism carefully. Pneumatic lifts require compressed air lines. Electric lifts need nearby power drops. Manual winch lifts demand physical operator effort. Always check the necessary counterweight requirements to prevent tipping hazards.
Stationary stands bolt permanently into the concrete facility floor. They lack casters but retain vertical lifting mechanisms.
Uses: Dedicated mixing stations. They are perfect for environments lacking sufficient overhead structural steel to hang a mixer.
Evaluation Criteria: Concrete anchoring requirements are critical. You must verify the floor depth can handle the anchor bolts. Evaluate the maximum vertical clearance needed to lift the shaft entirely out of the tank. Assess the stand's resistance to harmonic resonance. Heavy-duty tubular steel absorbs vibrations much better than thin-gauge metal.
Wall mounts attach directly to structural facility walls or heavy steel columns. They utilize a vertical slide track.
Uses: Highly space-constrained facilities. They work exceptionally well when floor space is non-existent, but vertical lift capabilities remain necessary.
Evaluation Criteria: The wall load-bearing capacity dictates feasibility. You cannot mount these to standard drywall studs. They require solid concrete or structural I-beams. Evaluate the stroke length to ensure the impeller clears the vessel lip. Also, consider ergonomic positioning. The operator must comfortably reach the control panel during the lifting sequence.
Selecting the optimal mount requires a methodical approach. You must align the hardware with fluid behavior and facility constraints. Follow this structured evaluation process.
Vessel Architecture & Process Environment: First, analyze the tank. Is it an open drum, a sealed reactor, or an IBC tote? Open tanks easily accept clamp mounts or mobile stands. Sealed reactors absolutely require welded flanges. Next, assess ambient constraints. Corrosive chemical fumes dictate stainless steel stands. Explosive environments require specialized grounding and pneumatic lifts. Washdown zones demand IP-rated electrical enclosures and sanitary mounts.
Fluid Viscosity & Torque Profile: Viscosity directly controls lateral force generation. Water-like fluids create minimal stress. Thick pastes or non-Newtonian fluids generate massive lateral forces. Ensure your chosen stand or mount is explicitly rated for the operating torque. Many engineers mistakenly size mounts based only on the static weight of the motor. This error guarantees structural failure. Always calculate the maximum torque at peak viscosity.
Mixing Angle & Baffle Requirements: Fluid flow patterns dictate mixing success. Center-mounted mixers in unbaffled tanks create severe vortexing. A vortex sucks air into the product and stops actual blending. To prevent this, tanks usually need internal baffles. However, you can eliminate baffles by using off-center or angled mounting. Certain mounts allow for strict 10-to-15-degree offset angles. This precise geometry breaks the vortex naturally. Assess if your chosen mount allows for rigid angular adjustments.
Scalability & Changeover Speed: Batch manufacturing requires rapid turnarounds. Evaluate how quickly operators can dismount the equipment. Tri-clamp mounts take seconds to remove. Flange mounts take hours. If your process requires frequent shaft swapping for different products, prioritize sanitary mounts or automated lift stands. Quick changeovers drastically improve facility throughput.
Always verify your ceiling height before ordering a lift stand. Engineers frequently forget to calculate the total extended height. The mast must raise high enough to clear the longest mixing shaft from the deepest tank. Measure twice to avoid hitting overhead pipes or HVAC ducts.
Mounting failures pose severe risks to both human safety and equipment integrity. You must proactively mitigate these engineering hazards.
Every physical structure possesses a natural frequency. Rotating equipment generates a forcing frequency. If the mixer's rotational frequency matches the stand's natural frequency, harmonic resonance occurs. The vibrations multiply exponentially. The entire stand will shake violently. This phenomenon leads to rapid, catastrophic structural fatigue. Welds will crack. Anchor bolts will shear. To prevent this, manufacturers often reinforce stands with thick gussets. Always ensure the operating speed remains well outside the resonant frequency zone of your chosen mount.
Insufficient mounting rigidity causes the shaft to act as a pendulum. As the impeller pushes fluid, the weak mount flexes backward. The shaft bends away from the center line. This deflection absolutely destroys mechanical seals. It creates tiny gaps where pressurized fluids escape. It also crushes internal gearbox bearings. You must guarantee the mounting plate is perfectly level and maximally rigid. Even a two-degree deflection at the top mount amplifies into massive movement at the impeller tip.
Safety regulations strictly govern industrial machinery. Lift stands present major crush hazards. You must mitigate pinch points along the vertical track. Pneumatic lifts require mechanical fail-safes. If air pressure suddenly drops, the mixer must not crash down into the tank. Manual clamping operations also have strict limits. Operators should not repeatedly lift heavy motors over their heads to attach clamp mounts. Ensure ergonomic limits align with standard OSHA lifting guidelines. Utilize counterbalance springs or automated lifts for anything exceeding human ergonomic thresholds.
The right mount or stand remains a non-negotiable component of overall equipment performance. It seamlessly bridges the critical gap between raw mechanical power and actual process efficiency. Without a robust foundation, even the most expensive impeller designs will fail to deliver results.
When determining your final configuration, follow a strict shortlisting logic. Base your initial elimination phase entirely on sanitary requirements and vessel pressure constraints. If you have a pressurized tank, immediately discard clamp mounts. Next, narrow down your remaining options by analyzing operating torque ratings against fluid viscosity. Finally, make your ultimate decision based on daily operational flexibility and changeover requirements.
Before issuing a purchase order, take proactive next steps. Always advise consulting directly with an applications engineer. They can calculate exact dynamic loads, run resonance simulations, and specify the exact mounting hardware needed. Securing the right foundation today protects your capital investment for decades.
A: Using a clamp directly on thin sheet metal risks buckling the tank wall under operating torque. You must install a rigid metal reinforcement plate at the clamping site to distribute the lateral stress. Alternatively, switch to an independent mobile floor stand to completely remove the load from the fragile vessel wall.
A: An ANSI flange uses a heavy bolted connection designed for permanent installation, extreme high pressure, and maximum rigidity. A Tri-Clamp mount uses a quick-release ferrule mechanism designed specifically for sanitary compliance. Tri-Clamps allow rapid disassembly for cleaning but cannot withstand the extreme pressures that ANSI flanges handle.
A: You must calculate both the static dead weight of the equipment and the dynamic operational torque. The dynamic load includes lateral forces generated by the impeller pushing against dense fluids. Consult a structural engineer to ensure your facility's wall anchors can withstand both the downward sheer force and the rotational twisting moments.
A: Standard stands often fail under the intense lateral forces created by non-Newtonian or high-viscosity fluids. You typically need a heavy-duty, reinforced stand featuring thicker tubular steel, wider base footprints, and heavier counterweights. Custom gusseting may also be required to prevent harmonic resonance and structural flex during peak mixing phases.
