Selecting industrial mixing equipment is rarely just about blending fluids. It is fundamentally about process optimization, batch consistency, and mitigating downtime. Every facility wants smooth operations. However, misunderstanding how a mixer interacts within fluid dynamics and tank geometry causes severe problems. You risk over-speccing motors, encountering mechanical seal failures, or finding dead spots in the batch. These failures waste energy and destroy product quality. Understanding the precise mechanical and hydrodynamic principles of a top entry mixer is the crucial first step. You need this knowledge to accurately size equipment and ensure reliable integration. In this guide, we break down the mechanical architecture and fluid behavior of these essential mixing systems. You will learn how to match impeller types to fluid viscosity. We also cover how to avoid common installation pitfalls. By the end, you will know exactly how to evaluate your next equipment upgrade for maximum reliability.

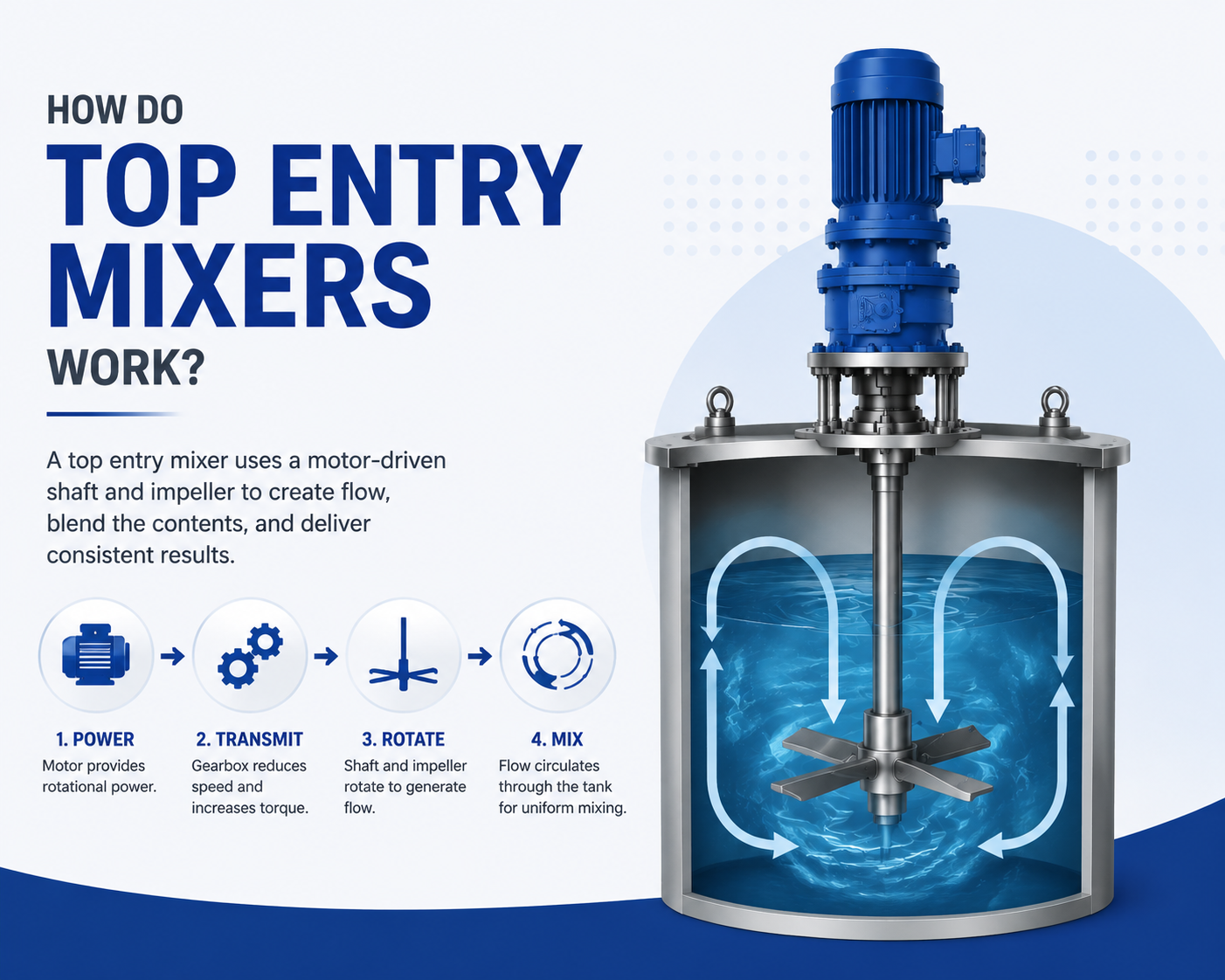

Top entry mixers rely on a vertically mounted drive system to transfer torque through a shaft and impeller, generating specific axial or radial flow patterns.
Evaluating a top entry agitator requires aligning the impeller type and motor horsepower with fluid viscosity, specific gravity, and tank volume.
Compared to side-entry or submersible alternatives, top entry configurations offer superior maintenance access and reduce the risk of catastrophic tank leaks.
Successful implementation demands rigorous evaluation of tank structural integrity, baffle placement, and sanitary compliance requirements.
The drive assembly serves as the beating heart of the system. Motors generate the primary rotational force. However, raw motor speed rarely matches mixing requirements. Gearboxes step in to reduce this speed. This speed reduction exponentially increases available torque. Engineers use direct-drive setups for small, low-viscosity applications. These setups operate efficiently at higher speeds. Conversely, gear-reduced drives remain absolutely mandatory for heavy-duty torque. When processing thick slurries, you need immense rotational muscle. Gear reducers deliver this power steadily without stalling the motor.
Shaft engineering involves precise mathematical calculations. Shaft length, diameter, and metallurgy dictate operational safety. Engineers carefully calculate a metric known as "critical speed." This represents the rotational frequency where natural resonance causes destructive vibrations. Industry professionals call this vibration "runout." Operating too close to the critical speed bends shafts and shatters seals. Designers prevent runout by increasing shaft diameter or utilizing exotic alloys. They ensure the operating speed stays comfortably below or safely above this critical threshold.
Impellers act as the physical interface translating mechanical energy into fluid motion. They dictate exactly how the batch behaves. Certain impellers excel at creating flow, known as turnover. High turnover rates blend miscible liquids quickly. Other impellers focus on creating shear. Shear physically tears particles apart for emulsification or size reduction. You cannot optimize both extremes simultaneously. Selecting the right impeller means deciding whether your process needs gentle, massive fluid movement or aggressive, localized tearing forces.
Seals represent a critical failure point in any vessel. They isolate the external environment from the internal batch. Operating pressure, vapor hazards, and regulatory compliance heavily dictate your choice.
Lip Seals: These provide basic dust and vapor protection. They work best in unpressurized, non-hazardous environments.
Stuffing Boxes (Packing): A traditional method utilizing braided materials. They require regular adjustment and tolerate minor shaft deflection.
Single Mechanical Seals: These utilize highly polished faces pressed together. They prevent leaks in moderately pressurized tanks.
Double Mechanical Seals: These use barrier fluids between two seal sets. They offer zero-emission containment for toxic, highly pressurized, or volatile chemicals.
Understanding flow patterns determines the success of your top entry agitator. Fluid moves in two primary directions. Axial flow pushes fluid parallel to the shaft. Pitched-blade or hydrofoil impellers force liquid down the center. The fluid strikes the tank bottom and travels up the walls. This pattern remains ideal for solid suspension and rapid blending. Radial flow pushes fluid outward. Flat-blade turbines hurl fluid horizontally toward the tank walls. It splits upon impact, traveling both upward and downward. Radial flow is ideal for gas dispersion and high-shear applications.
Flow Pattern | Impeller Types | Primary Application | Energy Efficiency |
|---|---|---|---|
Axial Flow | Pitched-Blade, Hydrofoil, Propeller | Solid suspension, blending, heat transfer | High (moves large volumes efficiently) |
Radial Flow | Rushton Turbine, Flat-Blade | Gas dispersion, emulsification, high shear | Low (consumes high power for shear) |
Unbaffled tanks create inefficient solid rotation. The fluid simply swirls in a circle. This phenomenon creates a deep vortex rather than actual mixing. Particles spin at the same speed as the fluid, preventing true blending. Standard baffle configurations solve this problem. Engineers typically weld four vertical plates to the inner tank walls. Baffles interrupt the swirling motion. They convert useless rotational energy into chaotic, vertical mixing currents. This disruption forces fluid layers to cross and blend rapidly.
Fluid thickness heavily impacts mixer performance. Engineers categorize fluid behavior into laminar and turbulent flow regimes. Water behaves turbulently. It splashes, eddies, and mixes easily. Thick polymers or creams exhibit laminar flow. They move in sluggish, parallel layers. High-viscosity products quickly overcome standard impellers. Standard blades just carve a hole in the thick fluid. We call this failure "tunneling." High-viscosity applications require specialized geometries. Anchor or helix impellers sweep close to the tank walls. They physically pull sluggish material into the active mixing zone.
Maintenance profiles differ wildly between these formats. Side-entry units sit near the bottom of the vessel. Servicing their mechanical seals requires completely emptying the tank. This causes massive production downtime. Top entry configurations keep the mechanical seal safely above the fluid line. Maintenance crews can service drives and seals while the tank remains full. Side-entry units do require lower structural support. Top-entry models demand higher initial capital and structural investments. However, they boast significantly lower long-term maintenance costs and reduce catastrophic leak risks.
Submersible mixers sit completely submerged within the fluid. They rely on the batch liquid for thermal management and cooling. If the tank runs dry, submersible motors overheat rapidly. Furthermore, submersibles present severe compliance limits. They feature intricate housings submerged in the product. This makes Clean-In-Place (CIP) and Sterilize-In-Place (SIP) procedures exceptionally difficult. Top-entry models keep complex drive components outside the product zone. This makes them the definitive choice for sanitary applications or high-temperature chemical reactions.
Mixer Configuration Comparison Chart | |||
Configuration | Maintenance Access | Sanitary Compliance | Structural Demand |
|---|---|---|---|
Top Entry | Excellent (Above fluid line) | High (Easy CIP/SIP) | High (Requires robust roof) |
Side Entry | Poor (Requires tank draining) | Moderate | Low (Mounts to lower wall) |
Submersible | Poor (Must hoist out of tank) | Low (Hard to clean) | Low (Uses guide rails) |
Selecting a top entry tank mixer requires analyzing tank geometry. The aspect ratio heavily dictates impeller configurations. We define aspect ratio as fluid height divided by tank diameter. A standard 1:1 ratio typically requires only a single impeller. Tall, slender vessels might have a 3:1 ratio. A single impeller cannot push fluid all the way to the top of a tall tank. These geometries dictate placing multiple impellers spaced evenly along a single long shaft. This ensures uniform blending across the entire vertical column.
Motor sizing is never a guess. Engineers must calculate precise requirements based on specific gravity and maximum viscosity. Specific gravity measures fluid density compared to water. Denser fluids demand more torque. Viscosity often changes during a process cycle. A mixture might start thin but thicken dramatically as a reaction progresses. You must calculate power requirements based on the maximum viscosity reached during the cycle, not just the baseline. Undersizing the motor leads to stalling, overheating, and catastrophic drive failure.
Modern production facilities require flexibility. Variable frequency drives (VFDs) provide this adaptability. VFDs allow operators to adjust motor RPM electronically. This prevents motor burnout when processing smaller batches or varying viscosities within the same tank. When fluid levels drop, running an impeller at full speed causes splashing and dangerous shaft vibrations. A VFD allows you to slow the agitator down safely. It provides ultimate flexibility across diverse product recipes.
Facilities often overlook structural integrity during installation. The tank roof or mounting bridge must withstand intense dynamic forces. It does not simply support the static weight of the equipment. Fluid resistance creates dynamic torque. Uneven fluid flow creates severe bending moments on the shaft. The mounting structure must absorb all these dynamic loads. A weak tank roof will flex, vibrate, and eventually crack. Engineers must reinforce mounting nozzles and bridge supports before installation.
Food, pharmaceutical, and cosmetic processing demand strict compliance standards. Equipment must prevent bacterial growth and cross-contamination.
Metallurgy: Wetted parts must utilize polished stainless steel, typically 316L. The surface finish must remove microscopic pits where bacteria hide.
Self-Draining Designs: Impellers and shafts must not trap liquids when the tank drains.
Compliant Seals: Seals must utilize FDA or 3-A compliant materials. They must withstand aggressive caustic cleaning chemicals during CIP cycles.
Installing heavy top-mounted equipment requires meticulous logistics. You must account for several critical factors before delivery.
Lifting Clearances: Ensure you have sufficient overhead crane capacity. Heavy gearboxes require careful rigging.
Headspace Requirements: Measure the ceiling height. You need enough vertical space to lower the long shaft into the tank without hitting the roof.
Alignment Tolerances: The mounting flange must sit perfectly level. Even a one-degree tilt will cause shaft runout and destroy the mechanical seal prematurely.
A top entry mixing system represents a highly engineered combination of parts. Drive mechanics, impellers, and tank geometry must work in absolute unison. Minor miscalculations in shaft length or impeller style cascade into major process failures. Proper specification ensures longevity, reduces energy consumption, and guarantees batch consistency.
Buyers must audit their fluid properties thoroughly. Document your maximum viscosity, specific gravity, and specific tank dimensions. Assess your maintenance capabilities before requesting quotes. Do not guess on structural requirements or flow regimes.
Your best next step involves consulting an application engineer. Professionals can run computational fluid dynamics (CFD) modeling. They can also perform pilot testing. Validate your exact parameters before committing to a specific configuration to ensure decades of reliable operation.
A: Practical limits depend on shaft length and structural support. Very long shafts experience severe vibration and require massive diameters to remain stable. For massive tanks exceeding 100,000 gallons, engineers often specify multi-mixer setups or integrate side-entry units to supplement the flow.
A: No. While most applications require baffles to prevent vortexing, exceptions exist. Highly viscous fluids typically do not require baffles because they do not swirl easily. Additionally, offset-angle mounting can disrupt flow patterns naturally, eliminating the need for internal baffles in smaller vessels.
A: Vortexing occurs when fluid spins uniformly. You prevent it by installing internal baffles to disrupt the rotation. If baffles are impossible due to sanitary reasons, you can mount the mixer off-center or at a slight angle. Reducing the motor speed via a VFD also helps minimize vortex formation.
A: Seal lifespan varies heavily based on the environment. Standard lip seals might need annual replacement. Well-maintained mechanical seals operating in clean, properly aligned environments can last three to five years. Abrasive fluids, shaft vibration, or dry-running will destroy any seal in a matter of weeks.
