Views: 0 Author: Site Editor Publish Time: 2026-06-02 Origin: Site
In industrial processing, inadequate or excessive mixing intensity directly impacts product yield, batch consistency, and energy consumption. Operators face constant pressure to hit exact flow targets. You must minimize waste and protect sensitive products. For facilities scaling production or handling variable fluid viscosities, understanding how to control mixing intensity is a critical procurement and operational requirement. You need reliable systems capable of adapting to changing fluid properties. If the equipment cannot adjust, you risk mechanical fatigue and ruined batches.

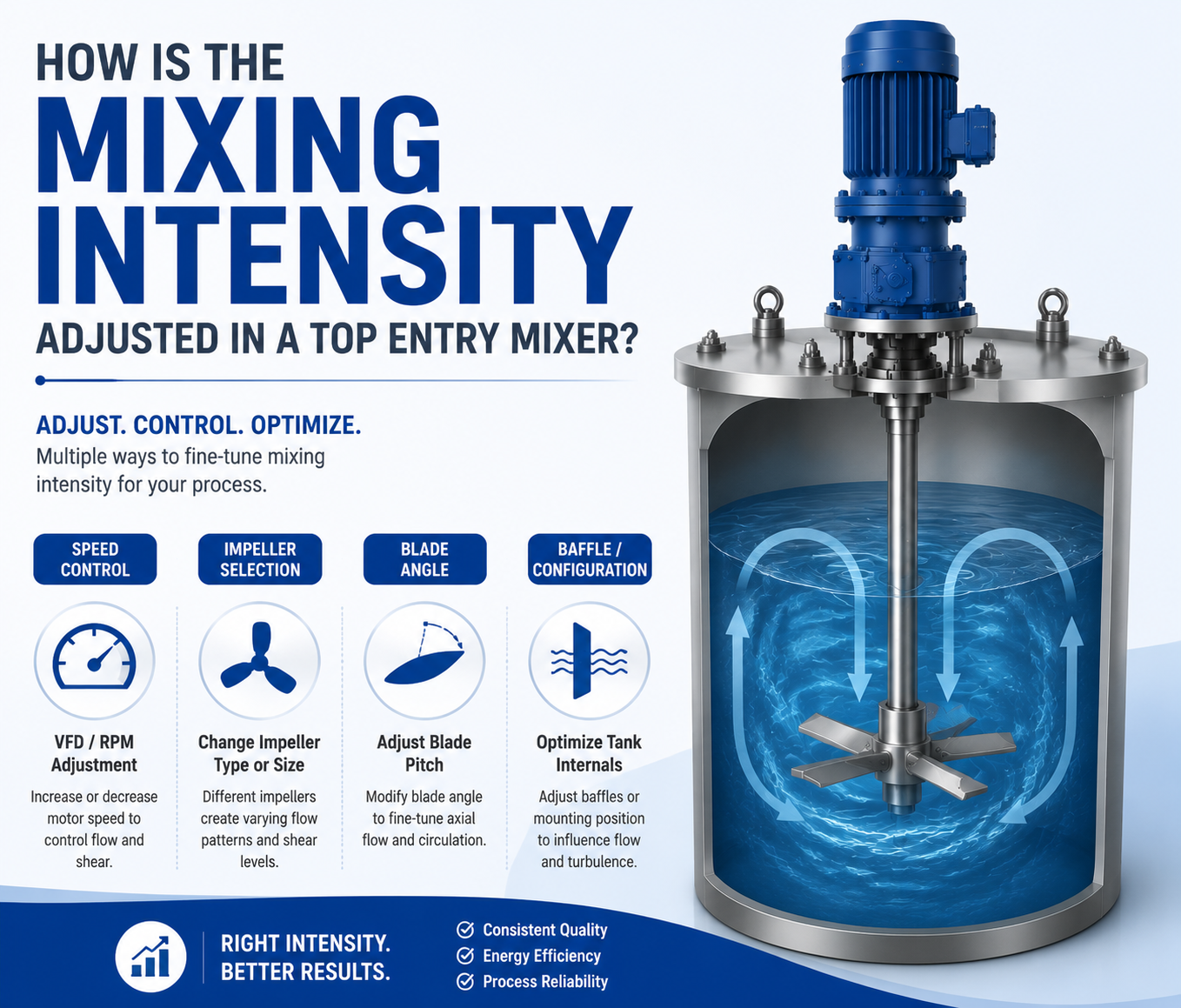

This guide breaks down the electronic, mechanical, and structural methods used to adjust mixing intensity. We provide a clear framework for evaluating and specifying the right equipment for your process. We will explore drive configurations, impeller geometries, and internal tank dynamics. You will learn how to optimize your fluid operations systematically.
Electronic Control: Variable Frequency Drives (VFDs) provide real-time, precise RPM adjustments for multi-product batch processing.
Mechanical Configuration: Gearbox ratios and motor sizing determine the baseline torque and maximum intensity limits of the mixer.
Impeller Geometry: Adjusting or swapping impeller types (axial vs. radial, blade pitch, diameter) fundamentally alters the balance between shear and bulk flow.
Internal Tank Dynamics: Modifying baffle configurations or off-center mounting angles changes flow patterns and turbulence without altering the motor speed.
"Intensity" is not a single, static metric. It represents the calculated balance between fluid velocity and turbulence. Engineers often refer to these forces as bulk flow and shear stress. You must balance them correctly to achieve your desired process result.
You cannot adjust intensity effectively without understanding your flow regime. Process engineers use the Reynolds Number (Re) to evaluate the fluid state. This dimensionless number helps you determine whether your process requires laminar, transitional, or turbulent flow states.
Chart: Flow Regimes and Reynolds Number Guidelines | |||
Flow Regime | Reynolds Number (Re) Range | Typical Fluid Behavior | Required Mixer Intensity Focus |
|---|---|---|---|
Laminar | Less than 10 | Highly viscous, slow-moving layers. | High torque, large impeller diameter. |
Transitional | 10 to 10,000 | Mild turbulence mixing into smooth flow. | Balanced speed and moderate shear. |
Turbulent | Greater than 10,000 | Rapid, chaotic fluid motion. Low viscosity. | High speed, localized high shear zones. |
You must define the exact outcome before selecting a method for intensity adjustment. A top entry mixer serves many different applications. Some processes require the exact suspension of heavy solids. Others need rapid gas dispersion or aggressive chemical reactions. Knowing the final goal dictates how you adjust the machine.
More power does not always mean better results. Over-mixing introduces severe risks. It can degrade shear-sensitive materials like specialty polymers, flocculants, or delicate biological cultures. Conversely, under-mixing leaves unblended zones. These dead spots cause inconsistent concentrations and ruin entire production batches.
Best Practice: Always measure the maximum allowable shear rate of your most sensitive product ingredient before increasing mixer RPM.
Common Mistake: Ramping up motor speed simply because the fluid looks "too still" at the surface, ignoring internal tank circulation.
Electronic speed control represents the most dynamic solution category for adjusting intensity. Modern facilities rely heavily on this technology to manage changing production demands.
Variable Frequency Drives (VFDs) modulate the electrical frequency supplied to the motor. By altering this frequency, they allow operators to scale rotational speed (RPM) up or down seamlessly. You can adjust the intensity from a digital control panel in real time. The motor responds instantly to changes in the frequency signal.
VFDs offer incredible flexibility. They are ideal for multi-product vessels. If you run distinct viscosities in the same tank, you need different mixing speeds. A VFD handles this transition easily. Furthermore, energy efficiency improves significantly. Ramping down speed during simple holding phases reduces power consumption. You stop wasting energy when aggressive blending is unnecessary.
You cannot attach a VFD to just any motor. VFDs require compatible inverter-duty motors. Standard motors rely on an internal fan for cooling. If you slow a standard motor down via VFD, the fan slows down too. The motor will overheat and burn out. Inverter-duty motors handle these low-speed thermal challenges safely.
Additionally, you must evaluate your operating environment. VFDs necessitate appropriate electrical enclosures. You must specify correct NEMA ratings to protect the sensitive electronics from moisture and dust. If you operate in harsh or explosive environments, strict ATEX or hazardous location compliance is mandatory.
Mechanical power transmission forms the baseline of your mixing intensity. While VFDs offer dynamic control, gearboxes and motor sizing establish the absolute limits of your equipment.
The gearbox dictates the mechanical reduction of motor speed. It translates high-speed motor rotation into the high-torque, lower-speed rotation required by a large agitator. Standard industrial motors usually spin at 1750 RPM. Most mixing processes require shaft speeds between 20 and 350 RPM. The gearbox bridges this gap.
You must choose between direct-drive and gear-reduced configurations. This choice permanently impacts your operational intensity.
Direct-Drive Mixers: These units lack a gearbox. They offer high RPM and low torque. They work perfectly for low-viscosity, high-shear applications like dissolving powders into water.
Gear-Reduced Mixers: These units feature a heavy-duty gearbox. They offer low RPM and high torque. They are essential for high-viscosity blending. You also need them for large-scale solid suspension where massive impellers push heavy fluids.
Gear ratio adjustments are typically permanent. Modifying them later requires significant downtime and expensive replacement parts. Buyers must establish their maximum required torque during the procurement phase. Do not rely on post-installation mechanical adjustments. Properly sizing the gearbox ensures your top entry agitator can handle the heaviest intended fluid without stalling.
Wet-end geometric adjustments offer a highly effective way to change intensity. The physical design of the impeller dictates how mechanical energy transfers into the fluid.
You can change several geometrical factors to alter the balance between bulk flow and shear. These physical modifications reshape the fluid dynamics entirely.
Impeller Type: Swapping impeller styles changes the flow direction. Axial flow turbines generate high flow with low shear. They push fluid up and down. Rushton turbines generate high shear and radial flow. They push fluid outward toward the tank walls.
Diameter and Pitch: Increasing the blade diameter increases power draw exponentially. Steepening the blade angle forces more fluid per rotation. Both actions drastically increase mixing intensity.
Multi-Stage Configurations: Deep tanks often suffer from poor mixing at the top. Adding a second or third impeller on the same shaft manages intensity evenly across the entire vertical fluid column.
Table: Common Impeller Types and Intensity Profiles | |||
Impeller Category | Primary Flow Direction | Shear Level | Best Application |
|---|---|---|---|
Marine Propeller | Axial (Downward) | Low | Blending light liquids, preventing settling. |
Pitched Blade Turbine | Axial / Mixed | Moderate | General chemical blending, heat transfer. |
Rushton Turbine | Radial (Outward) | High | Gas dispersion, aggressive emulsion creation. |
Assuming one impeller fits all processes is a common failure point. Fluid viscosity often changes as new product lines emerge. Procurement teams should prioritize mixers featuring interchangeable hubs. This modular design allows maintenance crews to unbolt blades and swap impeller styles easily when process variables change.
Vessel optimization is just as critical as motor speed. Modifying the environment around the mixer helps control fluid dynamics. You must manage how the fluid behaves inside the tank to harness the applied intensity.
Installing stationary baffles on the tank walls is a standard industry practice. Without baffles, a center-mounted mixer simply spins the fluid in a circle. We call this phenomenon solid body rotation. The fluid spins alongside the agitator, meaning very little actual mixing occurs. Baffles disrupt this circular rotation. They convert that swirling energy into intense vertical and radial turbulence. This maximizes the effective intensity of your equipment.
Sometimes you cannot use baffles. For example, strictly sanitary environments present severe cleaning risks. Baffles create crevices where bacteria can hide. If you cannot install baffles, you must adjust the mounting angle of your top entry tank mixer. Utilizing an offset or angled mounting creates an artificial baffle effect. The asymmetric position disrupts the vortex naturally, increasing mixing intensity without requiring internal hardware.
Sanitary applications require careful planning. Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols dictate specific internal configurations. You must ensure all wetted parts remain crevice-free. This compliance requirement severely limits traditional baffle use. Engineers must rely heavily on angled mounting and highly polished, specialized sanitary impellers to achieve target intensity levels.
Choosing the right adjustment strategy requires analyzing your production environment. You must align your mechanical choices with your daily operational realities.
We separate production environments into two primary categories. Each demands a different approach to intensity control.
Fixed Process (Single Product): If your facility produces the exact same fluid continuously, prioritize mechanical optimization. Select a precise gear ratio and a permanently affixed impeller. This strategy offers robust reliability. You avoid the complexities of electronic drives when the recipe never changes.
Variable Process (Contract Manufacturing): If your facility acts as a contract manufacturer, you process different chemicals daily. Prioritize VFDs and interchangeable impellers. This configuration provides maximum operational flexibility. You can adjust the intensity parameters instantly for each new batch recipe.
Do not guess your operational requirements. Define your exact fluid viscosities in centipoise (cps). Record specific gravities and detail your exact tank geometries. Once you gather this data, consult with an application engineer. They will run Computational Fluid Dynamics (CFD) modeling. CFD software simulates the fluid behavior digitally. This step guarantees you specify the perfect adjustment mechanisms before ordering the equipment.
Mixing intensity in top entry mixers is a composite output. You control it electronically via VFDs, mechanically via gear reductions, and geometrically via impellers and tank baffles. No single component operates in isolation. You must balance them all to achieve process success.
Relying on speed adjustments alone is highly inefficient. True process optimization requires aligning the motor torque, impeller design, and tank dynamics. Overlooking any of these factors leads to wasted energy and poor batch quality. Understand your process constraints fully before finalizing your equipment design.
Engage with a mixing specialist to audit your current fluid processes. Request a highly tailored quote based on your exact operational parameters. Taking these proactive steps ensures your equipment scales effortlessly with your production demands.
A: No. A larger motor increases available power, but without modifying the gearbox ratio, shaft diameter, or impeller size, the extra power will not efficiently translate into increased mixing intensity. It may also risk severe mechanical failure and bend the existing shaft.
A: As viscosity increases, the fluid naturally dampens turbulence. Maintaining the same mixing intensity in higher viscosity fluids requires higher torque, larger impellers, and often a transition from axial to radial flow designs to prevent fluid stagnation.
A: In most center-mounted applications, yes. Without baffles, the fluid will swirl in a vortex. This drastically reduces mixing intensity and causes excessive vibration. If baffles are impossible, you must use an angled, off-center mounting strategy.
A: If you need real-time, batch-to-batch adjustments, a VFD is superior. If you are permanently changing the production line to a completely different product type, a mechanical change to the impeller and gearbox provides the most reliable solution.
