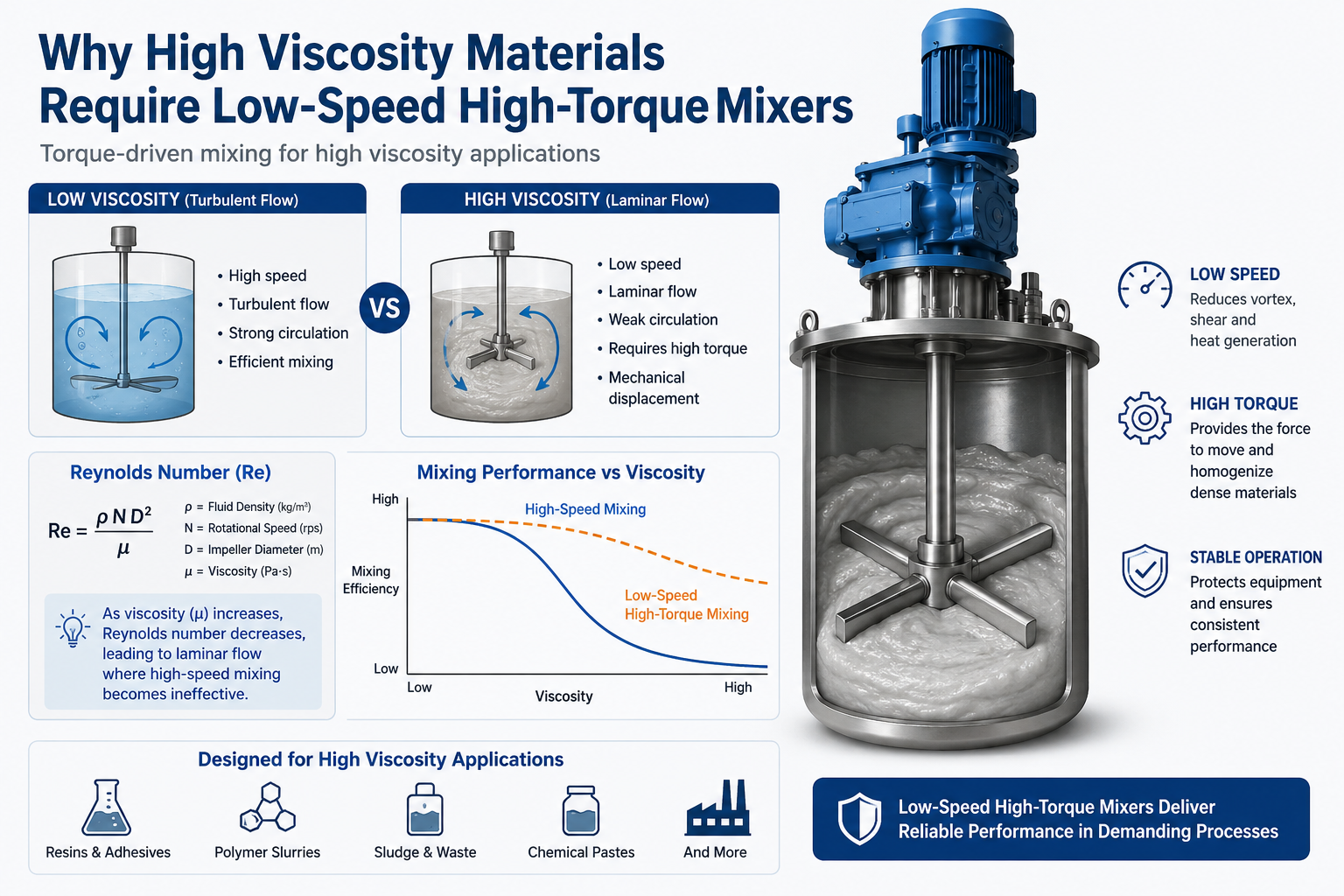

Why High Viscosity Materials Require Low-Speed High-Torque Mixers Why High Viscosity Materials Require Low-Speed High-Torque Mixers
When viscosity increases, mixing behavior shifts from turbulence-dominated flow to mechanical-force-driven movement. This fundamentally changes how industrial mixers must be designed.
Introduction
When mixing high viscosity materials such as resins, adhesives, polymer slurries, sludge, or chemical pastes, increasing rotational speed does not necessarily improve mixing performance.
In many cases, excessive speed leads to poor circulation, localized heating, motor overload, and even mechanical failure of the agitator system.
Instead, effective mixing in high viscosity applications depends primarily on torque rather than speed. This is why low-speed high-torque mixers are widely used in such processes.
1. What Happens When Viscosity Increases?
Viscosity is a measure of a fluid’s resistance to flow. As viscosity increases, internal resistance between fluid layers becomes stronger, making it more difficult for the fluid to move and mix.
Key Insight: High viscosity fluids cannot rely on turbulence — they must be mechanically displaced.
In industrial mixing systems, this shift leads to:
- Flow transitions from turbulent to laminar
- Internal circulation becomes weaker
- Mixing relies on mechanical pushing rather than fluid turbulence
- Energy distribution becomes non-uniform
This transition can be described using the Reynolds number:
Re = ρ N D² / μ
Where:
- ρ = fluid density
- N = rotational speed
- D = impeller diameter
- μ = viscosity
As viscosity (μ) increases, Reynolds number decreases, leading to laminar flow conditions where conventional high-speed mixing becomes ineffective.
2. Why High-Speed Mixing Becomes Inefficient
In low viscosity systems such as water-like liquids, high-speed rotation generates turbulence that enhances mixing efficiency.
However, in high viscosity fluids, this mechanism breaks down.
Increasing speed in high viscosity applications often reduces mixing efficiency instead of improving it.
This can result in:
- Localized vortex formation instead of full circulation
- Poor bulk movement of fluid
- Air entrainment in open tanks
- Excessive shear stress on sensitive materials
- Heat generation due to friction
- Mechanical stress on shaft and seals
Instead of achieving uniform mixing, energy is wasted locally without effective tank homogenization.
3. Why Torque Becomes More Important Than Speed
In high viscosity mixing, resistance from the fluid becomes the dominant force opposing motion.
Low viscosity → speed-driven mixing
High viscosity → torque-driven mixing
Torque represents the ability of the mixer to overcome resistance and move bulk material.
In laminar flow conditions, fluid movement depends primarily on mechanical displacement rather than turbulence.
Therefore, high viscosity mixing systems are designed with:
- Lower RPM
- Higher torque output
- Larger impeller diameter
- Strong gearbox systems
4. Gearbox and Motor Selection in High Viscosity Mixing
In high viscosity applications, the gearbox is a critical component in system performance.
It is responsible for converting motor speed into usable torque under heavy load conditions.
Key requirements include:
- Stable torque output under resistance
- Controlled startup under high load
- Thermal stability during continuous operation
- Protection of motor and shaft system
Variable frequency drives (VFDs) are often used to optimize startup and operational stability.
5. Engineering Considerations in Mixer Design
Beyond viscosity, several additional factors must be considered:
- Tank geometry (height-to-diameter ratio)
- Baffle configuration
- Solid content percentage
- Heat transfer requirements
- Shear sensitivity of the material
- Operating temperature and pressure
These parameters directly influence impeller selection, shaft design, and motor sizing.
6. How KEHENG Designs High Viscosity Mixing Systems
At KEHENG, mixing systems are engineered based on real process conditions rather than standard templates.
Each system is designed with:
- Customized torque calculation based on actual process data
- Optimized impeller geometry for specific viscosity ranges
- Reinforced shaft and sealing systems for heavy-duty operation
- Matching gearbox and motor configuration for stable performance
- Tank-specific design for full volume circulation
This ensures reliable performance even in demanding industrial environments.
Conclusion
High viscosity mixing is fundamentally different from low viscosity blending. As viscosity increases, turbulence decreases and mechanical resistance becomes the dominant factor in system design.
This is why low-speed high-torque mixers are essential—they provide the mechanical force required to move and homogenize dense materials effectively without causing instability or equipment damage.
Selecting the correct mixer requires a balance of viscosity, torque, tank geometry, and process conditions.
Need engineering support?
If you need assistance selecting the right mixing solution for your application, KEHENG engineers can evaluate your process conditions and provide a tailored recommendation based on viscosity, tank size, and operating requirements.
Frequently Asked Questions (FAQ)
Why is low-speed mixing better for high viscosity fluids?
High viscosity fluids have low flowability and reduced turbulence. High-speed rotation creates local shear and vortex instead of full circulation. Low-speed high-torque mixing ensures stable bulk movement and effective homogenization.
What is the difference between torque and speed in mixing?
Speed determines how fast the impeller rotates, while torque determines the force applied to move resistant materials. In high viscosity applications, torque becomes the dominant factor for successful mixing.
What type of mixer is best for high viscosity materials?
Anchor agitators, helical ribbon mixers, and planetary mixers are commonly used for high viscosity fluids due to their ability to generate high torque and promote full tank circulation.
Can high speed improve mixing efficiency?
In low viscosity fluids, yes. However, in high viscosity systems, increasing speed often reduces efficiency and increases energy loss, heat generation, and mechanical stress.
How do I choose the right mixer for my process?
The selection depends on viscosity range, tank size, solid content, and process conditions. KEHENG engineers typically evaluate these parameters to recommend a suitable torque and impeller configuration.
