Views: 0 Author: Site Editor Publish Time: 2025-07-02 Origin: Site
Industrial mixers are essential in many industries, impacting product quality and operational efficiency. Choosing the right type can be challenging, with side-entry and top-entry mixers being two popular options.In this article, we’ll explore the key differences between these two types. We’ll guide you through the factors to consider when selecting the best mixer for your needs.

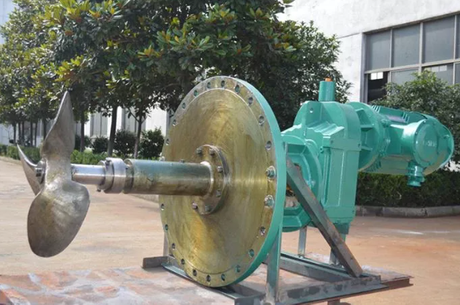

Side-entry mixers are installed through the side of the tank, offering a lateral approach for mixing. This type of mixer is typically used for larger tanks where the diameter is greater than the height. It’s often chosen when there isn’t enough ceiling clearance for a top-entry mixer.
Mining: To mix and process materials.
Wastewater Treatment: For blending chemicals and water.
Food Processing: Used in large vats for blending ingredients.
Easy Access for Maintenance: They allow easier access compared to top-entry mixers.
Cost-Effective: In some tank configurations, side-entry mixers can be more affordable.
Higher Energy Use: They generally consume more energy, needing 3-5 times more than top-entry mixers.
Less Efficient Mixing: They can sometimes result in less consistent mixing, especially in large tanks.

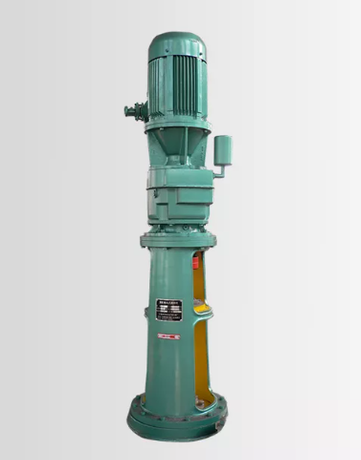

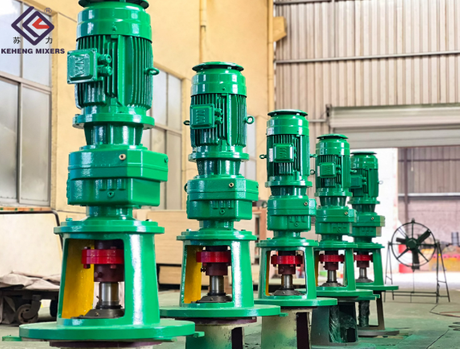

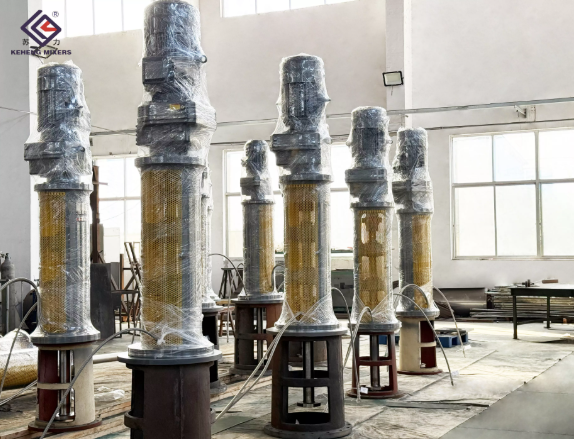

Top-entry mixers are mounted on top of the tank, either bridge-mounted for open-top tanks or flange-mounted for closed tanks. They work well for taller tanks with smaller diameters, providing efficient mixing from top to bottom.
Chemical Processing: For thorough mixing of chemicals and solvents.
Food and Beverage Production: Used for blending and emulsification.
Pharmaceuticals: Ensures consistent product quality.
Energy Efficiency: They use significantly less energy, often 3-5 times less than side-entry mixers.
Better Mixing Control: Top-entry mixers offer more precise control, ensuring a more consistent mix.
Higher Installation and Maintenance Costs: These mixers can be more expensive to install and maintain.
Space Requirements: They need more ceiling clearance, which can be an issue in certain facilities.
Feature | Side Entry Mixer | Top Entry Mixer |
Mounting Location | Mounted on the side of the tank | Mounted on top of the tank |
Tank Compatibility | Best for wider tanks | Best for taller, narrower tanks |
Mixing Efficiency | Less consistent mixing, especially in large tanks | Consistent axial flow for thorough mixing |
Energy Consumption | Requires 3-5 times more energy | More energy-efficient, reduces costs |
Maintenance Costs | Higher due to tank draining and seal maintenance | Lower due to easier access and fewer repairs |
Side-entry mixers are mounted through the sidewall of the tank, while top-entry mixers are installed on top of the tank. This difference in mounting location makes each type suitable for different tank shapes. Side-entry mixers are ideal for wide tanks, especially when the height is smaller than the diameter. In contrast, top-entry mixers are better suited for taller, narrower tanks, providing efficient mixing for these configurations.
Side Entry Mixer Mounting: Installed on the side, best for wider tanks.
Top Entry Mixer Installation: Mounted on top, ideal for taller tanks.
Side-entry mixers push fluid along the tank walls, which can lead to uneven mixing in some cases. Top-entry mixers, however, create axial flow, circulating fluid from top to bottom. This results in a more consistent and efficient mix, particularly for high-viscosity liquids. Therefore, top-entry mixers typically provide better mixing performance, ensuring uniformity across the tank.
Side Entry Mixer Fluid Movement: Fluid flows along the tank walls, potentially causing inconsistent mixing.
Top Entry Mixer Mixing Characteristics: Creates consistent axial flow, ideal for even mixing.
Side-entry mixers consume 3-5 times more energy than top-entry mixers. This higher energy requirement increases operating costs and reduces long-term efficiency. The extra energy used can add significant costs, especially in large-scale or continuous operations. On the other hand, top-entry mixers are much more energy-efficient, consuming significantly less power, which leads to reduced operating costs over time.
Side Entry Mixer Energy Consumption: Requires more energy, which raises operational costs.
Top Entry Mixer Energy Consumption: More energy-efficient, reducing long-term costs.
Side-entry mixers tend to have higher maintenance needs, mainly because the tank must be drained to perform repairs. Additionally, mechanical seals in these mixers are critical and can be expensive to maintain or replace. These factors lead to higher maintenance costs and increased downtime. In comparison, top-entry mixers are generally easier to maintain due to their design, requiring less downtime and fewer repairs, which results in lower maintenance costs.
Side Entry Mixer Maintenance Costs: Higher maintenance costs due to draining tanks and seal replacements.
Top Entry Mixer Maintenance: Easier to maintain and repair, leading to lower costs.
Side-entry mixers are ideal for situations where tank geometry and space limitations play a critical role. These mixers work best in large, wide tanks, particularly when the tank’s height is not significant compared to its diameter. Side-entry mixers are also a good choice when there is limited ceiling clearance, making top-entry installation impractical.
Common industries and use cases for side-entry mixers include:
Mining: For blending and processing materials in large tanks.
Wastewater Treatment: To mix chemicals and water in large holding tanks.
Oil & Gas: Often used in storage tanks for mixing crude oil and other chemicals.
When to Choose a Side Entry Mixer: Wide tanks, limited ceiling space, large-scale mixing.
Top-entry mixers are best suited for taller tanks, especially those where the diameter is smaller than the height. These mixers are highly effective when energy efficiency is a priority, as they consume less energy than side-entry mixers. They are also ideal for processes where precision mixing and control are essential.
Common industries and use cases for top-entry mixers include:
Food Processing: Used for mixing ingredients in tall, narrow tanks, ensuring uniformity.
Chemical Production: Ideal for precise mixing of chemicals in a controlled environment.
Pharmaceuticals: Ensures consistent product quality and efficient mixing of viscous substances.
When to Choose a Top Entry Mixer: Tall, narrow tanks, energy-efficient needs, precise mixing requirements.
Side-entry mixers usually come with a higher initial cost due to their specialized installation and design. Over time, they can result in higher operating expenses because of increased energy consumption and more frequent maintenance. The need to drain tanks for repairs and the cost of replacing mechanical seals contribute to these additional costs. However, they may be more cost-effective for certain configurations, especially when there’s limited ceiling clearance.
In contrast, top-entry mixers have a higher initial investment but offer long-term savings. They are more energy-efficient and require less maintenance. Their design reduces downtime and repair costs, ultimately lowering operational expenses over time.
Side-entry mixers can sometimes cause uneven mixing because of the lateral flow, particularly in large tanks. This can result in inconsistent product quality. On the other hand, top-entry mixers provide axial flow, which ensures a more uniform and consistent mix. This level of control is especially important in industries like food processing and pharmaceuticals, where product consistency is crucial.
For precise control over mixing and better product quality, top-entry mixers are often the preferred option.
1. What is the main difference between a side-entry mixer and a top-entry mixer?
Side-entry mixers are mounted on the side of the tank, making them ideal for wide tanks with limited ceiling space. In contrast, top-entry mixers are mounted on top of the tank and are more suitable for taller, narrower tanks, providing more consistent and efficient mixing.
2. Which mixer is more energy-efficient, a side-entry or a top-entry mixer?
Top-entry mixers are generally more energy-efficient, requiring 3-5 times less energy compared to side-entry mixers. This makes them a better option for reducing operating costs over time.
3. In which industries are side-entry mixers typically used?
Side-entry mixers are commonly used in industries like mining, wastewater treatment, oil and gas, and large-scale food processing. They are particularly useful for mixing in large tanks with wide diameters.
4. What are the maintenance differences between side-entry and top-entry mixers?
Side-entry mixers usually require more maintenance due to the need for tank draining and the complexity of mechanical seals. Top-entry mixers, however, are easier to maintain, with fewer repairs and easier access, leading to lower maintenance costs over time.
5. When should I choose a side-entry mixer over a top-entry mixer?
You should choose a side-entry mixer when working with larger, wider tanks or when ceiling space is limited. It’s also a good option if you need easier access for maintenance and are dealing with less viscous materials.
Side-entry mixers are best for wide tanks with limited ceiling space, while top-entry mixers excel in taller, narrower tanks. Top-entry mixers are more energy-efficient and require less maintenance. When choosing the right mixer, consider your tank design, energy needs, and mixing requirements. Ultimately, selecting the best mixer ensures long-term efficiency and consistent product quality.
