Top Entry Agitator Setup: Best Practices for Maximum Performance

In industrial mixing processes, the effectiveness of your equipment directly impacts product quality, consistency, and operational efficiency. Among the various types of agitators used in mixing applications, the top entry agitator remains one of the most popular and effective solutions across multiple industries including chemicals, pharmaceuticals, food processing, and wastewater treatment.

When set up correctly, a top entry agitator provides uniform blending, stable fluid motion, and reliable performance for both low- and high-viscosity materials. However, to achieve maximum performance, a strategic approach to installation, configuration, and operation is essential. In this article, we will explore the best practices for setting up a top entry agitator, ensuring optimal mixing results and extended equipment life.

If you're looking for high-quality, customizable top entry agitators that are designed for your exact process requirements, we recommend exploring the solutions provided by KEHENG. Their engineering expertise and broad product range make them a reliable partner for mixing success.

Understanding the Top Entry Agitator

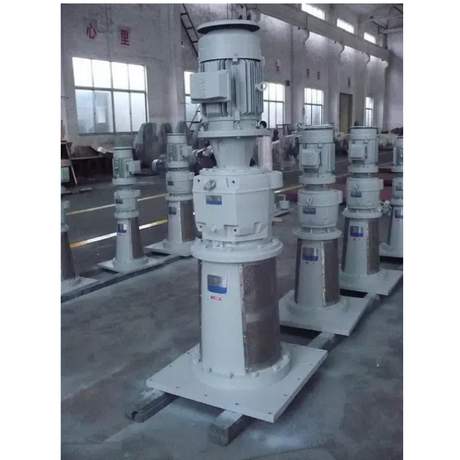

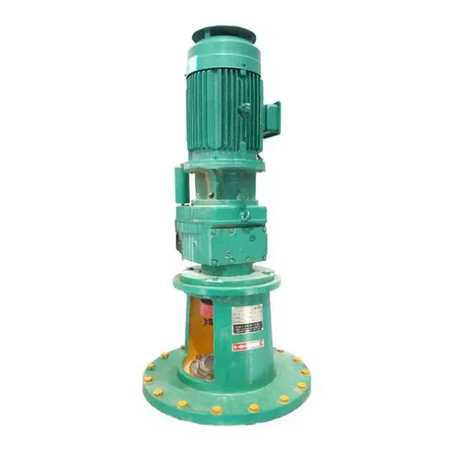

A top entry agitator is a mixing device mounted vertically at the top of a tank or vessel. It typically consists of a motor, gearbox, drive shaft, and impellers (such as hydrofoils, turbines, or pitched blades) that extend downward into the fluid. This configuration allows for strong axial and radial flow, making it suitable for homogenization, heat transfer, solid suspension, gas dispersion, and chemical reactions.

Top entry agitators are highly adaptable and can be engineered to meet specific mixing requirements such as:

• Viscosity range

• Batch or continuous operation

• Tank volume and geometry

• Temperature and pressure conditions

• Corrosive or abrasive media

Their flexibility and performance make them indispensable in both small-scale and large-scale industrial applications.

Why Proper Setup Matters

While top entry agitators are powerful and versatile, their performance depends significantly on how well they are installed and configured. A poorly set up agitator can lead to problems such as:

• Dead zones or uneven mixing

• Excessive energy consumption

• Vortex formation or cavitation

• Mechanical failure or premature wear

• Inconsistent product quality

By following industry best practices for setup, you can avoid these pitfalls and unlock the full potential of your equipment.

Step-by-Step Setup Guide for a Top Entry Agitator

Tank Assessment and Preparation

Before installation, evaluate your mixing tank's size, shape, wall thickness, and structural integrity. The tank must be capable of supporting the load and torque of the agitator. Ensure that the tank top can accommodate a mounting flange or bracket, and that it is properly reinforced for vibration resistance.

Agitator Mounting Configuration

The mounting method—fixed plate, clamp, or flange—should be selected based on the process requirements and tank design. In many cases, a flange-mounted agitator provides better stability, alignment, and sealing.

Make sure the agitator is installed perpendicular to the tank top unless an angled entry is specifically required for your process. Proper alignment is critical to avoid shaft deflection, bearing stress, and mechanical imbalance.

Impeller Selection and Positioning

Choose an impeller type that matches your mixing objective. Hydrofoil impellers are ideal for axial flow and energy efficiency, while pitched-blade turbines offer strong blending capabilities for higher viscosities.

The impeller should be positioned at an appropriate height inside the tank, typically 1 to 1.5 impeller diameters off the bottom for optimal circulation. For tall tanks, multiple impellers may be needed on the same shaft to ensure effective top-to-bottom mixing.

Shaft Sizing and Material Selection

The shaft must be sized correctly to handle the expected torque, length, and speed without excessive deflection. High-quality materials like stainless steel or coated carbon steel are recommended for durability, corrosion resistance, and hygiene compliance in food and pharmaceutical applications.

Shaft bearings and guides may be needed for long shafts to reduce vibration and improve performance.

Seal and Bearing Installation

For processes involving pressure, vacuum, or hazardous materials, mechanical seals or stuffing boxes are essential to prevent leaks and contamination. Choose seal types that match your fluid properties, operating temperature, and pressure requirements.

Use heavy-duty bearings that are designed for axial and radial loads to ensure long-lasting operation with minimal maintenance.

Motor and Drive Configuration

Select a motor with adequate horsepower based on the viscosity of the fluid and the required flow pattern. Variable speed drives (VFDs) are highly recommended, as they allow you to control the agitator speed and optimize energy usage for different process phases.

Ensure the drive unit is securely mounted and properly aligned with the agitator shaft to avoid excessive wear and power loss.

Safety Features and Compliance

Install safety guards around rotating shafts and impellers. Make sure all electrical components are explosion-proof or water-resistant if required by the operating environment. The system should also be compliant with relevant industry standards such as ASME, ISO, or GMP depending on your sector.

Tips for Optimizing Agitator Performance

• Fine-tune impeller speed and direction using real-time feedback and observation. Different stages of the mixing process may require different speeds or flow patterns.

• Avoid vortex formation by adjusting the impeller height or adding baffles inside the tank. Vortices reduce mixing efficiency and can introduce air into the mixture, causing oxidation or foaming.

• Ensure fluid turnover time is matched to your batch cycle. Faster isn't always better; sometimes slower mixing ensures better product consistency.

• Conduct periodic maintenance including checking seals, bearings, motor alignment, and impeller condition. Wear and tear reduce performance over time.

• Use CFD simulations or consult with equipment experts to analyze flow behavior and identify improvement opportunities for your specific application.

Common Applications of Top Entry Agitators

The versatility of top entry agitators makes them suitable for numerous industrial processes:

• Chemical processing: Mixing acids, polymers, emulsions, and suspensions in batch or continuous reactors

• Pharmaceutical manufacturing: Blending active ingredients, suspending powders, and preparing sterile solutions

• Food and beverage: Homogenizing dairy, syrup, sauces, and fermentation-based products in hygienic tanks

• Water and wastewater treatment: Coagulation, flocculation, and chemical dosing processes for effective purification

• Cosmetics and personal care: Formulating creams, gels, lotions, and fragrances with consistent texture and color

• Paints, coatings, and adhesives: Dispersing pigments, resins, and fillers to achieve desired viscosity and appearance

Each of these applications may demand a different setup based on fluid dynamics, compliance requirements, and end-product characteristics. KEHENG offers tailored designs and high-efficiency agitator systems to suit every need.

Conclusion

Setting up a top entry agitator involves more than simply placing a mixer into a tank. It requires a strategic, well-planned approach that considers tank design, impeller configuration, material properties, and safety requirements. By following best practices, you ensure maximum mixing performance, reduced downtime, and long-term equipment durability.

A properly installed and maintained top entry agitator becomes a powerful tool for ensuring consistent, efficient, and scalable production. For world-class agitator systems and engineering support, rely on KEHENG.
