In municipal and industrial wastewater treatment processes, mixing performance directly affects pollutant removal efficiency, chemical consumption, sludge behavior, and effluent quality stability.
Insufficient mixing may result in:
Chemical overdosing
Sludge sedimentation
Dead zones inside tanks
Increased energy consumption
Process instability or shutdown

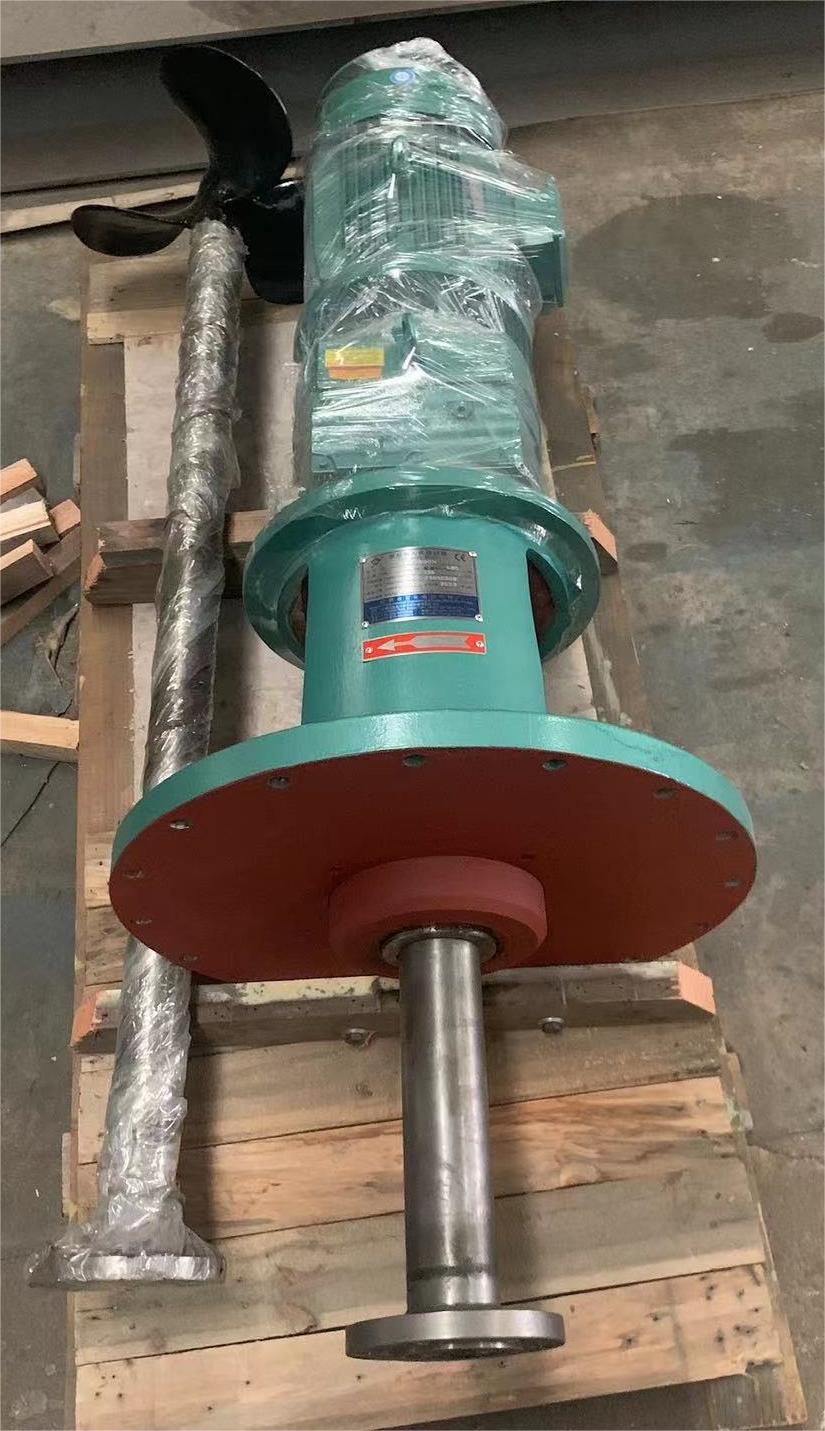

The Keheng Vertical Wastewater Treatment Agitator is specifically engineered for continuous operation in demanding water treatment environments. With a top-entry vertical design, it provides reliable and energy-efficient mixing for equalization, neutralization, flocculation, sludge storage, and other critical process stages.
Designed for long service life, low maintenance, and optimized hydraulic performance, it ensures stable operation under 24/7 working conditions.
The agitator adopts a modular heavy-duty configuration consisting of:
IE3 high-efficiency motor
Heavy-duty helical or bevel gearbox
Process-optimized impeller
304 / 316L stainless steel shaft
Multi-layer sealing system (stuffing box or mechanical seal)
✔ Transmission efficiency up to 95%
✔ Service factor (SF) ≥ 1.5 for continuous duty
✔ Compact footprint for crowded tank platforms
✔ Corrosion-resistant construction
✔ Flexible impeller replacement for different process stages
The sealing system can be upgraded according to immersion depth and corrosion requirements to eliminate leakage risks and minimize downtime.
| Parameter | Range |
|---|---|
| Power Range | 0.37 – 22 kW |
| Speed Range | 20 – 350 rpm |
| Shaft Length | Up to 3 meters |
| Tank Volume | 5 – 5000 m³ |
| Material Options | SS304 / SS316L / Coated Carbon Steel |
| Noise Level | ≤ 75 dB |
| Control Option | Fixed Speed or VFD |
Custom designs are available based on process requirements.
Different wastewater treatment stages require different hydraulic performance. Keheng provides optimized impeller configurations:
| Application | Recommended Impeller | Design Target | Process Benefit |
|---|---|---|---|
| Equalization Tank | High-efficiency hydrofoil | Large flow circulation | Prevent sedimentation, eliminate dead zones |
| Neutralization / Reaction Tank | Axial flow or open turbine | High turbulence mixing | Faster chemical dispersion, reduced dosing cost |
| Flocculation Tank | Low-speed flocculation blade | Low shear force | Promote floc growth, improve sedimentation |
| Sludge Storage Tank | Wide-blade or grid impeller | High solids homogenization | Prevent sludge compaction, stabilize concentration |
Each impeller can be optimized through hydraulic calculation and application experience.
Heavy-duty gearbox design with high service factor ensures long-term reliability.
IE3 motors combined with optimized impeller design reduce overall energy consumption.
Compatible with VFD systems for adjustable mixing intensity.
Enhanced sealing system reduces leakage risk and extends service intervals.
Available in SS316L and special coatings for aggressive wastewater environments.

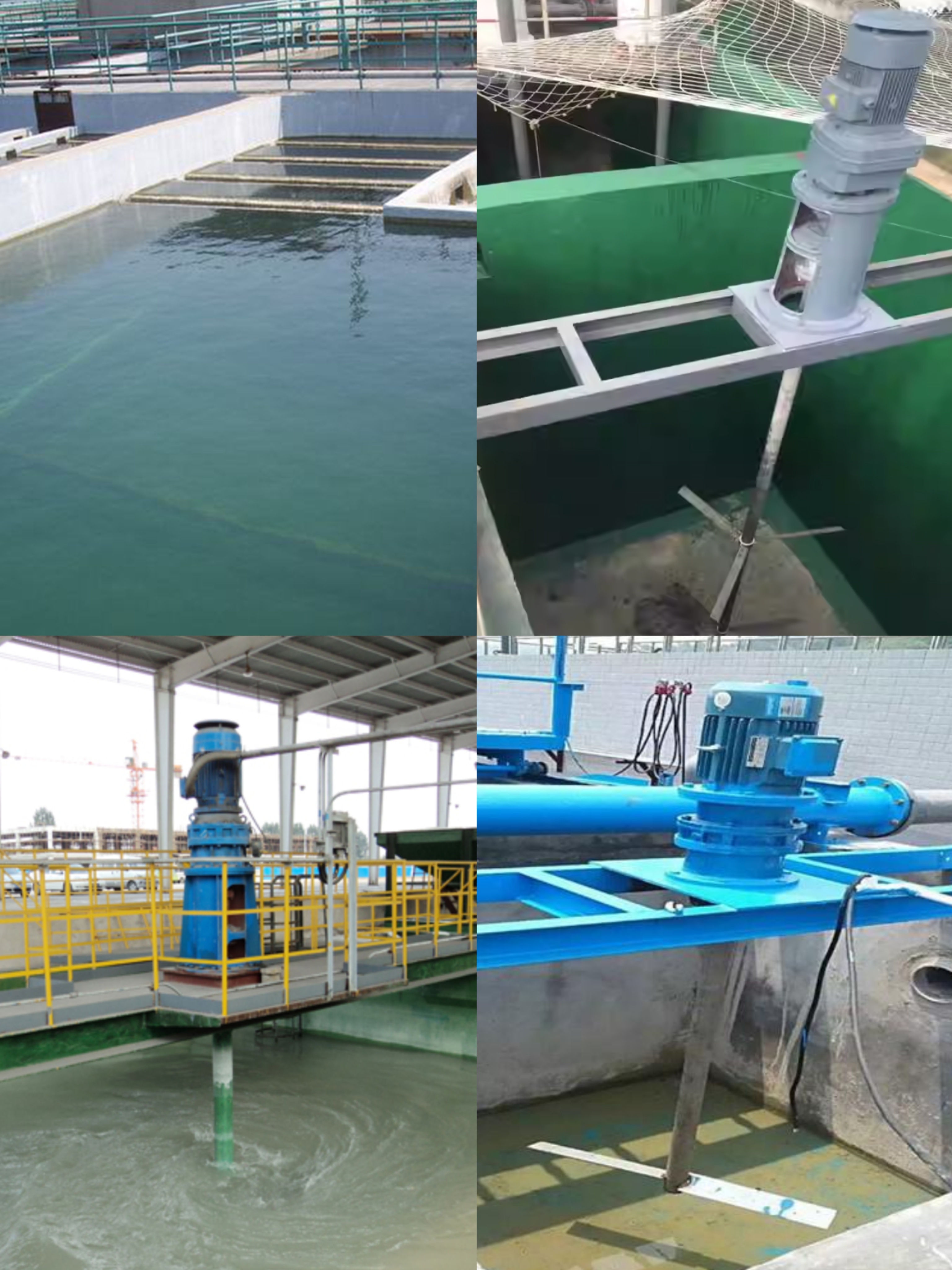

The Keheng vertical wastewater agitator is widely used in:
Municipal wastewater treatment plants
Industrial wastewater systems
Textile wastewater treatment
Paper mill effluent treatment
Chemical industry wastewater
Food & beverage processing wastewater
From large equalization basins to precise flocculation reactors, Keheng agitators deliver stable and efficient mixing performance while reducing lifecycle operating costs.
To provide an accurate proposal, please share:
Tank diameter and liquid height
Medium density and viscosity
Solid content (%)
Operating temperature
Mixing purpose (homogenization / reaction / flocculation / suspension)
Required motor protection level
Our engineering team will recommend the optimal configuration.
15+ years in industrial mixing solutions
Exported to 30+ countries
Custom-engineered designs
OEM / ODM available
Fast technical response
Keheng is committed to delivering reliable and cost-effective mixing equipment for global wastewater treatment projects.
