Designed for homogenizing, suspending, dissolving and blending liquids directly inside IBC containers. KEHENG provides configurable agitator solutions based on the actual medium and mixing requirements.
A compact mixing solution for liquids processed directly in IBC containers, with configuration selected according to the actual application.

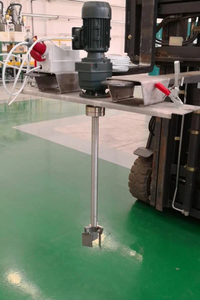

The IBC Container Agitator is designed for mixing, homogenizing, suspending and dissolving liquids in IBC containers. It provides a practical solution for batch processing where materials need to be blended directly inside the container.
KEHENG MIXING offers electric IBC agitators with different motor powers, shaft lengths, impeller configurations and material options. The final configuration can be selected according to container size, medium properties, viscosity, density and required mixing performance.
The agitator is suitable for applications where IBC containers are frequently changed between batches. Its compact mounting arrangement supports convenient installation, operation and routine maintenance.
Mix materials directly inside the IBC container without transferring the batch to a separate tank.
Motor, shaft, impeller and wetted materials can be selected according to process conditions.
Top-mounted construction allows convenient installation and removal for batch operations.
Configuration and performance depend on the actual process requirements and medium characteristics.
The agitator can be mounted on the top of the IBC using a support bracket and suitable clamps.
Proper impeller selection promotes liquid circulation and supports homogenization and suspension.
The compact arrangement requires relatively little installation space.
Motor power, shaft length, impeller type and material can be configured for the application.
Designed for stable operation with relatively low operating noise under suitable conditions.
A straightforward mechanical arrangement supports inspection and routine maintenance.
The agitator is mounted through the top opening of the IBC container. A support bracket and suitable clamps secure the assembly during operation.
The original product data provides reference values. Final selection should be confirmed according to the application.
| Motor Brand | Optional |
|---|---|
| Gear Reducer Brand | Optional |
| Motor Power | Reference: 0.37 kW / 1 Ton; final selection application-dependent |
| Shaft Diameter | Reference: 35 mm / 1 Ton; final design according to mechanical calculation |
| Shaft Length | According to the height of the IBC container |
| Rotating Speed | Reference: 60 rpm / 1 Ton; final selection according to mixing requirements |
| Impeller | Efficient impeller / Customized |
| Wetted Material | Carbon Steel / Stainless Steel 304 / Stainless Steel 316 / Customized |
| Installation | Top-mounted |
| Application | IBC containers and drums |
For applications involving frequent mixing of multiple IBC containers or drums, KEHENG can provide tripod-mounted agitator solutions. An electric lifting system can be incorporated where required.
Where both mixing and product transfer are required, KEHENG can develop a customized solution integrating the agitator with a pumping or transfer system.
Suitable for a range of liquid mixing processes using IBC containers or drums.
Mixing and homogenization of selected chemical solutions and liquid products.
Paints, varnishes, coatings, adhesives and related liquid products.
Water treatment, wastewater treatment, purification and flocculation applications.
Selected liquid food and beverage processing applications.
Liquid preparation and batch mixing with suitable configurations.
Mixing and processing of selected dye and pigment formulations.
Homogenization and dissolution of suitable aqueous solutions.
Flexible batch mixing for pilot-scale production and process development.
The right agitator depends on the process conditions, not container volume alone.
IBC dimensions and working volume
Density, viscosity and solids content
Temperature and other process conditions
Homogenization, suspension, dissolution or blending
Send us your container and process information. KEHENG can recommend a suitable agitator configuration based on your actual application.
