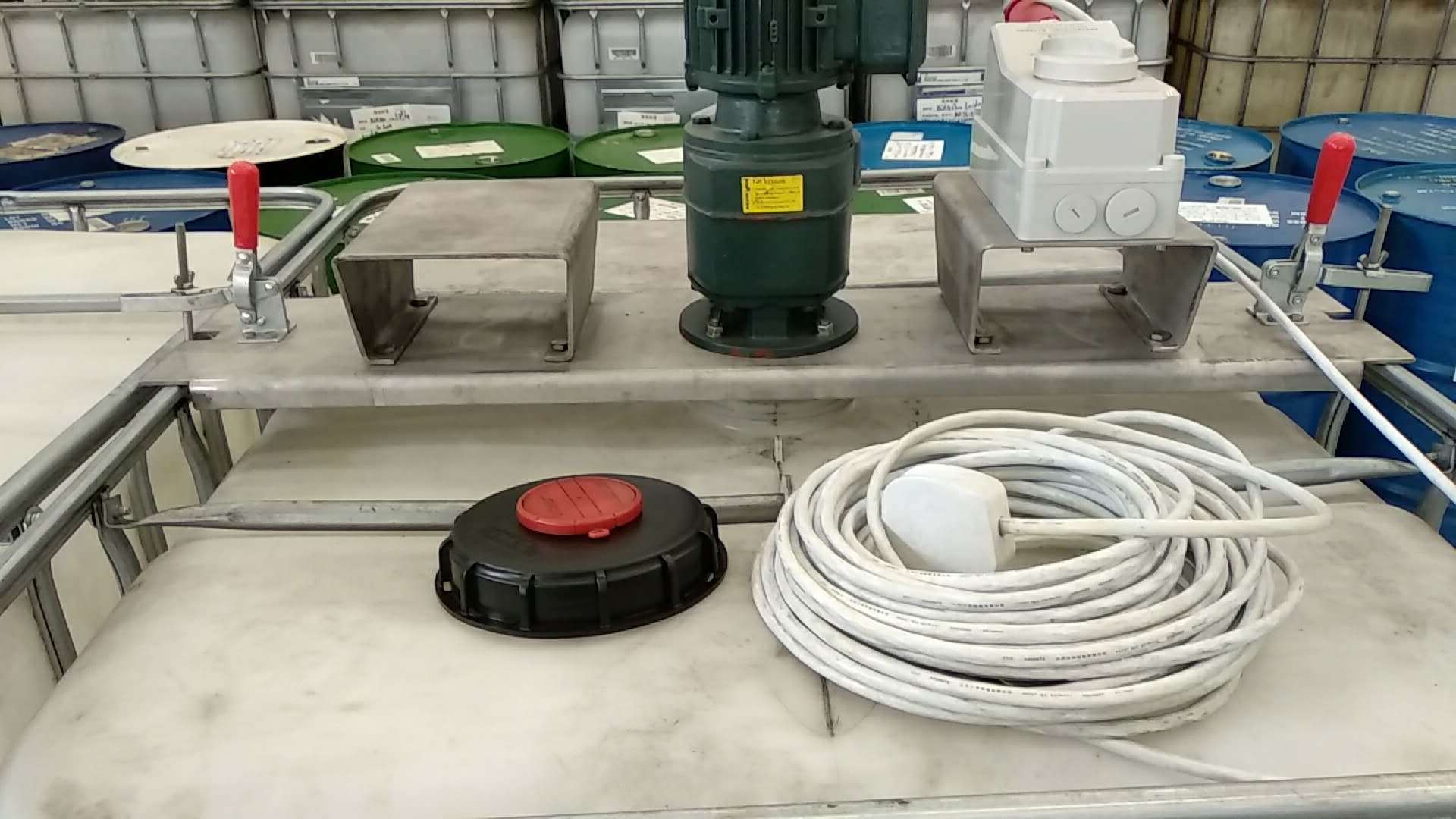

The Keheng IBC Tote Mixer is specifically designed for direct mixing inside standard 1000L intermediate bulk containers (IBC) and drums without transferring materials to a separate mixing tank.
Equipped with a foldable impeller and adjustable lifting stand, the mixer can easily pass through narrow openings (140–160 mm) and expand inside the tank to generate strong circulation flow.
This design improves operational efficiency, reduces contamination risk, and enables one mixer to serve multiple totes in rotation.
Folded diameter ≤ 90 mm
Easily passes through standard IBC openings
Expands automatically during rotation
Expanded diameter up to 400–450 mm
Dual-layer configuration for full-depth mixing
Dual-cylinder guided lifting structure
Smooth and stable vertical movement
Lifting stroke up to 1050 mm
Suitable for 1000L / 1500L IBCs and 200L drums
Optional mixing-while-lifting function allows continuous agitation during vertical adjustment to eliminate dead zones.
Mounted on a heavy-duty trolley
Equipped with 4 swivel casters (with brakes)
Quick changeover between different containers
Compact footprint for workshop use
IE3 high-efficiency electric motor
Pneumatic motor option for flammable solvents
VFD speed control available
Explosion-proof configuration optional
| Parameter | Specification |
|---|---|
| Power Range | 0.55 – 2.2 kW |
| Speed Range | 0 – 1500 rpm (VFD optional) |
| Shaft Diameter | Φ20 – 25 mm |
| Shaft Material | SS304 / SS316L |
| Impeller Type | Dual-layer foldable blade |
| Folded Diameter | ≤ 90 mm |
| Expanded Diameter | 400 – 450 mm |
| Lifting Stroke | Up to 1050 mm |
| Tank Compatibility | Standard 1000L IBC, 1500L IBC, 200L drum |
| Protection Level | IP55 (customizable) |
| Drive Option | Electric / Pneumatic |
Custom designs are available based on viscosity, solid content, and application requirements.
Suitable for:
Liquids with viscosity up to 2000–3000 cP
Solid content up to 30%
Homogenization, dissolution, suspension, and blending
Batch production processes
The expanded impeller creates strong axial circulation flow to prevent sedimentation and layering.
Multi-layer sealing at tank opening
Reduced splashing and vapor emission
Optional automatic stop function when lifted above tank opening
Pneumatic drive eliminates electrical spark risk
Stainless steel construction for corrosion resistance
Food-grade polishing and GMP-compliant configurations are available upon request.
The Keheng IBC Tote Mixer is widely used in:
Chemical blending (resins, adhesives, solvents)
Paint & coating production
Food ingredient preparation (syrups, concentrates)
Pharmaceutical intermediate mixing
Wastewater chemical preparation
Its mobile structure makes it ideal for workshops handling multiple totes daily.
Direct mixing inside IBC — no material transfer required
One mixer for multiple containers
Reduced labor and handling cost
Compact, durable, and easy to operate
Customizable for different industries
To recommend the correct configuration, please provide:
Liquid viscosity
Solid content (%)
Explosion-proof requirement
Tank type and opening diameter
Required speed control (fixed or VFD)
Our engineering team will provide a suitable solution accordingly.
