Have you ever wondered why foaming seems to hinder your production process? In industries like food, pharmaceuticals, and chemicals, foaming during mixing can be a significant challenge. It can disrupt product consistency, slow down production, and increase costs.
In this article, we will explore why foaming occurs in mixing processes and how to prevent it. You will learn about the factors that contribute to foaming, the role of mixers, and practical strategies to minimize foam and ensure high-quality production.
Foaming occurs when air is trapped within a liquid during the mixing process, leading to the formation of bubbles or foam. This phenomenon is particularly common when mixing at high speeds or when adding powders to liquids. The incorporation of air creates foam, which disrupts the uniformity of the mixture, making the product unstable and inconsistent.
In industrial mixing, the entrapment of air can lead to significant problems such as extended cycle times, product contamination, and inconsistency in product texture. For example, mixing powders like starch or proteins, which are more prone to foaming, will further increase the risk of creating foam layers during the process.
While foaming might seem like a minor issue, it can cause a host of production inefficiencies that significantly impact the outcome of the mixing process:
● Product Consistency: Foaming can alter the texture, consistency, and stability of the product, making it unsuitable for its intended use. In many cases, foam affects the final product’s appearance and feel, which is a critical factor in industries like food and cosmetics.
● Production Delays: Excessive foam can slow down mixing processes, leading to longer cycle times, which ultimately reduces production throughput. It can also delay subsequent processes, such as packaging or bottling.
● Quality Control Issues: Foam can trap air inside the mixture, leading to cloudiness, discoloration, and instability in the final product. In industries like pharmaceuticals, where uniformity and quality are paramount, even small amounts of foam can lead to rejection of batches.
● Increased Waste: Excessive foam often leads to spills, overflows, and contamination of the product, resulting in product loss and increased waste. This directly impacts the cost and efficiency of production.
The mechanical setup of the mixer plays a crucial role in the formation of foam. Several mechanical factors can either enhance or reduce the likelihood of foaming:
● High-Speed Mixing: High-speed mixing is known to generate vortexes, which draw air into the liquid, leading to air incorporation and foam formation. While high-speed mixing improves efficiency, it can significantly increase the amount of foam produced.
● Impeller Type: The type of impeller used in the mixer also has a major impact on foam generation. Axial-flow impellers create strong vortexes that increase the risk of air induction, whereas radial impellers generate less shear, reducing the likelihood of foam formation.
● Mixing Speed: Faster mixing speeds increase turbulence, which can lead to foaming, especially when dealing with foam-sensitive materials. While increasing speed may seem beneficial for achieving quicker results, it often exacerbates the foaming issue, making it essential to strike a balance.
The properties of the ingredients being mixed can also significantly contribute to foaming:
● Surfactants: Surfactants lower the surface tension of the liquid, stabilizing air bubbles and preventing them from dissipating. This makes the foam more persistent, which can disrupt the mixing process and impact the final product quality.
● Proteins: Protein-based powders are highly prone to foaming because they form stable foam structures due to their molecular makeup. As a result, mixing such ingredients requires careful control of mixing parameters to avoid excessive foam buildup.
● Hydrophobic Powders: Hydrophobic powders, which repel water and attract air, are particularly susceptible to foaming. These powders tend to trap air at the surface, increasing the chances of foam formation during mixing.
Understanding the properties of the ingredients involved allows for better management of foaming. This knowledge enables manufacturers to select the right mixing conditions and mitigate foam formation by adjusting the speed, timing, or impeller type.
External environmental conditions such as temperature, humidity, and atmospheric pressure also influence foaming:
● Temperature: Higher temperatures typically reduce the viscosity of liquids, which promotes the formation of air bubbles. The lower viscosity of the liquid allows air to easily become trapped, leading to more foam.
● Humidity: High humidity can cause powders to clump together, which requires higher mixing speeds to break them apart. This process of breaking apart clumped powders introduces more air, contributing to inconsistent foam levels.
● Pressure: Lower atmospheric pressure reduces the force required to break the liquid surface, making it easier for air to become trapped within the mixture. This can lead to greater foam formation, especially in environments with lower pressure.
Cause | Description | Impact on Foaming |
Mechanical Factors | High-speed mixing, impeller type, mixing speed | Air incorporation due to turbulence and vortexes |
Ingredient Properties | Surfactants, proteins, hydrophobic powders, viscosity, particle size, shape, and density | Increased bubble stability and air entrapment |
Environmental Conditions | Temperature, humidity, atmospheric pressure | Altered viscosity and air incorporation |
The position of the impeller inside the mixing vessel can influence foam formation. It is important to position the impeller below the liquid surface to reduce vortex formation. A vortex is often a significant cause of air incorporation, which leads to foaming. Additionally, impeller positioning off-center or at an angle can further minimize vortex strength and foam generation. The design of the tank itself, such as the use of baffles, can help disrupt excessive flow patterns and reduce the turbulence that leads to foaming.
While it may seem advantageous to increase the speed of the mixer to achieve faster results, this can often lead to excessive foaming. The key is to strike a balance. The optimal speed for mixing depends on the type of material being mixed and its foam sensitivity. For materials that are prone to foaming, reducing the speed in certain phases of mixing will help control foam formation while still achieving the desired consistency.

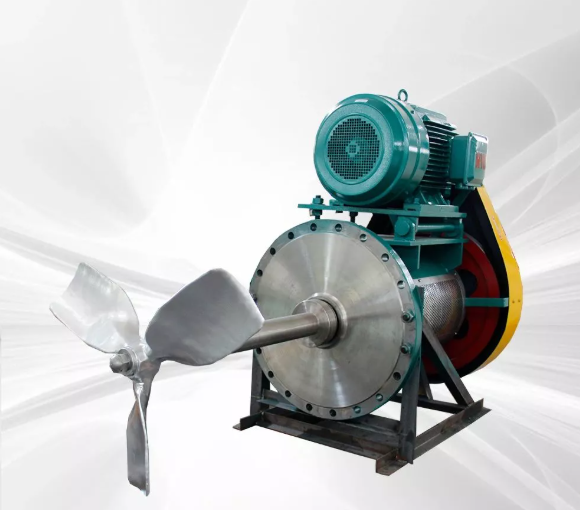

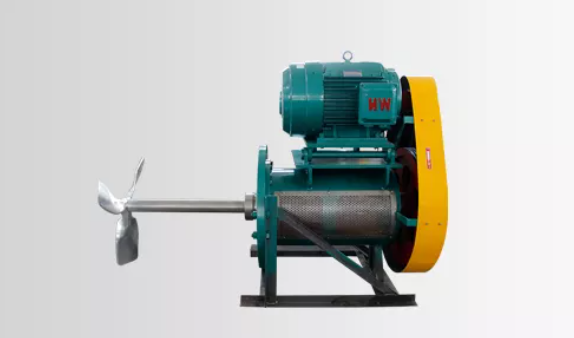

The choice of mixer is crucial in minimizing foaming. Top-entry mixers are generally more suitable for larger batches, but they can generate more foam if not positioned properly. On the other hand, side-entry mixers tend to be more effective at minimizing foaming and air entrainment, especially in smaller batches. When choosing a mixer, it’s essential to consider the specific characteristics of the product, such as viscosity, particle size, and foam sensitivity, along with the batch volume.For foam-sensitive processes, mixers that minimize turbulence and reduce air induction are highly recommended. A well-designed mixer can greatly reduce the need for chemical additives while achieving optimal mixing results.
Bidirectional mixers, which alternate between clockwise and counterclockwise rotations, can significantly reduce the occurrence of vortexes and air entrapment. These mixers allow for more controlled agitation, minimizing foam generation by disrupting the consistent air flow that typically leads to foam formation.
Solution | Description | Effectiveness |
Adjusting Mixing Parameters | Control speed, impeller position, and tank design to reduce vortex formation and air entrapment. | Highly effective in reducing foam generation |
Vacuum Mixing | Use of vacuum to prevent air incorporation while maintaining full mixing speed. | Very effective for sensitive ingredients |
Inline Mixers and High-Shear Systems | Continuous mixing with recirculation and high-shear systems to ensure even dispersion of ingredients. | Effective for high-speed powder dispersion |
Bidirectional Mixing | Oscillating mixers that reduce vortexes and minimize foam. | Reduces air induction and improves mixing uniformity |
Vacuum mixing is a highly effective solution for preventing air incorporation while still maintaining the necessary mixing speed. By applying a vacuum, the mixer can operate at full speed without drawing air into the liquid. This technique is especially useful for sensitive ingredients that must remain free from air exposure. However, it is essential to monitor the mixture carefully during vacuum mixing to ensure that the vacuum does not cause any undesired effects.
Inline mixers with recirculation capabilities allow for continuous mixing by circulating the mixture through the chamber, ensuring even dispersion of ingredients. This reduces the chances of foam generation and ensures that air is not trapped in the mixture. High-shear systems, such as rotor/stator mixers, are ideal for dispersing powders quickly and reducing foam formation during the mixing process.
Chemical defoamers are specialized additives used to reduce or eliminate foam in mixing processes. Silicone-based defoamers are often highly effective for solvent-based systems, while non-silicone and water-based defoamers are better suited for waterborne applications. However, the use of chemical defoamers should be considered as a last resort, as they can be costly and, in some cases, alter the product's properties.
Over-reliance on chemical defoamers can lead to unintended consequences, such as contamination and increased production costs. Therefore, it's best to first optimize the mixing process by adjusting mixing parameters, selecting the right mixer, and controlling environmental factors. Once these measures have been implemented, chemical defoamers can be used sparingly to provide additional foam control if necessary.
Defoamer Type | Best Suited For | Pros | Cons |
Silicone-Based Defoamers | Solvent-based systems | Highly effective, low concentrations needed | Can negatively affect film adhesion |
Non-Silicone Defoamers | Systems sensitive to silicone | Good alternative to silicone-based defoamers | May be less effective in some applications |
Water-Based Defoamers | Waterborne coatings and eco-friendly applications | Environmentally friendly, easy to clean | Less effective in solvent-based systems |
Foaming in mixing processes is a common issue that can affect product stability, increase production time, and reduce operational efficiency. By choosing the right mixer and adjusting mixing parameters, manufacturers can significantly minimize foaming. Additionally, using solutions like vacuum mixing or inline mixers, and occasionally chemical defoamers, can help control foam. Regular assessments and optimizations are key to maintaining consistent, high-quality production. A balanced approach—incorporating mechanical, process, and chemical solutions—ensures more efficient operations and better-quality products.
JiangSu KeHeng Petrochemical & Electrical Machinery Co., Ltd specializes in providing advanced mixing technologies that significantly enhance production efficiency and reduce foaming. Their unique solutions help businesses optimize their processes for better outcomes.
A: Foaming occurs when air is trapped in liquids during mixing, often due to high-speed mixing, impeller design, or certain ingredient properties like surfactants and proteins.
A: Using the right mixer, such as a bidirectional mixer, can minimize vortex formation, reduce air entrainment, and help maintain a stable mixture without excessive foaming.
A: Vacuum mixing prevents air from entering the mixture, allowing for full-speed mixing without foaming, which is particularly useful for sensitive materials.
A: Yes, adjusting the speed of the mixer helps control turbulence and foam formation, ensuring better consistency and reducing foam generation.
A: Ingredients like surfactants and proteins lower surface tension, stabilizing foam and making it harder to dissipate, while hydrophobic powders trap more air.
