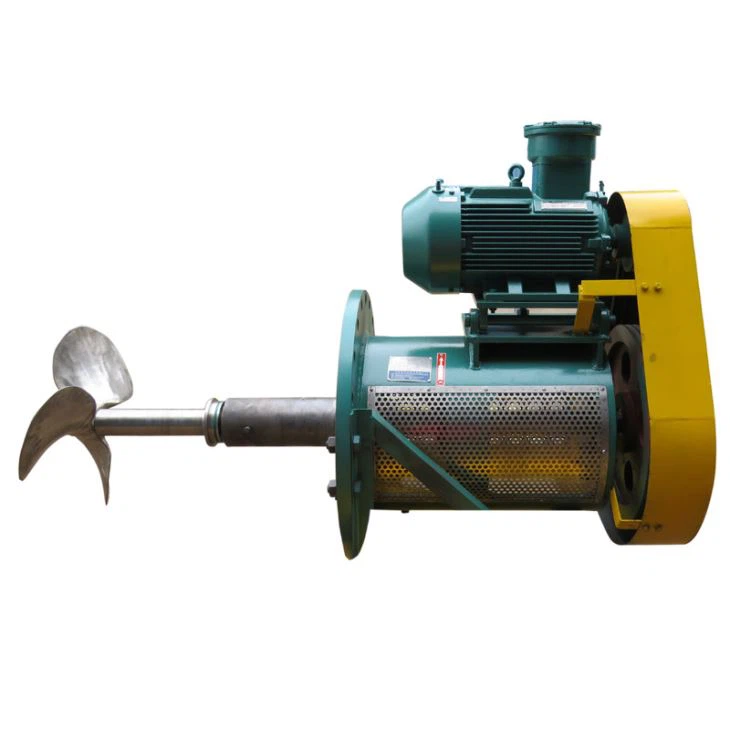

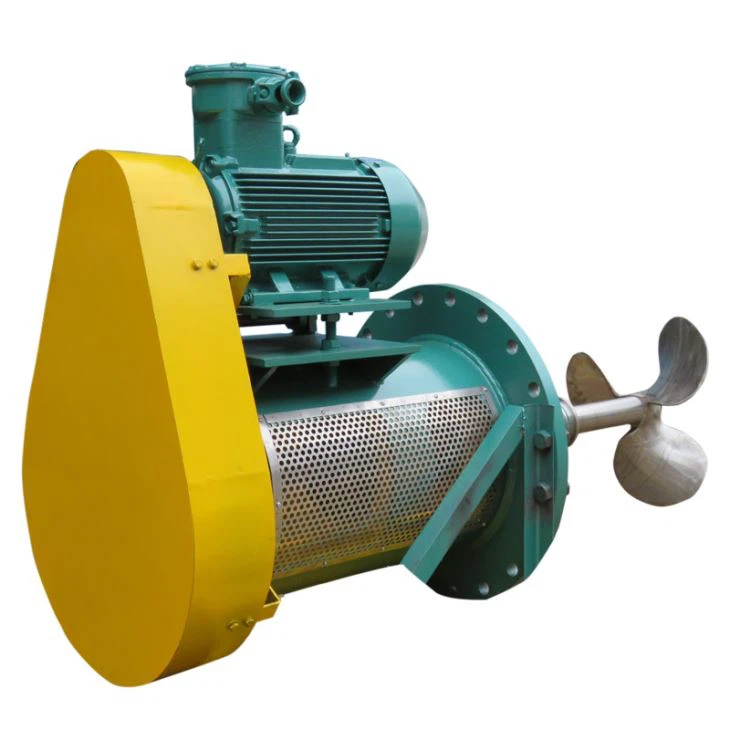

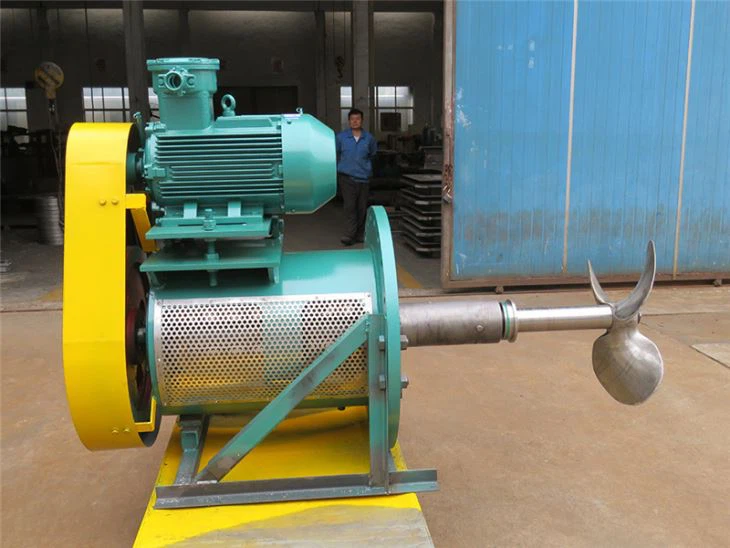

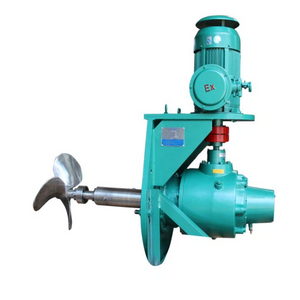

|Mixer type ||Side-entry mixer |
|Motor brand ||ABB or customized |
|Reducer brand ||SEW or customized |
|Medium ||Crude oil、waste water、FGD、pulp |
|Power ||0.37~110kw，Special can be customized |
|Material of impeller and shaft ||Carbon steel |
|Voltage/phase/frequence ||Customized |
The material can be:
Q235B, 45#, Carbon Steel with rubber, Carbon Steel with PO, Carbon Steel with PTFE, Carbon Steel with FRP, Carbon steel enamel, 304 SS, 316L SS, 2205 duplex stainless steel , 2507 duplex stainless steel , 904L Super Austenitic Stainless Steel, 1.4529
Notes: The material of all mixers’ parts can be custom-made according to local working condition, mixing medium and customer’s requirement.
Determine the Program Process
1. Determine The Appropriate Stirring Form And Size According To The Calculation Results Of The Medium And Stirring Purpose;
2. According To The Calculation Results Of Mixing Time, Shear Force And Blade Thrust, Determine The Rotating Speed To Achieve The Most Efficient Stirring;
3. If Dissolved Oxygen Stirring Is Required, The Blade Diameter And Rotational Speed Need To Be Checked Based On Factors Such As Gas Content, Gas-Liquid Mass Transfer Coefficient Kla(S-1), Etc.
4. According To The Determination Of The Above Conditions, The Stirring Power And Shaft Diameter Are Finally Determined, And The Reducer Is Selected.
5. Determine The Sealing Material And Structure According To The Medium, Pressure, Temperature, Speed And Other Working Conditions.
Click here to send inquiry!
Mixers can be customzied according to your requirements!
