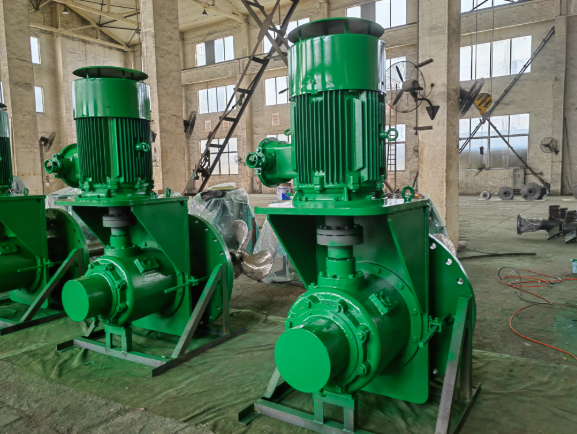

In terms of structural design, Keheng Side-Mounted Agitator adopts a modular design concept, which is composed of a driving device, a transmission mechanism, an impeller assembly, a sealing device and a mounting base. The driving device selects high-efficiency variable-frequency motors from well-known international brands, which have the advantages of low energy consumption, low noise and long service life, and can realize stepless speed regulation according to different mixing process requirements, with a speed range of 10-300r/min. The transmission mechanism uses precision planetary gear reducers, which have high transmission efficiency (up to 98%) and strong load-bearing capacity, ensuring the stable transmission of power.
In terms of intelligent control, the agitator is equipped with a full set of intelligent monitoring systems, which can real-time monitor parameters such as motor current, temperature, vibration and seal leakage. Once an abnormal situation occurs, the system will automatically alarm and take protective measures (such as shutdown, speed reduction) to ensure the safe operation of the equipment. At the same time, it can be connected to the enterprise's DCS system to realize remote control and centralized management, improving the automation level of the production line.
Keheng adheres to the principle of "safe and reliable, intact delivery" in product packaging and transportation. For the finished Keheng Side-Mounted Agitator, we adopt a three-layer packaging method: the first layer is a plastic film, which is used to prevent moisture and dust; the second layer is a foam buffer layer, which can effectively absorb shock and reduce the impact of transportation on the equipment; the third layer is a wooden crate made of high-quality plywood, which has strong load-bearing capacity and can prevent the equipment from being damaged by extrusion during transportation. Each wooden crate is equipped with a fumigation certificate, which meets the export packaging standards of various countries.
A1: Compared with traditional top-mounted agitators, Keheng Side-Mounted Agitator has three obvious advantages: first, in terms of installation space, the side-mounted structure does not occupy the top space of the tank, which is convenient for the installation and maintenance of other equipment on the tank top (such as manholes, feed ports, detection instruments); second, in terms of load-bearing, the side-mounted agitator transfers the load to the tank wall and the specially designed mounting base, avoiding the problem of excessive load on the tank top, which is more suitable for large-capacity tanks; third, in terms of maintenance, the side-mounted agitator is easy to disassemble and assemble, and the maintenance personnel can carry out maintenance work on the side of the tank without entering the tank or using large lifting equipment, which greatly reduces the maintenance cost and time.
A2: The selection of impeller type mainly depends on the medium properties and mixing purposes. For low-viscosity media (viscosity < 1000mPa·s) and occasions requiring strong radial mixing (such as homogenization of liquid-liquid mixture), turbine impellers are recommended; for medium-viscosity media (1000-10000mPa·s) and occasions requiring strong axial flow (such as dissolution of solid materials), paddle impellers are suitable; for high-viscosity media (viscosity > 10000mPa·s) and occasions requiring full mixing of the whole tank (such as reaction of high-viscosity materials), anchor impellers or screw impellers are preferred. In addition, our professional technical team can provide one-on-one impeller selection services according to the customer's specific process parameters.
In terms of structural design, Keheng Side-Mounted Agitator adopts a modular design concept, which is composed of a driving device, a transmission mechanism, an impeller assembly, a sealing device and a mounting base. The driving device selects high-efficiency variable-frequency motors from well-known international brands, which have the advantages of low energy consumption, low noise and long service life, and can realize stepless speed regulation according to different mixing process requirements, with a speed range of 10-300r/min. The transmission mechanism uses precision planetary gear reducers, which have high transmission efficiency (up to 98%) and strong load-bearing capacity, ensuring the stable transmission of power.
In terms of intelligent control, the agitator is equipped with a full set of intelligent monitoring systems, which can real-time monitor parameters such as motor current, temperature, vibration and seal leakage. Once an abnormal situation occurs, the system will automatically alarm and take protective measures (such as shutdown, speed reduction) to ensure the safe operation of the equipment. At the same time, it can be connected to the enterprise's DCS system to realize remote control and centralized management, improving the automation level of the production line.
Keheng adheres to the principle of "safe and reliable, intact delivery" in product packaging and transportation. For the finished Keheng Side-Mounted Agitator, we adopt a three-layer packaging method: the first layer is a plastic film, which is used to prevent moisture and dust; the second layer is a foam buffer layer, which can effectively absorb shock and reduce the impact of transportation on the equipment; the third layer is a wooden crate made of high-quality plywood, which has strong load-bearing capacity and can prevent the equipment from being damaged by extrusion during transportation. Each wooden crate is equipped with a fumigation certificate, which meets the export packaging standards of various countries.
A1: Compared with traditional top-mounted agitators, Keheng Side-Mounted Agitator has three obvious advantages: first, in terms of installation space, the side-mounted structure does not occupy the top space of the tank, which is convenient for the installation and maintenance of other equipment on the tank top (such as manholes, feed ports, detection instruments); second, in terms of load-bearing, the side-mounted agitator transfers the load to the tank wall and the specially designed mounting base, avoiding the problem of excessive load on the tank top, which is more suitable for large-capacity tanks; third, in terms of maintenance, the side-mounted agitator is easy to disassemble and assemble, and the maintenance personnel can carry out maintenance work on the side of the tank without entering the tank or using large lifting equipment, which greatly reduces the maintenance cost and time.
A2: The selection of impeller type mainly depends on the medium properties and mixing purposes. For low-viscosity media (viscosity < 1000mPa·s) and occasions requiring strong radial mixing (such as homogenization of liquid-liquid mixture), turbine impellers are recommended; for medium-viscosity media (1000-10000mPa·s) and occasions requiring strong axial flow (such as dissolution of solid materials), paddle impellers are suitable; for high-viscosity media (viscosity > 10000mPa·s) and occasions requiring full mixing of the whole tank (such as reaction of high-viscosity materials), anchor impellers or screw impellers are preferred. In addition, our professional technical team can provide one-on-one impeller selection services according to the customer's specific process parameters.
