Overview: Solution for Special Mixing Scenarios

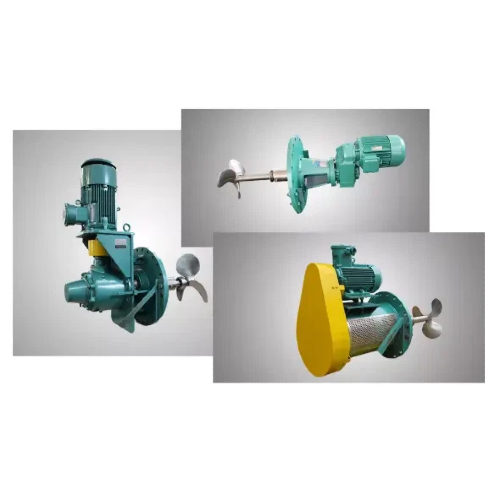

Keheng Side Entry Mixer adopts a side-wall horizontal installation design, which effectively solves the problems of uneven mixing, low efficiency and high maintenance cost of traditional vertical mixers in large-scale storage tanks, special-structure reaction kettles and continuous production lines. It is specially designed for special working conditions such as large volume, high viscosity and large particles, and can realize stable and efficient mixing without occupying the top space of the container.
|
Core Structure: Integrated and Wear-Resistant Design
The mixer adopts an integrated side-mounted structure, including high-torque IE3 motor, hard-tooth surface reducer, wear-resistant mixing shaft and double-protection sealing system. It is especially suitable for large-volume storage tanks with a volume of ≥50m³. The mixing shaft is made of 304/316L stainless steel (optional according to working conditions), with anti-corrosion and anti-wear surface treatment. The special curved or straight impellers are designed based on fluid mechanics, which can ensure full-range mixing of materials in the container and realize zero leakage through double-protection sealing.
|
Technical Advantages and Typical CasesCompared with traditional vertical mixers, Keheng Side Entry Mixer has obvious advantages in special scenarios. It can eliminate mixing dead angles, with a mixing uniformity of more than 95%, which is suitable for materials requiring high uniformity such as pharmaceutical intermediates. It can adapt to harsh working conditions, including materials with viscosity ≤100000cP, working temperature ≤250℃ and pressure ≤3.0MPa. In addition, the modular detachable design allows independent disassembly and maintenance of motors, reducers and impellers without emptying the container, greatly reducing maintenance costs and time. Typical cases include a Shandong petrochemical enterprise using a 15kW mixer for 100m³ crude oil tanks (96% uniformity, 18% energy saving) and a Zhejiang sewage plant adopting an 11kW mixer (22% efficiency improvement).
|
Service Guarantee: Full-Process Professional Support
|
Overview: Solution for Special Mixing Scenarios
Keheng Side Entry Mixer adopts a side-wall horizontal installation design, which effectively solves the problems of uneven mixing, low efficiency and high maintenance cost of traditional vertical mixers in large-scale storage tanks, special-structure reaction kettles and continuous production lines. It is specially designed for special working conditions such as large volume, high viscosity and large particles, and can realize stable and efficient mixing without occupying the top space of the container.
|
Core Structure: Integrated and Wear-Resistant Design
The mixer adopts an integrated side-mounted structure, including high-torque IE3 motor, hard-tooth surface reducer, wear-resistant mixing shaft and double-protection sealing system. It is especially suitable for large-volume storage tanks with a volume of ≥50m³. The mixing shaft is made of 304/316L stainless steel (optional according to working conditions), with anti-corrosion and anti-wear surface treatment. The special curved or straight impellers are designed based on fluid mechanics, which can ensure full-range mixing of materials in the container and realize zero leakage through double-protection sealing.
|
Technical Advantages and Typical CasesCompared with traditional vertical mixers, Keheng Side Entry Mixer has obvious advantages in special scenarios. It can eliminate mixing dead angles, with a mixing uniformity of more than 95%, which is suitable for materials requiring high uniformity such as pharmaceutical intermediates. It can adapt to harsh working conditions, including materials with viscosity ≤100000cP, working temperature ≤250℃ and pressure ≤3.0MPa. In addition, the modular detachable design allows independent disassembly and maintenance of motors, reducers and impellers without emptying the container, greatly reducing maintenance costs and time. Typical cases include a Shandong petrochemical enterprise using a 15kW mixer for 100m³ crude oil tanks (96% uniformity, 18% energy saving) and a Zhejiang sewage plant adopting an 11kW mixer (22% efficiency improvement).
|
Service Guarantee: Full-Process Professional Support
