Reliable Mixing Solutions for Chemical Storage and Processing Applications
KEHENG designs and manufactures customized side entry agitators for chemical storage tanks, petrochemical vessels, and industrial process applications. Through advanced engineering design, optimized impeller structures, and reliable mechanical sealing technology, our agitators deliver efficient mixing performance and long-term operational reliability.
 | KEHENG Customized Side Entry Agitator is specially designed for efficient mixing in large chemical storage tanks and industrial process vessels. Unlike standard mixing equipment, each agitator is engineered according to tank dimensions, liquid characteristics, viscosity requirements, operating temperature, pressure conditions, and mixing objectives. The optimized impeller design generates effective circulation, helping prevent sedimentation, improve heat transfer, maintain product uniformity, and ensure stable production processes. KEHENG provides complete tank mixing solutions including engineering design, mechanical optimization, manufacturing, testing, and technical support. |

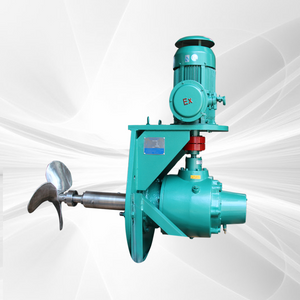

A Side Entry Agitator is an industrial mixing device installed horizontally on the side wall of a storage tank or process vessel.
The agitator shaft extends into the tank and drives a specially designed impeller to create axial flow and radial circulation. Compared with traditional top entry mixers, side entry agitators offer lower installation height, efficient circulation performance, and easier maintenance for large-volume tanks.
KEHENG side entry agitators are widely used for continuous mixing, storage tank circulation, suspension, and product quality control applications.
High-Efficiency Mixing PerformanceOptimized impeller design generates strong circulation flow and improves mixing efficiency throughout the tank. The agitator effectively reduces settling, stratification, and uneven concentration. | Customized Mechanical Seal SystemSingle and double mechanical seal solutions are available according to different chemical and industrial operating conditions. |
Energy-Saving OperationProper impeller selection and CFD-assisted design help achieve required mixing performance with optimized power consumption. | Robust Industrial StructureHigh-quality materials, precision machining, and reliable transmission systems ensure stable operation in continuous industrial service. |
Every chemical storage application has different requirements. KEHENG provides customized side entry agitator solutions based on actual process conditions and customer requirements.
Tank Conditions
| Process Requirements
| Engineering Selection
|
For corrosive chemical applications, KEHENG provides suitable material solutions including SS304, SS316, and SS316L according to process requirements.
KEHENG side entry agitators are widely used in industries requiring reliable mixing, liquid circulation, and product consistency control.
Chemical IndustryChemical storage tanks, solvent mixing, liquid circulation, additive blending. | Petrochemical IndustryCrude oil storage tanks, fuel oil mixing, asphalt storage, process circulation. | Wastewater TreatmentSludge mixing, equalization tanks, chemical dosing systems. | Other IndustriesPaint and coating, food processing, pharmaceutical, biochemical processes. |
| Parameter | Specification |
|---|---|
| Product Type | Customized Side Entry Agitator |
| Application | Chemical Storage Tanks / Industrial Process Vessels |
| Installation Type | Side Entry Installation |
| Drive Type | Motor + Gearbox |
| Impeller Type | Axial Flow / Customized Design |
| Material Options | Carbon Steel, SS304, SS316, SS316L |
| Seal Type | Mechanical Seal |
| Operation | Continuous Mixing |
| Explosion Proof | Available According To Requirements |
Professional EngineeringCustomized agitator engineering, mixing calculation, and impeller optimization. | Quality ManufacturingStrict quality control from material inspection, machining, assembly, and testing. | Global Project SupportProviding reliable industrial mixing solutions for customers worldwide. |
A Side Entry Agitator is an industrial mixer installed horizontally on the side wall of a storage tank or process vessel. It uses a rotating impeller to create efficient circulation and maintain liquid uniformity.
A Chemical Storage Tank Mixer is mainly used for liquid circulation, blending, suspension, preventing sedimentation, and maintaining consistent product quality in chemical storage applications.
The selection depends on tank volume, liquid viscosity, density, chemical properties, operating temperature, pressure, and required mixing performance. KEHENG provides professional engineering recommendations based on actual process conditions.
Yes. KEHENG provides complete customized solutions including agitator design, motor selection, gearbox configuration, impeller optimization, mechanical seal selection, material selection, manufacturing, and testing.
KEHENG side entry agitators are widely used in chemical, petrochemical, wastewater treatment, paint, coating, pharmaceutical, food processing, and other industrial applications.
KEHENG understands that every chemical storage tank has unique mixing requirements. Our customized side entry agitators are designed to provide efficient mixing performance, reliable operation, and long service life in demanding industrial environments.
From chemical storage tanks and petrochemical facilities to industrial process applications, KEHENG provides professional mixing solutions tailored to your specific requirements.
Contact KEHENG for customized side entry agitator solutions for chemical storage tanks and industrial mixing projects.
