The side entry agitator is installed on the side wall of the tank. It usually adopts axial flow type and propeller type.
In case of consuming the same power, side entry mixer can achieve best agitating effect. The power consumption of it is only 1/3 to 2/3 from the top entry mixer. The cost is only 1/4~1/3 of top enter agitator.

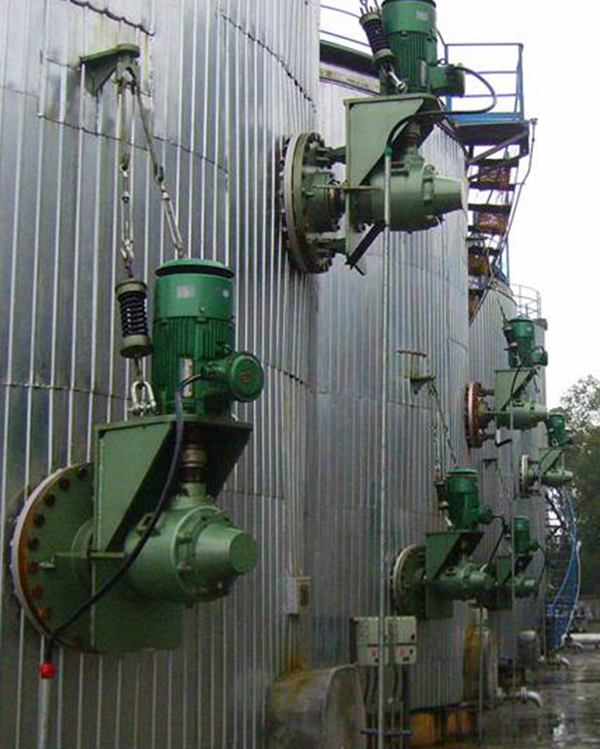

Side entry mixer is usually used in large reaction tanks and storage tanks to mixing medium. They are installed on the tank wall and generally need 2-4 sets for one tank. The axis direction can be horizontal or inclined.
The agitator is a very common tool in the field of chemistry.
It can help mix chemicals together for functions such as chemical reactions, dissolution and dispersion.
|Mixer type ||Side-entry mixer |
|Motor brand ||ABB or customized |
|Reducer brand ||SEW or customized |
|Medium ||Crude oil、waste water、FGD、pulp |
|Power ||0.37~110kw，Special can be customized |
|Material of impeller and shaft ||Carbon steel |
|Voltage/phase/frequence ||Customized |

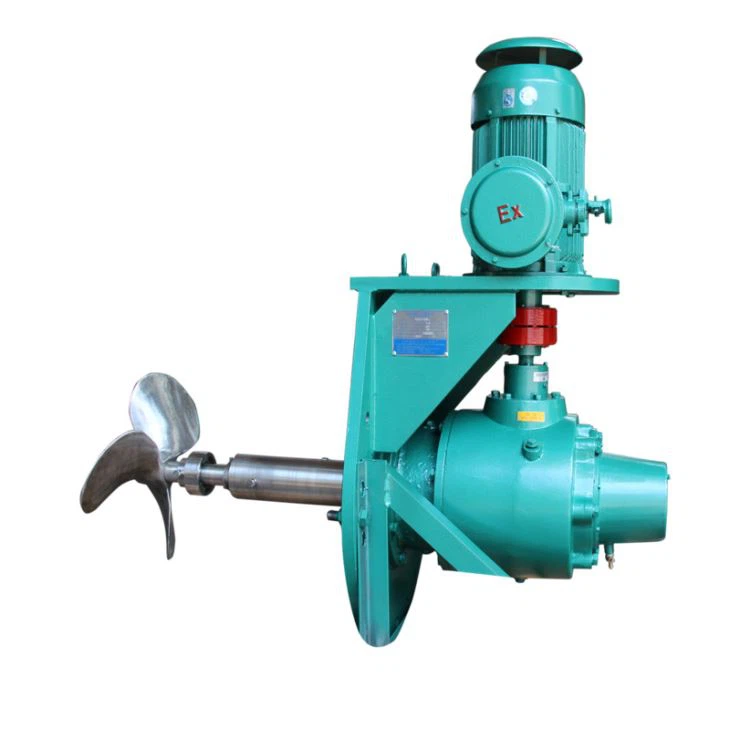

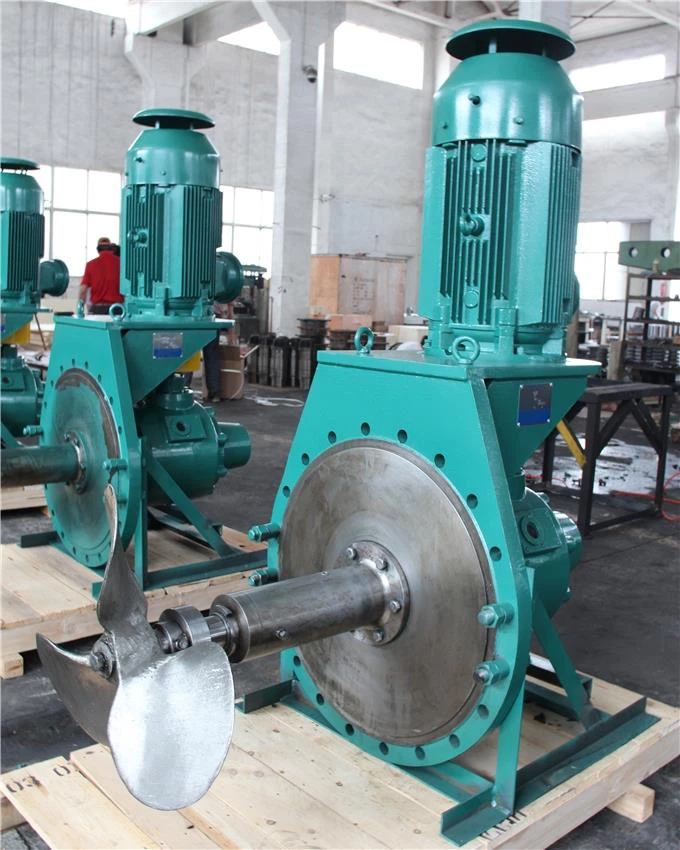

Heavy duty agitator usually consists of motor, reducer, bearing and stirring shaft & impeller, etc., which can adapt to different asphalt mixing systems and operating conditions.
Designed with direct connection structure.
Has compact structure, low energy consumption, convenient operation and installation, convenient maintenance and long service life.
The impeller adopts precision casting or stamping forming, with high precision, large thrust, simple and beautiful linear, and anti winding function.
Agitators are widely used in chemistry. For example,
In organic synthesis, agitators can help mix reactants and solvents to achieve chemical reactions.
In the pharmaceutical industry, agitators can help mix drugs and solvents and disperse drugs in solution.
In chemical analysis, agitators can help mix samples with reagents for quantitative analysis.
Click here to send inquiry!
Mixers can be customzied according to your requirements!
How to choose the right agitator?
Today, when petrochemicals are developing rapidly, it is a rare opportunity for the mixer to develop. How to buy a cost-effective agitator has become a problem for customers.
There are many types of mixing devices and the prices are different. We must first determine the size of the tank, as well as the amount of funds. Only by knowing these two conditions can we choose the right mixing device according to our needs.
After selecting the suitable side entry mixer, we can select the model based on our investment and the actual production required. Different models have different functions and the prices are different.
KEHENG has nearly 30 years of experience. Our company can provide field diagnostics and repairs. The technical team will provide various onsite maintenance options to assist in your mixing operations.
Installation: According to customer specifications
Onsite consultation & repair: KEHENG provide onsite repair diagnostic services. If the problem can not be solved on the scene, the equipment can be sent back to our Inspect & Repair Department.
Preventative maintenance: All machines have to pass strict inspection before they go out. KEHENG will provide diagnostic and benchmark tests to ensure peak performance of the mixing solution and equipment.
Other service: KEHENG can provide new mixing solutions and equipment for your Reconstruction Project.
KEHENG provide the most comprehensive analysis and options to repair top entry mixer drives, the Inspect & Repair Program provides:
1. Increased reliability and dependability
2. High quality repairs meeting stringent specifications
3. Extended your equipment life
All parts of the mixer drive are thoroughly cleaned and inspected to determine true root cause of failure. Detailed reporting is provided along with tiered options for repair. Customers choose the appropriate repairs for their operational needs. Warranties are available depending on the repair option chosen.
Common problems that can be remedied include:
1. Mechanical Fatigue
2. Upset Conditions
3. Shock Load
4. Process Change
5. Impeller Balance
1. All KEHENG customers will get support and suggestions before and after sales.
2. Service provided by KEHENG is aimed at helping customer choose the most suitable products.
3. KEHENG help customers use product correctly: PLAN、INSTALLATION、TRAINING、TROUBLE REMOVAL、MAINTENANCE AND REPAIRS、RENOVATION AND MODERMIZATION.
4. KEHENG offer: Supply of spare parts、technical development and the latest available technology、customer stock optimization and spare part recommendations.
KEHENG has a full staff of application engineers who have rich experience and extensive knowledge. Our technical team are composed of technical supporting engineers、product design and development engineers. They have the specialty knowledge and skill to provide responsive and reliable service and advice. They will be in conjunction with sales engineers to complete the communication. The application engineers can specify the type of drive, the drive ratio, the motor mounting requirements, the drive mounting requirements, special items like mechanical seals and motors, agitator shaft, impeller hub and impeller blade details.
If you need, KEHENG can support you the following trainings and instructions to get your staff qualified and familiarized with the characteristic features of the specific KEHENG equipment.
1. Operating training
2. Maintenance training
3. Process training
JiangSu KeHeng Petrochemical & Electrical Machinery Co., Ltd was founded in 1989. It is a high-tech enterprise, specialized in Professional R&D, Design, Manufacture and Installation. Mainly engaged in Petrochemical Heating Furnace, Waste Heat Recovery System, Power Plant Desulfurization Equipment, Waste Water Treatment System, Mixer etc. Products sold all over China and exported to Southeast Asia, Europe, Africa, The Middle East, Japan, India, Kazakhstan, Turkey, and many other countries.
KeHeng has Independent R&D center and perfect product testing, inspecting equipment. With years of constant innovation, It has been awarded more than 30 utility model patents and 5 invention patents by the State Intellectual Property Office. So far, KeHeng has become into qualified vendor in supply link of several large enterprises and industry groups, for example, PetroChina, Sinopec, CNOOC etc.
Occupying the Market with Product Quality, Gaining the Client with Corporate Reputation
Integrity- Our foundation of foothold; Development- The eternal pursuit of KeHeng.
All of our mixers are manufactured in specialized custom-built facilities to ISO9001 quality standards and used only high quality components in their construction.
Our professional technical team will design the most suitable mixer according to your requirement, which can achieve maximum value in use.
We assign dedicated project managers to ensure that every aspect of manufacturing,assembly and quality control is progressed to meet individual customer specifications.
All KEHENG customers will get support and suggestions before and after sales. We help customers use product correctly: PLAN、INSTALLATION、TRAINING、TROUBLE REMOVAL、MAINTENANCE AND REPAIRS、RENOVATION AND MODERMIZATION.
Q: Are you trading company or manufacturer?
A: We are manufacturer. Our factorie is in Jiangsu.
Q: How to customize agitators and mixers?
A: You can send us application parameter or fill out the form that we provided, then we will select or design the product that works best for you and your business.
Q: How long is production lead time?
A: Normally 30 days. If you have particular motor brand to choose, the lead time might vary.
Q: About the product warranty?
A: Normally, we provide 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
