Keheng top entry mixers and IBC mixers are industrial mixing equipment developed to meet the needs of different scenarios, covering the full range of mixing needs from large tanks to mobile ton-barrels. Top entry mixers have the core advantage of high-viscosity medium processing capabilities and are widely used in oil refining, chemical reactors, sewage treatment and other fields; IBC mixers are designed for 1000L container barrels, with quick installation and portability, suitable for food and medicine, paint blending, temporary storage and other scenarios. Both adopt a modular design and support customized impellers, materials and control systems to ensure uniform mixing, anti-sedimentation and efficient heat transfer under different working conditions.

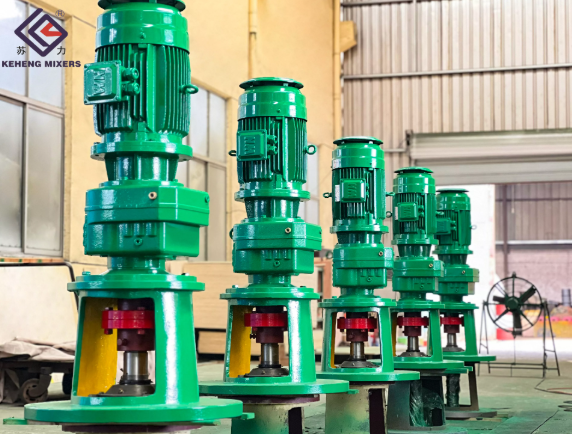

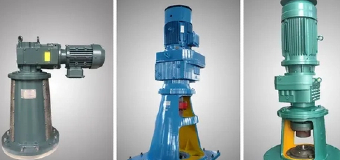

Top entry mixer
· Core Design and Performance
High-Viscosity Media Handling: Utilizing the patented "Top entry High-Viscosity Media mixer" (CN206853517U), the gear disc and staggered tooth design effectively prevent solid particle settling, making it suitable for high-density applications such as asphalt blending and crude oil storage.
Power System: Compatible with 0.75-110kW motors, with a speed range of 10-100rpm, and available with explosion-proof or variable frequency drive, it meets mixing needs ranging from low-viscosity liquids to high-viscosity pastes.
Material and Seals: Wetted parts are constructed of 316L stainless steel or duplex steel. A single mechanical seal (EN12756 standard) is standard, with an optional dual mechanical seal system supporting under-pressure maintenance.
Customized Impellers: Available in a variety of impeller types, including anchor, ribbon, and turbine, with diameters ranging from 200-2000mm. Fluid circulation paths can be optimized based on tank dimensions (e.g., a 16-meter diameter desulfurization tower).
· Patented Technology
The patented "Agitator Shaft Heating and Spraying System" (CN219186550U) uses a motorized telescopic rod for automatic cleaning, reducing manual intervention.
· Applications
Petrochemical: Crude oil storage tank sedimentation prevention, chemical reactor homogenization.
Environmental Protection: Aeration tank agitation in sewage treatment plants, slurry circulation in desulfurization absorption towers in power plants.
Papermaking: Pulp mixing (e.g., a custom 4-meter-long mixer shaft for a Vietnamese paper mill).
IBC mixer
· Core Design and Performance
Quick Installation and Portability: Features an adjustable-height agitator shaft (patent CN202321498931) that quickly connects to the ton-barrel lid with bolts, requiring no additional tools for installation.
Power Supply: Standard 0.25-0.75kW explosion-proof motor, 100-300rpm, supports variable frequency control, and is suitable for medium- and low-viscosity media such as paints and glues. Corrosion-resistant construction: The stainless steel frame (AISI 304/316L) and food-grade impeller meet FDA standards and can be used for preparing dairy and pharmaceutical suspensions.
Safety design: Equipped with a CE-certified leakage current switch, the motor and agitator shaft are connected via a rigid coupling, ensuring stable and shake-free operation.
·Patented Technology: The patented "Tonnage Drum Agitator Support Assembly" (CN202321498931) features a protective rod and forklift port design to ensure stable positioning of the drum during mixing.
· Applications:
Food and Pharmaceuticals: Homogenization of dairy products in tonnage drums and preparation of pharmaceutical suspensions.
Coatings: Paint blending and rapid mixing in temporary storage.
Temporary operations: Pre-mixing concrete at construction sites and mixing laboratory samples.
Packaging:
Top entry mixers: Packaged in shock-resistant wooden crates filled with pearl cotton and foam plastic. The impeller and shaft are individually protected and meet IPPC fumigation standards.
IBC mixers: Packaged separately (motor, bracket, impeller) in portable cartons with reinforced corners for easy transportation and on-site assembly.
Shipping:
The standard delivery time for orders is 45-60 days after contract signing. We support sea freight (wooden crates), air freight (modularized disassembly), and land transportation.
Export orders include a certificate of origin, material certification, and installation video to ensure quick commissioning.
JiangSu KeHeng Petrochemical & Electrical Machinery Co., Ltd is located in a modern Binjiang Port Garden City – Jiangyin, formerly JiangYin Petrochemical & Electrical Machinery Factory, founded in 1989. It’s "one hour traffic circle" in Shanghai, Suzhou and Nanjing. The transportation is very convenient and the geographical position is extremely superior.
The company's total assets is 120 million yuan, has more than 200 employees, factory plant covers an area of 3,0000 square meters.
