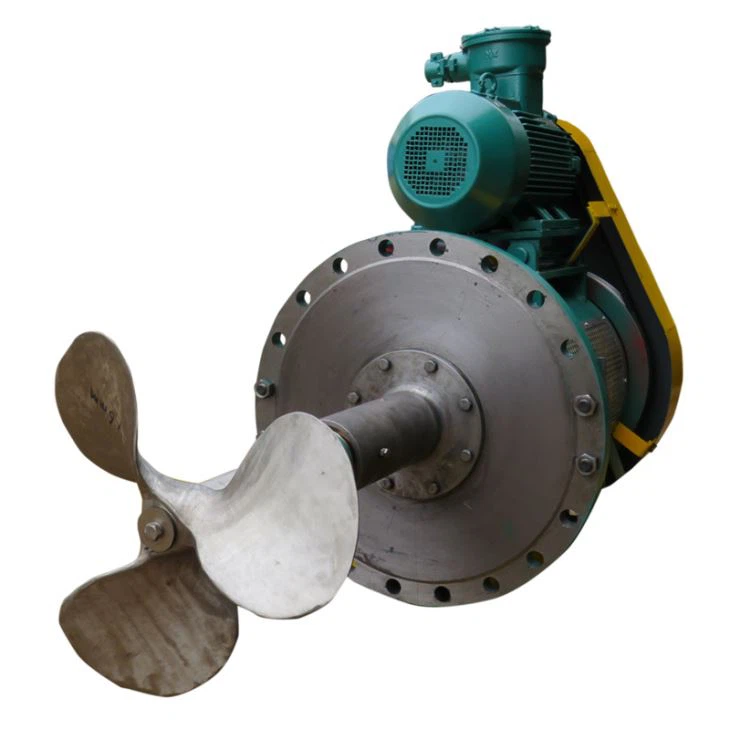

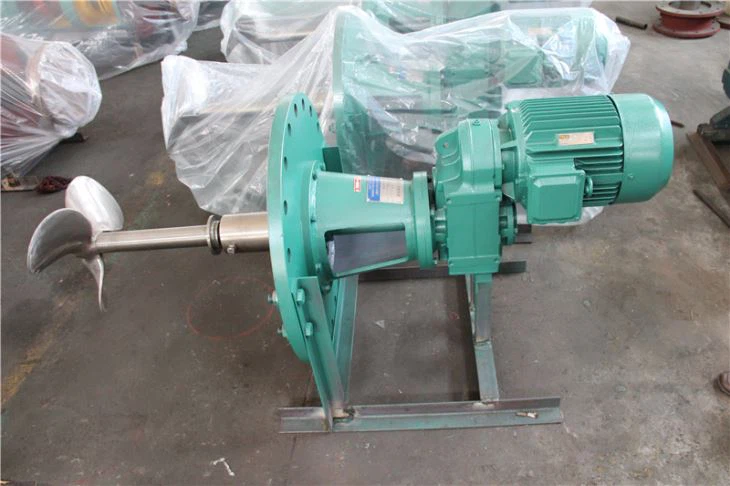

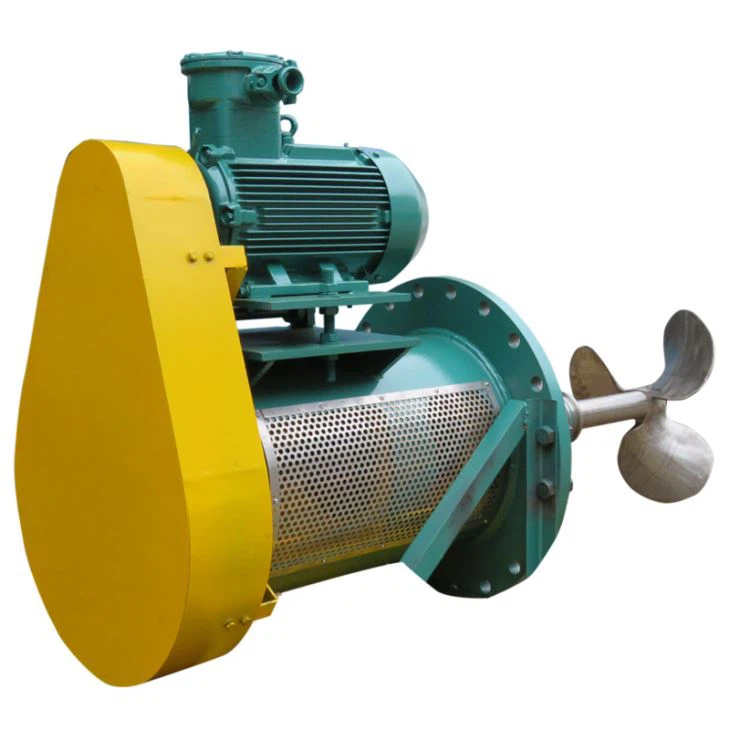

Side Entry Tank Mixer

Introduction of C-Type Side-entry mixer：

Installing a side-entry mixer in the oil tank, is used for mixing oils or other medium and then reach the purpose of harmonization, heat transfer, homogenization and prevention of sediment accumulation. Using this equipment has many advantages, such as small investment, convenient operation, high efficiency, low power consumption, low static electricity generated in medium and guarantee product quality.

C- Type Side-entry mixer can be installed in petroleum tank, lubricating tank, fuel oil drum, paraffin tank, asphalt tank (for heavy rubber asphalt, basic petroleum bitumen, A Grade asphalt) and some storage tanks for additive and other medium which need to be stirred.

Material

The material can be: Q235B, 45#, Carbon Steel with rubber, Carbon Steel with PO, Carbon Steel with PTFE, Carbon Steel with FRP, Carbon steel enamel, 304 SS, 316L SS, 2205, 904L Super Austenitic Stainless Steel, 1.4529

Notes: The material of all mixers’ parts can be custom-made according to local working condition, mixing medium and customer’s requirement.

2. Reducer code

F: Parallel axis reducer K:Bevel gear reducer

3. Mechanical seal code .

A: General mechnical seal B:Bellows assembly type mechanical seal

4. Auxiliary seal form code ,

I:0-Type seal holder II:Three jaw seal holder

5. Impeller Code G

6. 6. Motor Power (kw)

7. The code of material which contact with serous fluid

C1: Carbon Steel C2:304 C3:316L
