Designed specifically for industrial applications, Keheng Side entry mixer boasts exceptional durability and efficient mixing capabilities, making it widely used in the petrochemical, wastewater treatment, food processing, power plant desulfurization, and other fields. Its modular design allows for customized mixing solutions based on tank size, media characteristics (such as viscosity and corrosivity), and process requirements, ensuring uniform mixing, anti-sedimentation, and efficient heat transfer even under high-load conditions. Whether handling high-viscosity materials or corrosive liquids, Keheng mixer delivers stable performance with low energy consumption, significantly reducing maintenance costs and downtime.
· Core Design and Performance
Efficient Mixing: A propeller blade optimized for three-dimensional fluid dynamics (up to 2900mm in diameter) with a 30-degree hot-pressed arc design enhances fluid circulation and shear force, ensuring seamless mixing even in large tanks (such as a 16-meter diameter desulfurization tower).
Power System: Compatible with motors from 1.1-15kW, with a speed range of 30-300rpm, and available with explosion-proof or variable frequency drives to meet power requirements in various operating conditions.
Durable Materials: Wetted parts are constructed of AISI 316L stainless steel or duplex steel, offering excellent corrosion resistance and suitability for acidic and alkaline environments and food-grade applications.
Sealing Technology: Standard single mechanical seal (EN12756 standard), with optional double mechanical seals or sealing systems with emergency shut-off devices, enabling maintenance while the product is in operation, eliminating downtime for tank emptying.
· Patented Technology
Keheng's independently developed patented "Ultra-High Viscosity Media Agitator" (CN219186550U) combines a motorized telescopic boom with a heated spray system to significantly improve cleaning efficiency and reduce manual intervention.
· Applications
Industrial: Crude oil storage tank sedimentation prevention, asphalt blending, and chemical reactor mixing.
Environmental: Aeration tank agitation in sewage treatment plants and slurry circulation in desulfurization absorption towers in power plants.
Food and Pharmaceutical: Homogenization of dairy products and preparation of pharmaceutical suspensions (meeting sanitary design requirements).
Packaging: Packaged in shockproof wooden boxes filled with pearl cotton and foam plastic, with reinforced corner guards to protect the equipment from damage during long-distance transportation.
Transportation: Available by sea, air, and land. Standard delivery time for orders is 30 days after contract signing, with expedited service available upon request.Orders using imported reducer generally have a delivery time of 90 days after contract signing.
Documentation: Material certificates, test reports, and installation drawings are provided with the shipment. Export orders will include a certificate of origin and fumigation certificate (IPPC compliant).

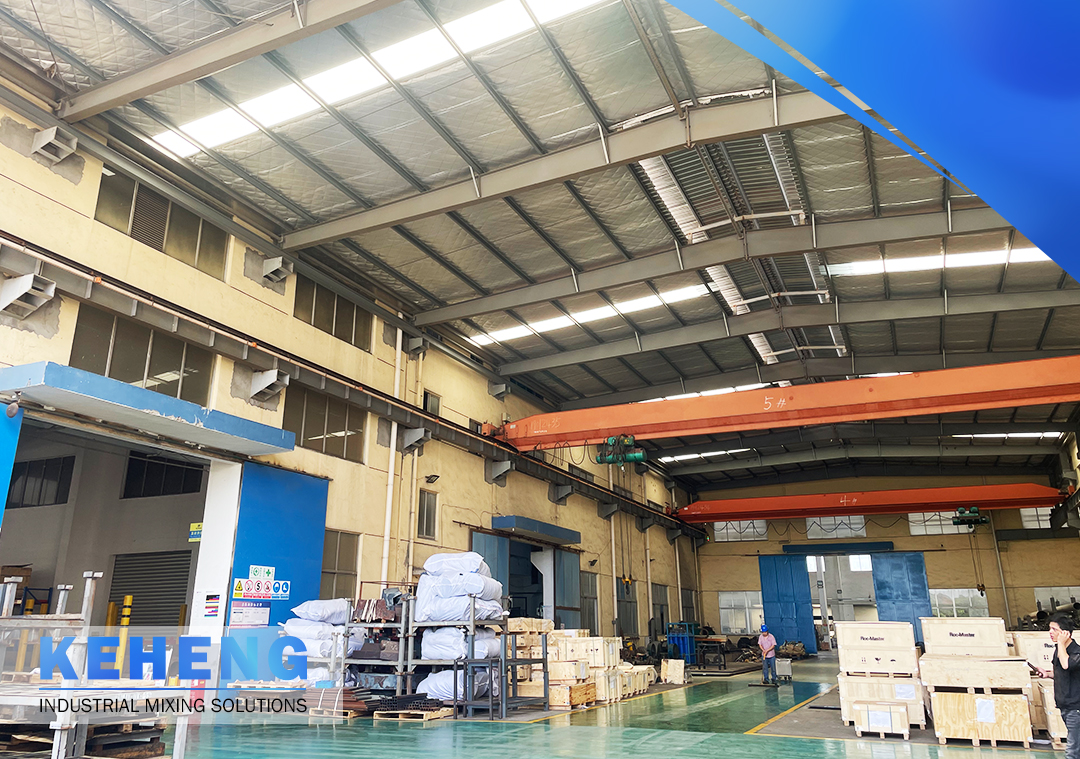

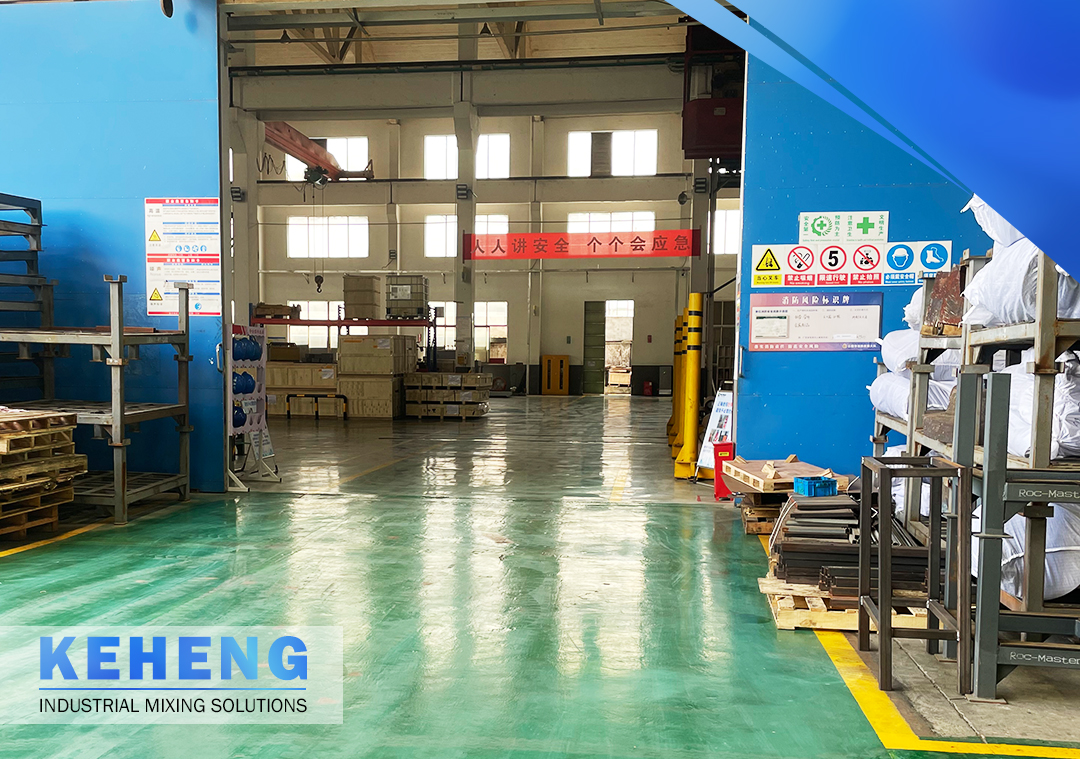

JiangSu KeHeng Petrochemical & Electrical Machinery Co., Ltd is located in a modern Binjiang Port Garden City – Jiangyin, formerly JiangYin Petrochemical & Electrical Machinery Factory, founded in 1989. It’s "one hour traffic circle" in Shanghai, Suzhou and Nanjing. The transportation is very convenient and the geographical position is extremely superior.
The company's total assets is 120 million yuan, has more than 200 employees, factory plant covers an area of 3,0000 square meters
Designed specifically for industrial applications, Keheng Side entry mixer boasts exceptional durability and efficient mixing capabilities, making it widely used in the petrochemical, wastewater treatment, food processing, power plant desulfurization, and other fields. Its modular design allows for customized mixing solutions based on tank size, media characteristics (such as viscosity and corrosivity), and process requirements, ensuring uniform mixing, anti-sedimentation, and efficient heat transfer even under high-load conditions. Whether handling high-viscosity materials or corrosive liquids, Keheng mixer delivers stable performance with low energy consumption, significantly reducing maintenance costs and downtime.
· Core Design and Performance
Efficient Mixing: A propeller blade optimized for three-dimensional fluid dynamics (up to 2900mm in diameter) with a 30-degree hot-pressed arc design enhances fluid circulation and shear force, ensuring seamless mixing even in large tanks (such as a 16-meter diameter desulfurization tower).
Power System: Compatible with motors from 1.1-15kW, with a speed range of 30-300rpm, and available with explosion-proof or variable frequency drives to meet power requirements in various operating conditions.
Durable Materials: Wetted parts are constructed of AISI 316L stainless steel or duplex steel, offering excellent corrosion resistance and suitability for acidic and alkaline environments and food-grade applications.
Sealing Technology: Standard single mechanical seal (EN12756 standard), with optional double mechanical seals or sealing systems with emergency shut-off devices, enabling maintenance while the product is in operation, eliminating downtime for tank emptying.
· Patented Technology
Keheng's independently developed patented "Ultra-High Viscosity Media Agitator" (CN219186550U) combines a motorized telescopic boom with a heated spray system to significantly improve cleaning efficiency and reduce manual intervention.
· Applications
Industrial: Crude oil storage tank sedimentation prevention, asphalt blending, and chemical reactor mixing.
Environmental: Aeration tank agitation in sewage treatment plants and slurry circulation in desulfurization absorption towers in power plants.
Food and Pharmaceutical: Homogenization of dairy products and preparation of pharmaceutical suspensions (meeting sanitary design requirements).
Packaging: Packaged in shockproof wooden boxes filled with pearl cotton and foam plastic, with reinforced corner guards to protect the equipment from damage during long-distance transportation.
Transportation: Available by sea, air, and land. Standard delivery time for orders is 30 days after contract signing, with expedited service available upon request.Orders using imported reducer generally have a delivery time of 90 days after contract signing.
Documentation: Material certificates, test reports, and installation drawings are provided with the shipment. Export orders will include a certificate of origin and fumigation certificate (IPPC compliant).
JiangSu KeHeng Petrochemical & Electrical Machinery Co., Ltd is located in a modern Binjiang Port Garden City – Jiangyin, formerly JiangYin Petrochemical & Electrical Machinery Factory, founded in 1989. It’s "one hour traffic circle" in Shanghai, Suzhou and Nanjing. The transportation is very convenient and the geographical position is extremely superior.
The company's total assets is 120 million yuan, has more than 200 employees, factory plant covers an area of 3,0000 square meters
